Leupold LTO-Quest HD Handheld Thermal Viewer with LCD Display, 15Hz, Gray/Black
See all Leupold items

Leupold LTO-Quest HD Handheld Thermal Viewer with LCD Display, 15Hz, Shadow Gray/Black

SKU: LD173882

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-07-17T08:35:27

Rated 3 out of 5

You have my answer

You know it’s a good product,,,,what bothers me is ,,,,it didn’t come with usb cable or charger for it,,,when it states it was to be in the box ,,,,only strap to carry it....!!!!!!!…what’s up with that ???????

Richard M.

2018-03-04T19:00:00

Rated 5 out of 5

This product is flat out awesome. The clarity is off the

This product is flat out awesome. The clarity is off the charts.

flipper

Leupold LTO-Quest Thermal Viewer Specifications

  • Array Configuration

    320 x 240 Uncooled VOx micro-bolometer

  • Frame Rate

    15 Hz

  • Sensitivity

    <0.1 Degree C (<32.18 Degree F) @ F/1

  • Temperature Range

    Detection Range: -40 to 626 Degree F (-40 to 330 Degree C)
    Accuracy @ 25 Degree C (77 Degree F): Greater of 9 Degree F or 5% (5 Degree C or 5%)

  • Spectral Response

    7.5 - 14 micro m

  • Display

    2.4" TFT Color LCD

  • Display Resolution

    206 x 156 QVGA

  • Display Angle

    >70 Degree

  • Contrast Ratio

    500:1

  • Magnification

    1-4x digital zoom

  • Lens System

    4mm, f/1.2, AR-coated chalcogenide glass

  • Field of View

    32 Degree

  • Eye Relief

    Unlimited

  • Minimum Focus Distance

    6" (150mm)

  • Video Output

    No

  • External Memory

    microSD slot: up to 32GB

  • Image Format

    Image Format: PNG

  • File System

    File System: FAT32

  • Date/Time Stamp

    Yes

  • Reticle

    Digital reticle

  • Ports

    Micro-USB port

  • PC Compatibility

    Windows, MAC OS 9 & X, Linux

  • Language Support

    English, Spanish, French, German

  • Built-in Light

    Type: LED
    Hi Mode: 300 lumens
    Low Mode: 120 lumens

  • Battery / Runtime

    1x 1900 mAh polymer lithium-ion battery
    Camera Only: 10 hours, Camera & Flashlight: 2 hours, In Storage (off): 60 days

  • Weatherproofing

    Water- and dust-resistant

  • Humidity

    10 - 95%, non-condensing

  • Temperature Tolerance

    Operating Temperature: 14 to 149 Degree F (-10 to 65 Degree C)
    Storage Temperature: -40 to 131 Degree F (-40 to 55 Degree C)
    Battery Charge Temperature: 32 to 113 Degree F (0 to 45 Degree C)

  • Shock

    3.3' (1m) drop

  • Dimensions

    5 x 2.4 x 1.2" (12.7 x 6.1 x 3cm)

  • Weight

    6.25 oz (177.2g)

  • UPC Code

    030317017590

About Leupold LTO-Quest Thermal Viewer

FEATURED REVIEWS

This product is flat out awesome. The clarity is off the

By flipper

This product is flat out awesome. The clarity is off the charts.

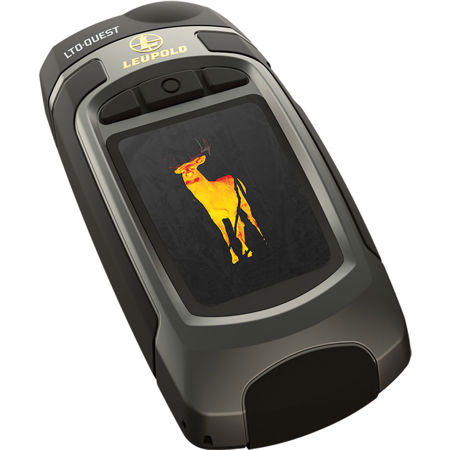

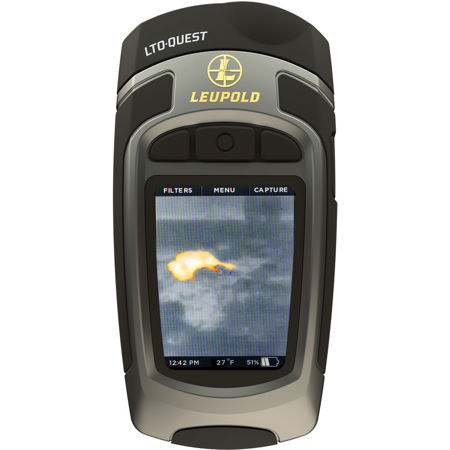

The Leupold LTO-Quest HD is an advanced thermal imaging viewer and camera with a built in 300 lumen dual intensity flashlight. The rugged, rubberized body is small enough to fit in your pocket, and light enough that it won't slow you down in the field. Featuring a 320x240 thermal sensor with a 32 Degree field-of-view, the LTO-Quest HD can detect a heat signature out to 750 yards using any one if its 8 color palettes. The micro USB port is used to both charge the LTO-Quest HD and download any images that are stored on the included removable micro SD card.

The Leupold LTO-Quest HD is Designed, Machined, and Assembled in the United States.

Leupold LTO-Quest Thermal Viewer Features

  • 320x240 Uncooled VOx Micro-Bolometer
  • 206x156 QVGA Display
  • 1-4X Digital Zoom
  • Built-in LED Light
  • Water and Dust Resistant
  • 32 Degree Field of View

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 320x240 Uncooled VOx Micro-Bolometer
  • 206x156 QVGA Display
  • 1-4X Digital Zoom
  • Built-in LED Light
  • Water and Dust Resistant
  • 32 Degree Field of View

What's in the box:

  • LTO-Quest HD Thermal Viewer 15Hz (Shadow Gray/Black)
  • Wrist Lanyard
  • USB Cable
  • Micro SD Card
  • Power Adapter
  • Leupold 5 Year Limited Electronics Warranty
