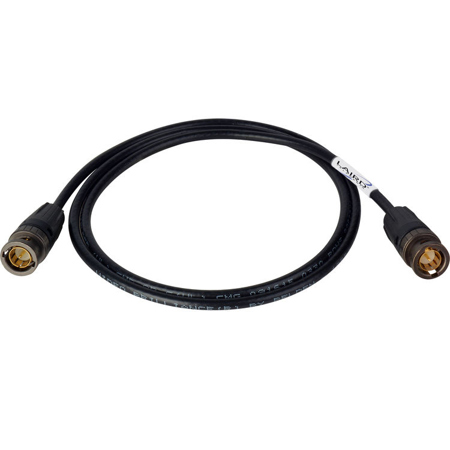

Laird 15' UHD Cable Assembly with Neutrik rearTWIST BNC Connectors and Belden Mini RG59 1855A for 4K/8K Video Applications, 23AWG

Bring your 4K and 8K video applications to life with the Laird RTBNC-1855-015 UHD Cable Assembly. This high-quality, 15-foot cable is equipped with Neutrik rearTWIST UHD BNC connectors and Belden Mini RG59 1855A, specifically designed to handle extended bandwidth for ultra-high-definition video transmissions.

The Neutrik rearTWIST UHD BNC connectors provide increased headroom and an additional return loss reserve. This unique feature compensates for potential impedance deviations that may occur due to cable bending, incorrect connector assembly, or faulty connection interfaces, ensuring uninterrupted signal transmission.

The rear twist technology simplifies the insertion and removal of recessed BNC panel connectors, making it an effortless task to interface with your patch bay. There's no need for a special BNC removal tool, as the rear boot twist functionality takes care of it all.

The assembly is completed with a 23AWG Belden sub-miniature coaxial cable. This durable cable features a solid .023" bare copper conductor, gas-injected foam HDPE insulation, and a Duofoil plus tinned copper braid shield with 95% coverage. All these are encased in a flexible PVC jacket, providing both protection and flexibility.

This versatile UHD Cable Assembly is not only reliable but also customizable, with custom lengths available upon request. It's the perfect solution for transmitting high-definition video signals in a variety of professional video applications.
