Laird 250' UHD Cable Assembly with Neutrik rearTWIST BNC Connectors and Belden Mini RG59 1855A for 4K/8K Video Applications, 23AWG
SKU: LD1855250
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection

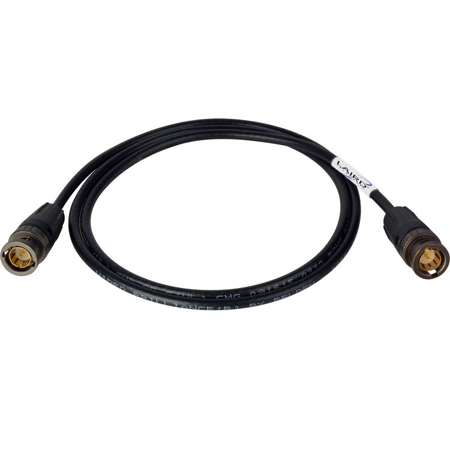

About Laird 250' UHD Cable Assembly, Neutrik rearTWIST BNC & Belden Mini RG59 1855A
The Laird RTBNC-1855-250 4K/8K UHD Cable Assembly with Neutrik rear TWIST UHD BNC connectors & Belden Mini RG59 1855A is built for extended bandwidth for 4K and 8K video applications. Neutrik's rear TWIST UHD BNC achieves increased headroom and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. The rear twist technology simplifies insertion and removal of recessed BNC panel connectors and allows for easy patch bay interface. No special BNC removal tool is required; simply use the rear boot twist.
The 23AWG Belden sub-miniature coaxial cable features a solid .023 " bare copper conductor, gas-injected foam HDPE insulation, Duofoil + tinned copper braid shield (95% coverage) and a PVC jacket. Custom lengths available.
Laird 250' UHD Cable Assembly, Neutrik rearTWIST BNC & Belden Mini RG59 1855A Features
- High frequency optimized contact pin and insulator for UHD transmissions
- Improved return loss values at high frequencies
- Extended bandwidth for 4K and 8K video applications
- For recessed panel mount BNC connections
- Rear twist design is patch bay friendly
- No special BNC removal tool required
- Fully compatible with conventional BNC chassis connectors
- UL CMR cable
- Male BNC 75 Ohm
- Bayonet Locking Device
- Jacket Crimping
- Brass Contacts
- Antraloy Shell Plating
- Sub-miniature coaxial 1855
