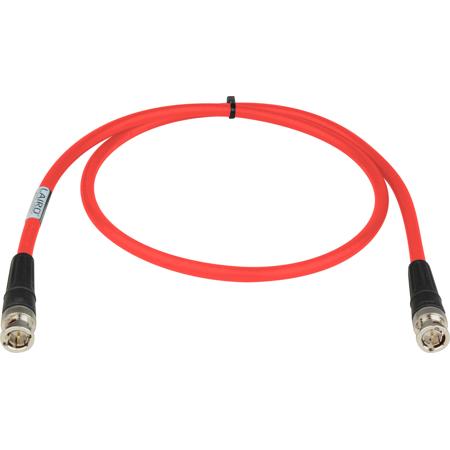

Laird 3' BNC to BNC 12G-SDI/4K UHD Single Link RG6 Cable, Red
See all Laird items

Laird 3' BNC to BNC 12G-SDI/4K UHD Single Link RG6 Cable, Red

SKU: LD4694RBBRD3 MFR: 4694R-B-B-RD-003
Be the first to review this itemAsk a Question
$31.95
$36.49
Save: $4.54 (12%)
Earn VIP Reward Points

Key Features

  • Ensure reliable 4K UHD video with this 3' BNC to BNC RG6 coaxial cable.
  • Experience superior signal quality with silver-plated copper conductor cable.
  • Enjoy durable connections; Amphenol connectors tested to 500 cycles!
  • Perfect for 12G-SDI applications, supporting transmissions up to 258 feet.
  • Shielded to minimize interference, delivering clean, clear video signals.
  • Red coaxial cable simplifies identification in complex A/V setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Laird 3' BNC to BNC 12G-SDI/4K UHD Single Link RG6 Cable, Red Specifications

  • Insulation

    Gas-injected Foam HDPE

  • Conductor

    Silver-plated Copper

  • Outer Shield

    Duofoil Bonded to the Core + Tinned Copper Braid Shield

  • Conductor DC Resistance:

    20.9984 DCR@20 Degree C(Ohm/1000')

  • Outer Shield Resistance

    9.187 DCR@20 Degree C(Ohm/1000')

  • Nominal Inductance

    0.347786 MH/ft

  • Nominal Impedance

    75 Ohm

  • Nominal Capacitance Conductor to Shield

    52.168pF/m

  • Transmission Distance

    12G signals up to 258', 6G up to 375', and 3G up to 540'

  • Amphenol Connectors

    Meet SMPTE Standards for 12G-SDI
    Bayonet Lock
    Durability: 500 Cycles

  • Length

    3' (0.91m)

About Laird 3' BNC to BNC 12G-SDI/4K UHD Single Link RG6 Cable, Red

It's time to elevate your video production setup with Laird's 3' BNC to BNC 12G-SDI/4K UHD Single Link RG6 Cable in striking red. This next-generation RG6 BNC cable effortlessly surpasses the 12GHz 4K UHD coax barrier, designed to handle 12GHz 4K UHD signals over impressive distances of up to 250 feet (and 3G-SDI up to 540 feet).

These handcrafted assemblies are built with the 4694R 4K Ultra-High-Definition RG6 coaxial cable, specifically engineered for 12G-SDI. Simplify your studio setup with these cables that eliminate the need for running dual link and quad link cables. With Laird's BNC cables, one cable is all you need to get the job done!

Ready to meet the high bandwidth 12G-SDI signal and data serial interface requirements of today's advanced video gear, these cables provide the critical link between your switchers, cameras, and other 4K video equipment. The 4694R Series is the 12G-SDI equivalent of Belden's renowned 1694A cable, boasting a silver-plated copper center conductor for optimal signal transmission.

Ideal for installations in professional studios, large stadiums, and live event venues, these cables are the perfect choice for your video production infrastructure. Plus, with the option for custom lengths, you can tailor your cabling to perfectly fit your specific needs. Upgrade your video setup with Laird's 3' BNC to BNC 12G-SDI/4K UHD Single Link RG6 Cable and experience the difference in quality and performance.

Laird 3' BNC to BNC 12G-SDI/4K UHD Single Link RG6 Cable, Red Features

  • Designed for 12GHz, 4K UHD Signal Transmission
  • Durable 18AWG, Precision Coax Cable
  • High Quality Amphenol Connectors
  • Maximize Broadcast Signal Integrity
  • Meets: SMPTE ST 2082-1 (12GB/s UHDTV), ST-2801-1 (6GB/s UHDTV), and ST 425.4 (3GB/s UHDTV)

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure reliable 4K UHD video with this 3' BNC to BNC RG6 coaxial cable.
  • Experience superior signal quality with silver-plated copper conductor cable.
  • Enjoy durable connections; Amphenol connectors tested to 500 cycles!
  • Perfect for 12G-SDI applications, supporting transmissions up to 258 feet.
  • Shielded to minimize interference, delivering clean, clear video signals.
  • Red coaxial cable simplifies identification in complex A/V setups.

What's in the box:

  • Laird 3' BNC to BNC 12G-SDI/4K UHD Single Link RG6 Cable (Red)
  • Laird 1 Year Limited Warranty
