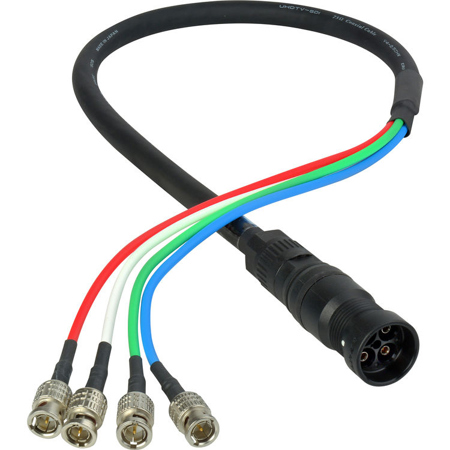

Laird 15' 4K UHD Canare 3G HD-SDI Coax MDF-BNC 4-Channel DIN Female to BNC Camera Breakout Cable

SKU: LD4KF4BNC015 MFR: 4KMDF-4BNC-015
Earn VIP Reward Points

Key Features

  • Capture crystal-clear 4K UHD video with this reliable 15' breakout cable.
  • Enjoy stable streaming & low latency thanks to Canare 3G HD-SDI coax cable.
  • This video capture cable features a durable nylon resin for superior shielding.
  • Experience good compatibility with DIN female to BNC connectors for cameras.
  • Easy setup with a 4-channel DIN to BNC breakout, simplifying your workflow.
  • Get affordable price without sacrificing quality in your video capture setup.
See More Product Details
Special Order Item?Estimated to Ship: 08/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$12.99

2 Year

$25.99

3 Year

$37.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Laird 15' 4K UHD 3G HD-SDI 4-Channel DIN Female to BNC Camera Breakout Cable Specifications

  • Cable Type

    Canare V4-2.5 CHW 4-Channel 4K 75Ohms Coaxial Cable

  • Length

    15' (4.57m)

  • Shielding

    Nylon Resin

  • Connectors

    1x 4-Channel DIN 1.0/2.3 Female to 4x Canare BNC

  • Return Loss

    20dB at 3GHz

  • Weight

    2.55lbs (1.16kg)

About Laird 15' 4K UHD 3G HD-SDI 4-Channel DIN Female to BNC Camera Breakout Cable

Take your video production to the next level with the 15' 4K UHD Canare 3G HD-SDI Coax MDF-BNC 4-Channel DIN Female to BNC Camera Breakout Cable. This high-performance cable is designed to facilitate quick and efficient connections of 4 channels of 3G HD-SDI signals for 4K/UHD video formats.

Constructed with Canare's 4-channel, V4-2.5CHW flexible coaxial cable, this Laird-assembled cable allows for a seamless breakout to 4 Canare BNC or 4 DIN connectors. The Canare male connector, MDM-V4C25HW, is expertly designed to mate with the MDF-V4JRU panel mount receptacle, which features a 4 DIN pass-through on the back side. This design not only enhances your connectivity but also optimizes your rack space.

The 15' 4K UHD Canare 3G HD-SDI Coax MDF-BNC 4-Channel DIN Female to BNC Camera Breakout Cable is a testament to Laird's commitment to keeping everything in line and organized. It's available in a variety of lengths and is compatible with the Canare MDF-V4JRU 4K DIN 1.0/2.3 4-channel chassis mount connector.

This cable boasts a quick connect and disconnect feature, and it's capable of transmitting multiple 3G-SDI signals to 4K/UHD formats. The Canare cable features a solid and lightweight nylon resin body, and the push-pull locking Canare coax connectors come with protective rubber boots for added durability.

The high-performance Canare BCP-B25HW BNC or 4 DCP-C25HD DIN connectors ensure reliable connections, and the cable is proudly made in the USA in a Canare trained fiber shop. The Canare V4-2.5CHW 4-Channel 4K 75Ohms Coaxial Cable, 4 DIN 1.0/2.3 connectors, and MDF-V4JRU that accepts MDM-V4C25HW and also DIN 1.0/2.3 plugs are all part of this comprehensive package.

Ideal for high-density 3G-SDI applications, mobile trucks, fly packs, studios, and 4K transmission, this cable is designed to consolidate HD-SDI lines, making it a valuable asset for any professional video production setup.

Laird 15' 4K UHD 3G HD-SDI 4-Channel DIN Female to BNC Camera Breakout Cable Features

  • High-performance 15' 4K UHD Canare 3G HD-SDI Coax MDF-BNC 4-Channel DIN Female to BNC Camera Breakout Cable for professional video production
  • Quick connect and disconnect feature for efficient setup and breakdown
  • Canare V4-2.5CHW 4-Channel 4K 75Ohms Coaxial Cable for superior signal transmission
  • Compatible with Canare MDF-V4JRU 4K DIN 1.0/2.3 4-channel chassis mount connector for increased connectivity
  • Ideal for high-density 3G-SDI applications, mobile trucks, fly packs, studios, and 4K transmission
  • Made in the USA in a Canare trained fiber shop, ensuring quality and reliability

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Capture crystal-clear 4K UHD video with this reliable 15' breakout cable.
  • Enjoy stable streaming & low latency thanks to Canare 3G HD-SDI coax cable.
  • This video capture cable features a durable nylon resin for superior shielding.
  • Experience good compatibility with DIN female to BNC connectors for cameras.
  • Easy setup with a 4-channel DIN to BNC breakout, simplifying your workflow.
  • Get affordable price without sacrificing quality in your video capture setup.

What's in the box:

  • Laird 15' 4K UHD Canare 3G HD-SDI Coax MDF-BNC 4-Channel DIN Female to BNC Camera Breakout Cable
  • Laird Lifetime Limited Warranty
