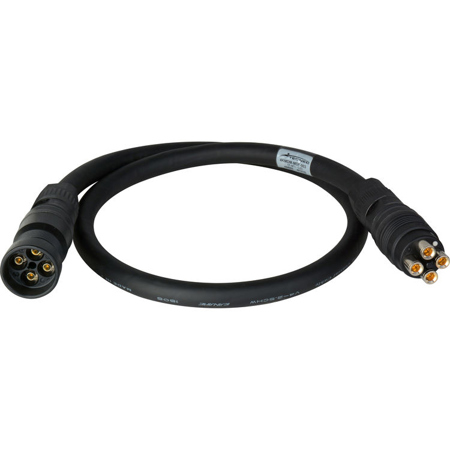

Laird 15' 4K UHD Canare 3G HD-SDI Coax MDM-MDF 4-Channel DIN Male to Female Camera Cable

4-3G HD-SDI Signal Channel Quick Connect System for 4K/UHD Video Formats
One step, quick-connect Laird coax Canare cable assemblies connect 4 channels of 3G HD-SDI signals for 4K/UHD video formats. The Laird cables are assembled with Canare 4 channel, V4-2.5CHW flexible coaxial cable and Canare 4K-DIN coax connectors. The Canare male connector, MDM-V4C25HW is designed to mate with the MDF-V4JRU panel mount receptacle which features a 4 DIN pass-through on the back side to increase your connectivity but not your rack space. Laird 4K UHD Canare camera cables assemblies make quick work of keeping everything in line and organized. Available in a variety of lengths. Use with the Canare MDF-V4JRU 4K DIN 1.0/2.3 4-channel chassis mount connector.

• Quick connect and disconnect
• Multiple 3G-SDI signals to 4K/UHD formats
• Compact Canare cable with solid and lightweight nylon resin body
• Push-pull locking Canare MDM-V4C25HW male connectors with protective rubber boots
• Made in the USA in a Canare trained fiber shop
• Canare V4-2.5CHW 4-Channel 4K 75Ohms Coaxial Cable
• MDF-V4JRU accepts MDM-V4C25HW and also DIN 1.0/2.3 plugs

Applications
• High density 3G-SDI applications
• Mobile trucks
• Fly packs
• Studios
• 4K transmission
• Consolidate HD-SDI lines
