Laird Canare 25' L-2.5CHD 12G-SDI 4K UHD Mini-RG59 BNC Straight to BNC RA Cable
See all Laird items

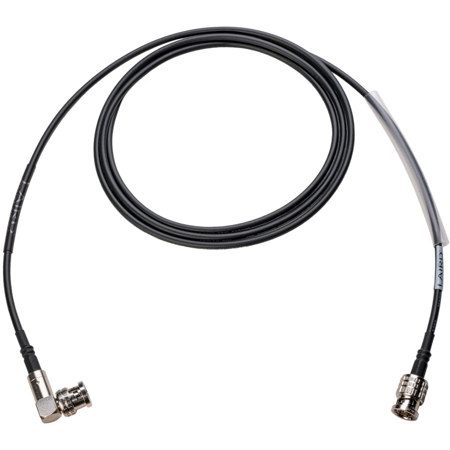

Laird Canare 25' L-2.5CHD 12G-SDI 4K UHD Flexible Mini-RG59 BNC Straight to BNC Right Angle Cable

SKU: LDL25CHDBBA MFR: L25CHD-B-BA-25
Be the first to review this itemAsk a Question
$46.95
Earn VIP Reward Points

Key Features

  • Experience pristine signal quality with this 25' Canare 12G-SDI coaxial cable.
  • Achieve reliable 4K UHD video with our flexible mini-RG59 BNC to BNC cable.
  • Ensure stable connections using this durable coaxial cable with robust shielding.
  • Enjoy versatile connectivity with straight to right angle BNC connectors on this cable.
  • This 75 Ohm impedance coaxial cable is ideal for professional video applications.
  • Rated for wide temperature use, this coaxial cable guarantees performance in any environment.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Laird L-2.5CHD Specifications

General

General

Jump to...

  • Outer Diameter

    0.30" (7.7mm)

  • Inner Conductor Construction

    1/0.59A

  • Inner Conductor Outer Diameter

    0.023" (0.59mm)

  • Inner Conductor AWG

    23

  • Insulation Outer Diameter

    0.03" (1mm)

  • Insulation Thickness

    0.10" (2.59mm)

  • Outer Conductor 1 Thickness

    0.002" (0.06mm)

  • Outer Conductor 1 Outer Diameter

    0.10" (2.7mm)

  • Outer Conductor 2 Construction

    16/ 7/0.12TA

  • Outer conductor 2 Pitch

    <=0.94" (<=24mm)

  • Outer Conductor 2 Outer Diameter

    0.12" (3.2mm)

  • Outer Conductor 2 Coverage

    95%

  • Sheath Thickness

    0.01" (0.5mm)

  • Rated Voltage

    AC 60Vrms

  • Temperature Range

    -4 Degree F to 167 Degree F (-20 Degree C to 75 Degree C)

  • DC Resistance

    Inner Conductor : <=66.9 Ohm/km
    Outer Conductor: <=16.9 Ohm/km

  • Insulation Resistance

    >=1000M Ohm-km

  • Characteristic Impedance

    75 +/-3 Ohm

  • Nom Capacitance

    54.5nF/km (1kHz)

  • Tensile Strength

    >=13.8 MPa

  • Elongation

    >=150%

  • Permission Tension

    <=18 N

  • Bend Radius

    Installed: 1.81" (46mm)
    Flexing: 4.54" (115.4mm)

Right Angle BNC Connector

Jump to...

  • Nom. Impedance

    75 Ohm unbalanced

  • Insulation Resistance

    1000 Ohm or more

  • Contact Resistance

    Between External Contacts: 3 mOhm or less
    Between Center Contacts: 6 mOhm or less

  • Return Loss

    -26.4 dB or more (-3 GHz)
    -20 dB or more (-6 GHz)
    -10 dB or more (-12 GHz)

  • Operating Temperature

    -40 Degree F to 248 Degree F (-40 Degree C to 120 Degree C)

Straight BNC Connector

Jump to...

  • Gender

    Plug

  • Nom. Impedance

    75 Ohm unbalanced

  • Insulation Resistance

    5000M Ohm or more

  • Contact Resistance

    Between External Contacts: 3 mOhm or less
    Between Center Contacts: 6 mOhm or less

  • Return Loss

    26.4dB or more

  • Operating Temperature

    -40 Degree F to 185 Degree F (-40 Degree C to 85 Degree C)

Physical

Jump to...

  • Material

    Inner Conductor: Annealed Copper
    Insulation: Foamed Polyethylene
    Outer Conductor 1: Aluminum Tape
    Outer Conductor 2: Tinned Annealed Copper
    Sheath: Flame Retardant Polyvinyl Chloride

  • Length

    25' (7.6m)

  • Weight

    0.27 oz/ft (2.6kg/100m)

About Laird L-2.5CHD

Utilizing Canare's L-2.5CHD low-profile Mini-RG59 style coax, Laird delivers the perfect right angle BNC cable for camera rigs and rack components where space is tight and superior strain relief will improve the life of your cable. Laird delivers the most advanced BNC coaxial cables on the market for 12G / 4K UHD applications in broadcast TV, sports, live events, and commercial production workflows. These cables are ready to meet the highest broadcast standards and are 100% sweep tested to 12GHz to conform to SMPTE standards all the way up to SMPTE 2082-1.

The Right Angle BNC connector allows for a stress reducing installation on the cable and connector in tight spaces. This design also helps prevent cable bending or kinking. Their compact design also improves cable routing and organization for cleaner, more professional installs in racks and patching scenarios. The Canare L-2.5CHD cable is thin, flexible and light making these cables perfect for outside broadcast production trucks and rigs.

Laird L-2.5CHD Features

  • Ideal for 12G-SDI Distribution
  • High Quality Canare Components
  • Super Low Loss Coax Cable
  • Easy Finger Grip Connectors
  • Superior Pull Strength
  • Cable & Connectors Meet SMPTE 292M & 424M Compliance

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience pristine signal quality with this 25' Canare 12G-SDI coaxial cable.
  • Achieve reliable 4K UHD video with our flexible mini-RG59 BNC to BNC cable.
  • Ensure stable connections using this durable coaxial cable with robust shielding.
  • Enjoy versatile connectivity with straight to right angle BNC connectors on this cable.
  • This 75 Ohm impedance coaxial cable is ideal for professional video applications.
  • Rated for wide temperature use, this coaxial cable guarantees performance in any environment.

What's in the box:

  • Laird Canare 25' L-2.5CHD 12G-SDI 4K UHD Flexible Mini-RG59 BNC Straight to BNC Right Angle Cable
  • Laird 1 Year Limited Warranty
