Leader LV5490 Quad Multi Format 4K 3G-SDI Waveform Monitor with Eye Pattern and Jitter, 2x 4K Signals
SKU: LDRLV5490E
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Q&A
About Leader LV5490

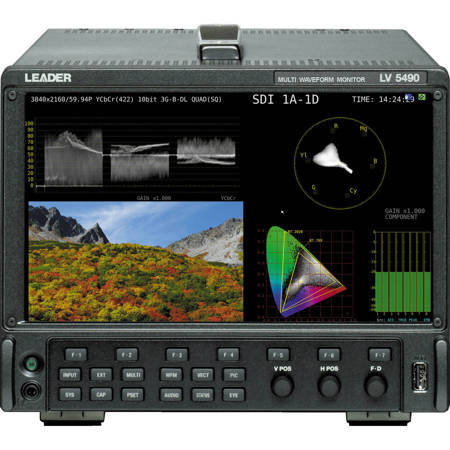

The Leader LV5490E Multi Format 4K 3G-SDI Waveform Monitor features a 1920 x 1080 widescreen LCD display capable of displaying up to two 4K 3G-SDI input signals simultaneously. It also allows you to monitor eye pattern and jitter measurements. It allows the monitor to measure the eye pattern and jitter of the SDI signal.
Leader LV5490 Features
- 4K video format compliance for Digital Cinema (4096 x 2160) or Broadcast (3840 x 2160)
- Accepts 3G/HD/SD SDI signals
- Up to eight channels of SDI input signals available Four are dedicated input connectors with cable length measurement capabilities, the other four can be configured as inputs or outputs
- Four 3G/HD/SD SDI channels can be monitored simultaneously, ideal for camera matching
- It can display two sets of HD-SDI dual link signals at the same time
- 3G-SDI signal can be Dual Link or Quad Link for 4K format
- Can display two 4K signals (3G-SDI Quad Link) or four 4K signals (3G-SDI Dual Link)
- Built-In Full HD (XGA IPS LED Backlit) Display (1920 x 1080) for superb picture representations
- Accepts Square Division and 2-sample Interleave Processing Methods
- DVI and HD-SDI Rasterizer Output and SDI re-clocked output
- 4K/HD Pattern Generator function (75%-100% color bars, ramp, cross-hatch)
- Waveform, Vector, Picture can be displayed individually or in combination
- Focus Assist (patent pending) available for a more accurate focus of details
- Custom User-Defined Layout Allows the user to change and customize the size of each of the display screens
- SDI signal data analysis function allows for cable length measurement, CRC error, embedded audio error, event log, data dump, timing display, etc
- Frequency Deviation is standard This feature detects any difference in the frequency of each SDI input signal
- 4-input Phase Measurement checks the difference between a reference SDI signal or an external reference signal and the other input signals
- Digital Audio Option De-embeds SDI audio signals and displays Lissajous, surround sound and meter displays
- 16 channels of audio display are available from one SDI signal
- Eye Pattern & Jitter Measurement capabilities are available as options
- Frame Capture function
- Screen Capture feature The display can be captured and stored as an image data The captured data can be displayed on the LV5490 It can also be saved as bitmap files to USB memory, which makes it possible to view the data on a PC
- External remote connector
- RJ-45 connector is optional
- An USB Mouse can be used to control the LV5490 remotely
