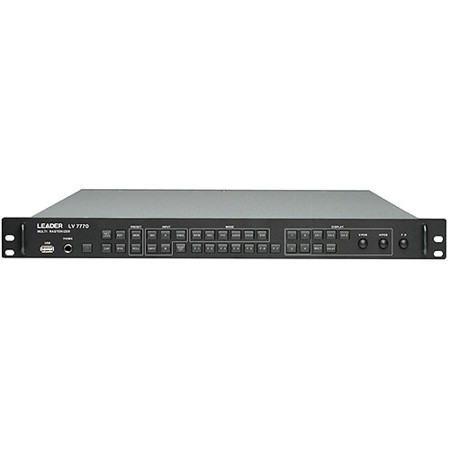

Leader LV7770 Multi SDI Rasterizer for 3G HD-SDI Waveform Monitor Signals, Includes 8 Channel AES/EBU

With the LV7770 Multi SDI Rasterizer, you can seamlessly manage 3G HD-SDI Waveform Monitor Signals, including an 8 Channel AES/EBU. This advanced device accepts two 3G-HD SD SDI waveform monitor sources and offers a variety of display options such as Picture, Waveform, Vector, Audio, CINELITE II, 5-Bar, and Status Displays. These can be viewed individually or in various screen combinations, enhancing your monitoring experience.

The LV7770 supports Dual Link & 3G Level A & B Operation, providing you with versatile functionality. It also features Autonomous Monitoring & Error Detection, including an alarm for audio silence, video freeze, and video black, ensuring optimal performance and reliability.

This rasterizer is equipped with Data Analysis and settable error levels with Monitoring, Alarms, and Error Logs with Time Code, providing you with detailed insights and control. The platform can monitor and display two sources simultaneously in two or four split screen displays, enhancing your multitasking capabilities.

The LV7770 comes standard with Digital Audio support, offering full Loudness, Lip-sync, and A/V Delay Measurements. It also provides Lissajous and Bar Graph Displays, giving you a comprehensive audio monitoring solution.

This device accepts and displays On Picture and Data for Closed Caption, supporting both EIA-608-B & EIA-708 systems. The included USB Connector allows for the use of a flash drive for storing captured screens, presets, and software/firmware updates, providing you with convenient storage solutions.

The DVI-D Rasterized Output displays to an external LCD Monitor, while the HDMI Program Output of the selected source is provided, offering you multiple display options. The LV7770 supports options including Physical Layer Testing with Eye Pattern, Digital (additional 8 channels), Analog Audio, and Composite Inputs.

With Ethernet connectivity, you can enjoy Remote Control over the web, supporting TELNET, FTP, HTTP & SNMP. The Universal AC Power Supply allows for worldwide use, making the LV7770 Multi SDI Rasterizer a versatile and reliable choice for managing 3G HD-SDI Waveform Monitor Signals.
