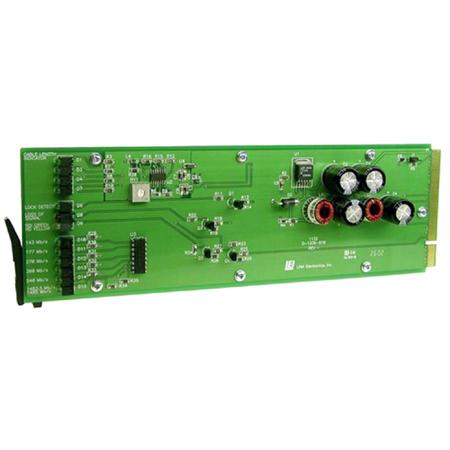

Link Electronics DigiFlex 1132 1x4 HD/SD-SDI Re-clocking Digital Distribution Amplifier with 1032 Rear Cell

SKU: LE11321032 MFR: 1132/1032
Earn VIP Reward Points

Key Features

  • Distribute HD/SD-SDI video signals with this 1x4 distribution amplifier for reliable performance.
  • Ensure signal integrity with re-clocking, supporting composite SDI at 143Mb/s for clear video.
  • Achieve high-quality video distribution with low additive jitter, SD at 25ps & HD at 15ps typical.
  • Simplify setup with BNC connectors for serial digital video input/output, ensuring easy connectivity.
  • Monitor signal status via front LEDs indicating lock detect, signal loss, SD, HD, and data rates.
  • Extend your reach with a digital distribution amplifier, supporting SD up to 300m and HD to 100m.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics DigiFlex 1132 Specifications

  • Number of Serial Digital Video Input

    1

  • Serial Digital Video Input: Connectors

    BNC

  • Serial Digital Video Input: Standards

    Composite SDI: 143Mb/s
    SD SDI: 177Mb/s, 270Mb/s, 360Mb/s, 540Mb/s
    SD HD: 1.4835/1.485Gb/s

  • Serial Digital Video Input: Impedance

    75Ohms

  • Serial Digital Video Input: Return Loss

    >15dB

  • Serial Digital Video I/P: Signal Level

    800mV +/- 10%

  • Serial Digital Video I/P: Cable Length

    SD: 300m / 984.24' at 270Mb/s (Max)
    HD: 100m / 328.08' at 1.485Gb/s (Max)

  • Number of Digital Outputs

    4

  • Digital Outputs: Connectors

    BNC

  • Digital Outputs: Standards

    Composite SDI: 143Mb/s
    SD SDI: 177Mb/s, 270Mb/s, 360Mb/s, 540Mb/s
    SD HD: 1.4835/1.485Gb/s

  • Digital Outputs: Impedance

    75Ohms

  • Digital Outputs: Return Loss

    >15dB

  • Digital Outputs: Signal Level

    800mV +/- 10%

  • Digital Outputs: Rise & Fall Time

    SD: 800ps Max
    HD: 220ps Max

  • Digital Outputs: Overshoot

    8% of Amplitude

  • Digital Outputs: Additive Jitter

    SD at 270Mb/s: 25ps p-p, typical
    HD at 1485Gb/s: 15ps p-p, typical

  • Front Module Indicators: Lock Detect

    Green LED

  • Front Module Indicators: Loss of Signal

    Red LED

  • Front Module Indicators: SD

    Green LED

  • Front Module Indicators: HD

    Yellow LED

  • Front Module Indicators: Data Rates

    6x Green LED

  • Front Module Indicators: Cable Length

    Only used for SMPTE 259M standards, 4x Green LED

  • Power

    42W

  • Ambient Temperature

    0 to 50 deg. F / -18 to 10 deg. C

  • Humidity

    10% to 90% non-condensing

  • Dimensions (H x W x D)

    3.2 x 1 x 10" / 8.13 x 2.54 x 25.40cm

  • Weight

    7.25oz / 205.53g

About Link Electronics DigiFlex 1132

With the LINK 1132 DigiFlex Serial Distribution Amplifier, experience high-quality, reliable signal distribution and amplification. This innovative device is designed to restore incoming signals to their proper amplitude, reshaping them with automatic equalization and DC restoration. It's an advanced solution for professional audio and video applications, specifically designed to handle HD and SD-SDI signals.

The 1132 DigiFlex is capable of equalizing cable lengths up to 300m at 270Mb/s for SD and 100m at 1.485Gb/s for HD. It offers eight outputs on a removable rear cell 1033 and four outputs on the 1032 rear cell, providing a 1x4 distribution that allows a single input signal to be distributed to multiple outputs. This makes it an ideal choice for routing multiple signals in a system.

One of the key features of this durable device is its LED indicators located at the front edge of the front module and on the rear module. These LEDs indicate a Loss of Signal, providing real-time feedback on the signal status. The front module also has LEDs that indicate if the input signal has locked and the data rate at which it is locked.

The 1132 DigiFlex is part of the 1000 series, which are compact designs that allow for flexible configuration. You can mount eleven modules in the 1000 frame and ten modules with a redundant power supply. These modules can operate in any configuration, whether it's audio or video, digital or analog, generators or test modules.

Manufactured by Link Electronics, a leader in professional audio and video equipment, the 1132 DigiFlex Serial Distribution Amplifier is a testament to their commitment to quality and performance. This device is not just a product, but a versatile solution for all your digital distribution needs.

Link Electronics DigiFlex 1132 Features

  • Composite & Component SDI
  • SMPTE 259M, 344M, 292M compliant
  • Serial Digital Input
  • HD Input
  • Eight Serial Outputs
  • Fault Indication
  • Automatic Equalization and Re-clocking

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Distribute HD/SD-SDI video signals with this 1x4 distribution amplifier for reliable performance.
  • Ensure signal integrity with re-clocking, supporting composite SDI at 143Mb/s for clear video.
  • Achieve high-quality video distribution with low additive jitter, SD at 25ps & HD at 15ps typical.
  • Simplify setup with BNC connectors for serial digital video input/output, ensuring easy connectivity.
  • Monitor signal status via front LEDs indicating lock detect, signal loss, SD, HD, and data rates.
  • Extend your reach with a digital distribution amplifier, supporting SD up to 300m and HD to 100m.

What's in the box:

  • Link ELectronics DigiFlex 1132 1x4 HD/SD-SDI Re-clocking Digital Distribution Amplifier with 1032 Rear Cell
  • Link Electronics 10 Year Limited Warranty
