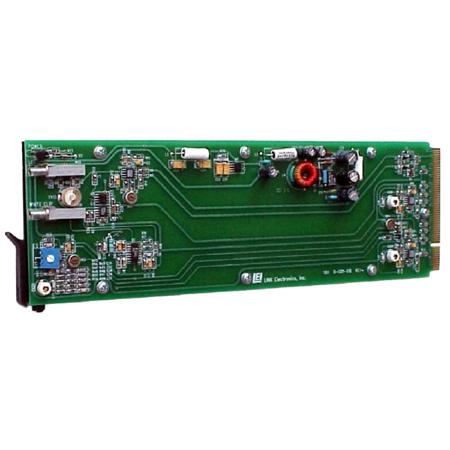

Link Electronics DigiFlex 1151 1x8 Composite Video Distribution Amplifier with 1011 Rear Cell, White Clip and Equalization, Rack Frame Configuration

SKU: LE11511011 MFR: 1151/1011
Earn VIP Reward Points

Key Features

  • Distribute composite video signals with this 1x8 video distribution amplifier, ensuring reliable performance.
  • Achieve unity gain (+/-3dB) with this video distribution amplifier, maintaining consistent signal levels.
  • Enjoy a flat frequency response (+/-0.5dB to 55 MHz) for clear video across multiple displays.
  • Minimize distortion with <0.1% differential gain/phase, ensuring pristine video signal quality.
  • Easily equalize cable runs up to 1000' using the front panel cable equalizer for optimal video clarity.
  • This video distribution amplifier features robust 70dB common mode rejection for noise-free video.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics DigiFlex 1151 Specifications

  • Input: Video Level

    1.0 Vp-p+/-3dB

  • Input: Impedance

    75Ohms, bridging

  • Input: Common Mode Range

    5Vp-p

  • Input: Maximum DC In

    +/-5 VDC

  • Input: CMRR

    70dB

  • Input: Return Loss

    Non Looping Input: >45dB at 5 MHz
    Looping Input: >35dB at 5 MHz

  • Output: Number

    8, BNC; option 7 outputs with looping

  • Output: Level

    Unity Gain +/-3dB

  • Amplifier Performance: Freq. Response

    +/-0.5dB to 55 MHz
    +/-1dB to 60MHz
    3.0dB to 100 MHz

  • Amplifier Performance: Differential Gain

    <0.1%, 10% to 90% APL

  • Amplifier Performance:Differential Phase

    <0.1 deg., 10% to 90% APL

  • Amplifier Performance: Clamping Action

    40dB for 10% to 90% APL
    6dB at60Hz

  • Amplifier Performance: DC Gain Stability

    2%

  • Amplifier Performance: Signal-to-Noise

    >65dB

  • Amplifier Performance: Hum

    >70dB, below 1.0V p-p

  • Amplifier Performance: Output Isolation

    > 45dB at 3.58 MHz

  • Amplifier Performance: Return Loss

    50dB to 5 MHz

  • Amplifier Performance: Tilt

    <0.4%

  • Amplifier Performance: Ringing

    <0.4%

  • High Freq Overshoot

    <0.4%

  • Amplifier Performance: Coupling

    DC Servo, Average DC output =0

  • Harmonic Distortion

    SC at 358Hz, 2Vp-p
    Less than 0.4% ( 48dB)

  • Front Controls: Gain Control

    +/-3dB continuous from unity

  • Front Controls: White Clip

    100 IRE +/-30 IRE Units

  • Front Controls: Cable Equalizer

    Equalizes up to 1000'

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10% to 90% non-condensing

  • DC Voltages

    +5 VDC: 50mA
    -5 VDC: 50mA

  • Mounting

    Mounts in 1000 or 7200

  • Dimensions (H x W x D)

    35 x 1 x 10" / 88.90 x 2.54 x 25.40cm

  • Weight

    71oz / 2012.81g

About Link Electronics DigiFlex 1151

Why settle for less when you can have the best with the DigiFlex 1151 1x8 Composite Video Distribution Amplifier This cutting-edge device is a game-changer in the realm of analog video distribution, offering both analog and digital distribution amplifiers in a single, compact LINK DigiFlex 1000 Frame.

The DigiFlex 1151 is equipped with advanced CMF Op-Amp technology, ensuring wide bandwidth, low noise, and low power consumption. This results in a truly transparent video path, characterized by minimal differential phase and gain errors.

The device comes with eight outputs on its companion rear cell, the 1011. However, if the input is specified as looping, the 1011 provides seven outputs. The DC-coupled differential input, a standard feature of the 1151, offers high common-mode rejection, enhancing the quality of your video distribution.

One of the standout features of the DigiFlex 1151 is its adjustable cable equalization. This can be easily managed from the front card edge and can compensate for loss in coax cable up to 1000 feet of Belden 8281. The clamp is conveniently referenced to the back porch.

The DigiFlex 1151 also features an adjustable white clip, which can be managed from the front card edge with a range of 100 IRE units +/-30 IRE units. This attention to detail extends to the power supply, which features a simple yet efficient switching regulator.

The DigiFlex 1151 is compatible with two mounting frames, the 1000 and 7200, making it a versatile addition to the DigiFlex series products. Experience the difference in your video distribution with the DigiFlex 1151 1x8 Composite Video Distribution Amplifier.

Link Electronics DigiFlex 1151 Features

  • White Clip
  • Op Amp. Technology
  • Eight Outputs, 7 Looping
  • DC Coupled
  • +/-3dB Gain
  • 100 MHZ Bandwidth
  • Differential Gain and Phase 0.1

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Distribute composite video signals with this 1x8 video distribution amplifier, ensuring reliable performance.
  • Achieve unity gain (+/-3dB) with this video distribution amplifier, maintaining consistent signal levels.
  • Enjoy a flat frequency response (+/-0.5dB to 55 MHz) for clear video across multiple displays.
  • Minimize distortion with <0.1% differential gain/phase, ensuring pristine video signal quality.
  • Easily equalize cable runs up to 1000' using the front panel cable equalizer for optimal video clarity.
  • This video distribution amplifier features robust 70dB common mode rejection for noise-free video.

What's in the box:

  • Link ELectronics DigiFlex 1151 1x8 Composite Video Distribution Amplifier with 1011 Rear Cell
  • Rack Card
  • Link Electronics 10 Year Limited Warranty
