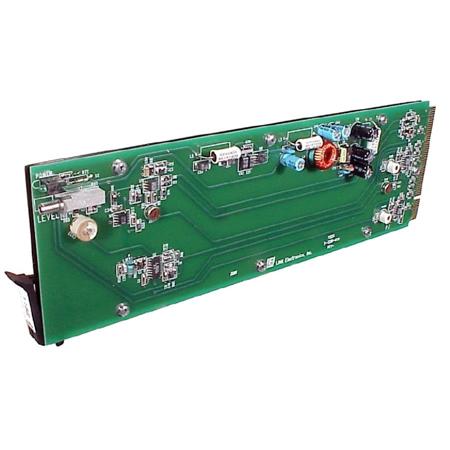

Link Electronics DigiFlex 1152 1x8 100 MHz Composite Analog Video Distribution Amplifier with 1011 Rear Cell, Rack Frame Configuration

SKU: LE11521011 MFR: 1152/1011
Earn VIP Reward Points

Key Features

  • Ensure reliable video signal distribution with this 1x8 composite video amplifier.
  • Achieve unity gain (+/-3dB) across all eight outputs using this video distribution amp.
  • Enjoy wide compatibility with 75Ohm impedance matching for seamless video integration.
  • Experience low distortion (<0.1%) with this high-performance video distribution amplifier.
  • Maintain signal integrity with >40dB return loss at 6MHz using this distribution amplifier.
  • Easily adjust video gain (+/-3dB) for optimal signal levels on this video distribution amp.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

2 Year

$34.99

3 Year

$49.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics DigiFlex 1152 Specifications

  • Input: Number

    One, terminated

  • Input: Level

    1 Vp-p +/-3dB

  • Input: Impedance

    75Ohms Terminated

  • Input: Common Mode Range

    5 Vpp

  • Input: Maximum DC In

    +/-5Volts

  • Input: CMRR

    >70dB at 60Hz

  • Input: Return Loss

    >40dB at 358MHz

  • Output: Number

    Eight

  • Output: Impedance

    75Ohms

  • Output: Level

    Unity Gain +/-3dB

  • Output: Connectors

    BNC

  • Amplifier Performance: Freq. Response

    +/-0.5dB to 40MHz
    +/-1dB at 60MHz
    -2.0 dB at 80MHz
    -3dB at 100MHz

  • Amplifier Performance: Differential Gain

    <0.1%

  • Amplifier Performance:Differential Phase

    <0.1 deg.

  • Amplifier Performance: DC Gain Stability

    >50dB

  • Amplifier Performance: Noise

    >65dB

  • Amplifier Performance: Hum

    >70dB

  • Amplifier Performance: Output Isolation

    >40dB at 3.58MHz

  • Amplifier Performance: Return Loss

    >40dB at 6MHz

  • Amplifier Performance: Line RateTilt

    <0.2%

  • Amplifier Performance: Field Rate Tilt

    <0.2%

  • Amplifier Performance: Ringing

    <0.4%

  • High Frequency Overshoot

    <0.4%

  • Amplifier Performance: Coupling

    DC Servo, Average DC Output = 0

  • Amplifier Performance: Propagation Delay

    14nS

  • ADJUSTMENTS (Front edge of module)

    Video Gain: +/-3dB

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10% to 90% non-condensing

  • Power

    500mW

  • Dimensions (H x W x D)

    3.2 x 1.0 x 10" / 8.13 x 2.54 x 25.40cm

  • Weight

    7.1oz / 201.28g

About Link Electronics DigiFlex 1152

What sets the DigiFlex 1152 Video Distribution Amplifier apart is its exemplary fusion of high-quality performance and innovative technology, tailored for professional video distribution needs. The DigiFlex 1152 is an advanced composite analog video distribution amplifier that seamlessly integrates into the LINK DigiFlex 1000 Frame, offering a versatile solution where both analog and digital distribution amplifiers coexist in harmony within a single, streamlined rack frame configuration.

Crafted with the latest CMF Operational Amplifier technology, this durable unit boasts an impressive wide bandwidth of 100 MHz, ensuring that high-quality video signals are distributed with minimal signal loss, making it an ideal choice for maintaining pristine video quality across various applications. The low noise and low power consumption features of the DigiFlex 1152 underscore its reliable performance and commitment to efficiency.

The video path of the DigiFlex 1152 is engineered to be transparent, achieving differential phase and gain errors of a mere 0.1 degree and 0.1%, respectively. With a video signal-to-noise ratio that exceeds 65dB, this distribution amplifier guarantees a clear and uninterrupted signal, which is paramount in professional settings such as broadcast studios, production houses, and other video-intensive environments.

Equipped with a DC-coupled differential input, the DigiFlex 1152 ensures high common-mode rejection, a standard feature that further enhances its robustness against interference. The unit provides eight outputs via the companion rear cell, model 1011, catering to the needs of complex video distribution setups.

The front panel gain control allows for precise adjustments to the level within a range of +/-3dB, giving users the flexibility to fine-tune the signal according to their specific requirements. The meticulous design extends to the power supply, which incorporates a simple switching regulator. This design choice not only adds to the unit's advanced features but also maximizes efficiency, surpassing the performance of a traditional linear supply.

In summary, the DigiFlex 1152 Video Distribution Amplifier is a testament to Link Electronics' dedication to producing high-quality, reliable, and innovative professional audio and video equipment. Its superior design and functionality make it a standout choice for professionals seeking a distribution amplifier that promises years of trouble-free service in any demanding video distribution scenario.

Link Electronics DigiFlex 1152 Features

  • Eight Outputs
  • Differential Input
  • DC or AC Coupled
  • Op Amp. Technology
  • +/-3dB Gain, each set of four
  • 100 MHZ Bandwidth
  • Diff. Gain and Phase 0.1

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure reliable video signal distribution with this 1x8 composite video amplifier.
  • Achieve unity gain (+/-3dB) across all eight outputs using this video distribution amp.
  • Enjoy wide compatibility with 75Ohm impedance matching for seamless video integration.
  • Experience low distortion (<0.1%) with this high-performance video distribution amplifier.
  • Maintain signal integrity with >40dB return loss at 6MHz using this distribution amplifier.
  • Easily adjust video gain (+/-3dB) for optimal signal levels on this video distribution amp.

What's in the box:

  • Link ELectronics DigiFlex 1152 1x8 100 MHz Composite Analog Video Distribution Amplifier with 1011 Rear Cell
  • Rack Card
  • Link Electronics 10 Year Limited Warranty
