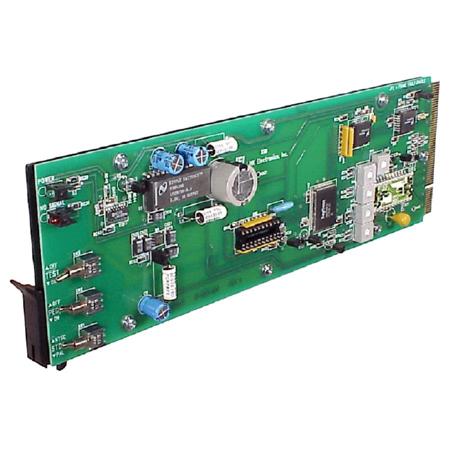

Link Electronics 10 Bit SDI to Composite and Y/C Digital to Analog Converter

SKU: LE11591027 MFR: 1159/1027
Earn VIP Reward Points

Key Features

  • Seamless SDI to composite conversion ensures high-quality analog video output for older devices.
  • Enjoy stable connections with this digital to analog converter, perfect for broadcast applications.
  • This format converter supports both NTSC and PAL standards, offering versatile video solutions.
  • Get real-time video format conversion with low latency, ideal for live video production setups.
  • Affordable SDI converter delivers professional-grade video quality with easy setup and operation.
  • Achieve high-resolution video output with precise color and luminance adjustments using this converter.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Converter Specifications

  • Digital video input standard

    270Mb/s, SMPTE 259M-C

  • Digital video input Impedance

    75Ohms

  • Digital video input Return Loss

    >18dB

  • Digital video input Signal Level

    800mV+/-1%

  • Digital video input CMR

    30Vp-p, up to 60Hz

  • Digital video input Equalization

    Automatic up to >30dB

  • Digital video input Connectors

    BNC

  • Number of Video Outputs

    2x NTSC or PAL, 1x Y/C ( 2x BNC Connectors)

  • Analog output Composite Sync

    0.3 Vp-p, Terminated

  • Analog output Impedance

    75Ohms

  • Analog output Return Loss

    >38dB to 5MHz

  • Analog output Signal Level

    1.0Vp-p +/-10%, Adjustable

  • Analog output DC Offset

    +/-100mV

  • Analog output Frequency Response

    >0.5dB at 4.2MHz

  • Analog output Differential Gain

    1.0%

  • Analog output Differential Phase

    0.5 deg.

  • Analog output Chroma-Luma Delay

    +/-10nS

  • Analog output Signal to Noise

    >65dB to 5MHz

  • Front controls and indicator

    Power: Green LED
    No Signal: Red LED
    Test: Color Bars, Select
    Set-up: On/Off
    Standard: NTSC/PAL

  • Power

    3.5W

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    0% to 90% non-condensing

  • Dimensions (H x W x L)

    3.2 x 1.0 x 10" / 81.28 x 25.40 x 254.00mm

  • Weight

    7.25oz / 205.53g

About Link Electronics Converter

Over the years, Link Electronics has established itself as a trusted brand in the realm of high-quality, durable, and innovative electronics. The Link 1159 10 Bit SDI to Composite and Y/C Digital to Analog Converter is a testament to this reputation. This advanced converter is designed to transform SDI serial component digital, 10 bit, into analog (NTSC/PAL) composite video with exceptional precision and performance.

The Link 1159 leverages cutting-edge technology to deliver superior conversion from digital SDI to analog NTSC or PAL composite video. Its digital input is nonlooping and boasts impressive return loss, ensuring error-free transmission for input cable lengths exceeding 500ft. The presence of a serial digital input is confirmed by a signal presence LED, adding an extra layer of reliability to your operations.

This reliable converter is equipped with two NTSC analog outputs on the rear panel, designed for distribution purposes. It also features a Y/C pair of BNC connectors for S-Video distribution, enhancing its versatility. The front panel houses three switches for selecting Color Bars, Set-up On/Off, and NTSC/PAL, offering you complete control over your conversion process.

The Link 1159 preserves Line 21 for closed captioning, making it an ideal choice for professional video applications. It is designed to reside in LINK's 1000-Series frame, which can accommodate up to 11 modules of various types. The converter also supports a redundant power supply for dual power supply operation, with a second power cord included for separate AC circuit breakers.

The DigiFlex 1159 is part of the DigiFlex 1000 series modules, which can operate in the mounting frame in any configuration. The specific rear cell matches the module and, in some cases, the rear cell detects the desired output signal. This advanced, high-quality converter is a versatile and reliable choice for all your digital to analog conversion needs.

Link Electronics Converter Features

  • 10 Bit Processing
  • SDI Serial Component Digital Input
  • NTSC or PAL Input
  • Two NTSC/PAL Outputs
  • One Y/C (S-Video) Output
  • Composite Sync Output
  • Color Bar Select
  • CCIR 601 Compliant
  • Set-up On/Off
  • Select NTSC/PAL
  • Fault Indication
  • Passes Line 21

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamless SDI to composite conversion ensures high-quality analog video output for older devices.
  • Enjoy stable connections with this digital to analog converter, perfect for broadcast applications.
  • This format converter supports both NTSC and PAL standards, offering versatile video solutions.
  • Get real-time video format conversion with low latency, ideal for live video production setups.
  • Affordable SDI converter delivers professional-grade video quality with easy setup and operation.
  • Achieve high-resolution video output with precise color and luminance adjustments using this converter.

What's in the box:

  • Link ELectronics 10 Bit SDI to Composite and Y/C Digital to Analog Converter
  • Rack Card
  • Rear Cell
  • Link Electronics 10 Year Limited Warranty
