Link Electronics NTSC/PAL Composite to SDI Component Digital Video Converter

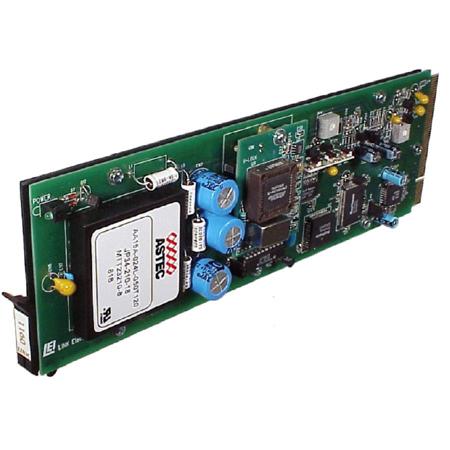

The LINK 1160 analog to digital converter provides an accurate means of converting analog NTSC or PAL composite video to component serial digital (SMPTE 259M). The 1160 takes advantage of the latest integrated circuit technology to offer outstanding performance. The input analog to digital converter features 2x over-sampling. Pre-filtering to full CCIR-601 specification is accomplished in the digital domain. Decoding is handled by a state-of-the-art three-line adaptive comb which eliminates the "hanging dots" associated with traditional comb filters. The 1160 utilizes 10 Bit processing.

The 1023 rear cell matches the 1160 for system flexibility. The 1000 frame will accommodate digital, analog, audio or video in the same frame. System upgrade is made simple with the DigiFlex 1000 series products. The DigiFlex 1160 is designed to reside in LINK's 1000-Series frame. This frame can house up to 11 modules of various types. For stand-alone applications, the DigiFlex modules may be mounted in a small portable chassis for single module use, model 7200. The 7200-Series "single-module frame" features a modular power supply for insertion of any Digiflex series front and rear modules.
