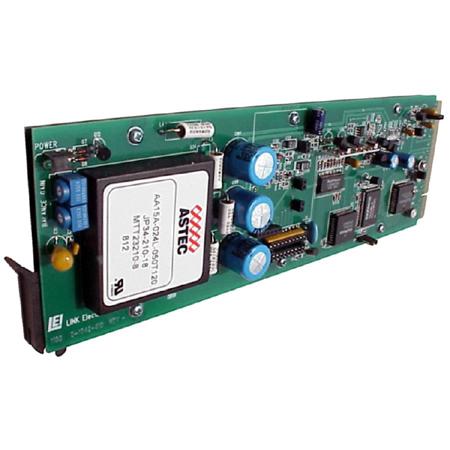

Link Electronics NTSC/PAL Composite to Component YUV Plus Sync Analog Signal Converter

SKU: LE11631024 MFR: 1163/1024
Earn VIP Reward Points

Key Features

  • Easily convert NTSC/PAL composite video to YUV component with this format converter.
  • Enjoy stable video conversion with >55dB signal-to-noise ratio for superior quality.
  • Achieve real-time video format conversion with low signal tilt, less than 0.5%.
  • This video converter supports both NTSC and PAL analog composite inputs for flexibility.
  • Experience high-resolution video output with 10-bit DAC resolution, upgradeable to 12-bit.
  • Get precise video conversion with >40dB return loss up to 5.5MHz for optimal signal.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Converter Specifications

  • Number of Video Input

    1

  • Video Input Standard

    NTSC or PAL Analog Composite

  • Video Input Configuration

    Differential

  • Video Input Connector

    75Ohms BNC

  • Video Input Impedance

    >75Ohms+/-1%

  • Video Input Common Mode Rejection

    >60dB

  • Video Input Return Loss

    >40dB to 5.5MHz

  • Video Input Signal Level

    1Vpp +/-3dB

  • Number of Analog output

    1x, Y,U,V, Rear cell

  • Analog output Y Frequency Response

    +/-0.3dB to 5.5MHz

  • Analog output U, V Bandwidth

    1.0MHz

  • Analog output RGB Frequency Response

    +/-0.3dB to 5.5MHz

  • Analog output Signal to Noise Ratio

    >55dB

  • Analog output Tilt

    <0.5%

  • Analog output Overshoot

    <0.5%

  • Analog output Luminance Non-Linearity

    <1.0%

  • Analog output Subcarrier Rejection

    >45dB

  • Analog output DAC Resolution

    10 Bit
    12 Bit Option

  • Analog output Composite SYNC

    4.0 Vp-p

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10% to 90% non-condensing

  • Power

    6W

  • Dimensions (H x W x L)

    3.2 x 1 x 10" / 81.28 x 25.40 x 254.00mm

  • Weight

    8oz / 226.80g

About Link Electronics Converter

Before you delve into the world of video signal conversion, consider the LINK 1163 Analog Composite to Component YUV Plus Sync Analog Signal Converter. This high-performance device is expertly designed to convert analog NTSC signals into component analog, YUV, or RGB formats with precision and accuracy.

The LINK 1163 is equipped with advanced hybrid output filters, strategically positioned on the rear cell. These filters are responsible for detecting and outputting RGB or YUV signals, ensuring the highest quality video output. The device also features an input analog to YUV decoder with 2x oversampling, providing superior image resolution.

One of the standout features of the LINK 1163 is its state-of-the-art three-line adaptive comb. This innovative technology eliminates the "hanging dots" often associated with traditional comb filters, resulting in a cleaner, more defined image.

The LINK 1163 operates with 10 Bit processing, but also offers a 12 Bit option for those seeking enhanced performance. Depending on your specific needs, you can choose rear cell 1024 for YUV output or rear cell 1025 for RGB output.

The LINK 1163 is designed for system flexibility and is compatible with LINK's 1000-Series frame. This frame can accommodate up to five 1163 modules due to its power capacity. For standalone applications, the DigiFlex modules can be mounted in a compact, portable chassis for single module use, specifically model 7200.

The 7200-Series "single-module frame" is designed with a modular power supply, allowing for the insertion of any DigiFlex series front and rear modules. This makes system upgrades simple and efficient with the DigiFlex 1000 series products.

In summary, the LINK 1163 Analog Composite to Component YUV Plus Sync Analog Signal Converter is a versatile, high-performance solution for all your video signal conversion needs.

Link Electronics Converter Features

  • 3 Line Adaptive Digital Comb Filter
  • 10 Bit or 12 Bit Processing
  • Analog Composite Input
  • YUV Outputs or RGB
  • Composite Sync Output

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Easily convert NTSC/PAL composite video to YUV component with this format converter.
  • Enjoy stable video conversion with >55dB signal-to-noise ratio for superior quality.
  • Achieve real-time video format conversion with low signal tilt, less than 0.5%.
  • This video converter supports both NTSC and PAL analog composite inputs for flexibility.
  • Experience high-resolution video output with 10-bit DAC resolution, upgradeable to 12-bit.
  • Get precise video conversion with >40dB return loss up to 5.5MHz for optimal signal.

What's in the box:

  • Link ELectronics NTSC/PAL Composite to Component YUV Plus Sync Analog Signal Converter
  • Link Electronics 10 Year Limited Warranty
