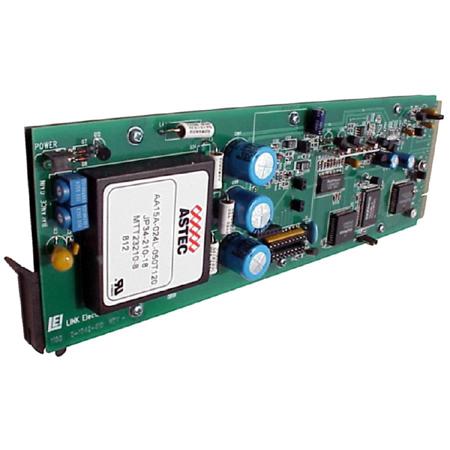

Link Electronics NTSC/PAL Composite to Component RGB Plus Sync Analog Signal Converter

SKU: LE11631025 MFR: 1163/1025
Earn VIP Reward Points

Key Features

  • Easily convert NTSC/PAL composite video to component RGB with this format converter.
  • Enjoy a stable video signal conversion with >60dB common mode rejection for clear output.
  • Achieve high-resolution video output with a 10-bit DAC (12-bit optional) for superior quality.
  • This affordable video converter supports real-time conversion, perfect for live streaming setups.
  • Experience easy setup with this compact converter, measuring just 3.2 x 1 x 10 inches!
  • Ensure format compatibility with this versatile converter, ideal for diverse video equipment.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Converter Specifications

  • Number of Video Input

    1

  • Video Input Standard

    NTSC or PAL Analog Composite

  • Video Input Configuration

    Differential

  • Video Input Connector

    75Ohms BNC

  • Video Input Impedance

    >75Ohms+/-1%

  • Video Input Common Mode Rejection

    >60dB

  • Video Input Return Loss

    >40dB to 5.5MHz

  • Video Input Signal Level

    1Vpp +/-3dB

  • Number of Analog output

    1x, RGB, Rear cell

  • Analog output Y Frequency Response

    +/-0.3dB to 5.5MHz

  • Analog output U, V Bandwidth

    1.0MHz

  • Analog output RGB Frequency Response

    +/-0.3dB to 5.5MHz

  • Analog output Signal to Noise Ratio

    >55dB

  • Analog output Tilt

    <0.5%

  • Analog output Overshoot

    <0.5%

  • Analog output Luminance Non-Linearity

    <1.0%

  • Analog output Subcarrier Rejection

    >45dB

  • Analog output DAC Resolution

    10 Bit
    12 Bit Option

  • Analog output Composite SYNC

    4.0 Vp-p

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10% to 90% non-condensing

  • Power

    6W

  • Dimensions (H x W x L)

    3.2 x 1 x 10" / 81.28 x 25.40 x 254.00mm

  • Weight

    8oz / 226.80g

About Link Electronics Converter

Take your analog signal conversion to the next level with the LINK 1163 NTSC/PAL Composite to Component RGB Plus Sync Analog Signal Converter. This high-performance device is expertly designed to convert analog NTSC signals into component analog, YUV, or RGB formats, offering you unparalleled accuracy and flexibility in signal conversion.

The LINK 1163 is equipped with advanced hybrid output filters, strategically positioned on the rear cell, to detect and output RGB or YUV signals with precision. The input analog to YUV decoder boasts a 2x oversampling feature, ensuring superior signal quality and clarity.

One of the standout features of this converter is its state-of-the-art three-line adaptive comb. This innovative technology effectively eliminates the "hanging dots" commonly associated with traditional comb filters, providing you with a smoother, more consistent signal.

The LINK 1163 utilizes 10-bit processing for optimal performance, with an available 12-bit option for those seeking enhanced depth and color accuracy. The unit offers system flexibility with rear cell options 1024 for YUV output and 1025 for RGB output.

Designed to fit seamlessly into LINK's 1000-Series frame, the LINK 1163 can be housed with up to five 1163 modules due to its efficient power management. This compatibility allows for a diverse range of digital, analog, audio, or video components to be accommodated in the same frame, making system upgrades a breeze with the DigiFlex 1000 series products.

For standalone applications, the DigiFlex modules can be conveniently mounted in a compact, portable chassis for single module use, model 7200. The 7200-Series "single-module frame" features a modular power supply, allowing for the insertion of any DigiFlex series front and rear modules.

In summary, the LINK 1163 NTSC/PAL Composite to Component RGB Plus Sync Analog Signal Converter is a versatile, high-performance solution for all your analog signal conversion needs.

Link Electronics Converter Features

  • 3 Line Adaptive Digital Comb Filter
  • 10 Bit or 12 Bit Processing
  • Analog Composite Input
  • YUV Outputs or RGB
  • Composite Sync Output

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Easily convert NTSC/PAL composite video to component RGB with this format converter.
  • Enjoy a stable video signal conversion with >60dB common mode rejection for clear output.
  • Achieve high-resolution video output with a 10-bit DAC (12-bit optional) for superior quality.
  • This affordable video converter supports real-time conversion, perfect for live streaming setups.
  • Experience easy setup with this compact converter, measuring just 3.2 x 1 x 10 inches!
  • Ensure format compatibility with this versatile converter, ideal for diverse video equipment.

What's in the box:

  • Link ELectronics NTSC/PAL Composite to Component RGB Plus Sync Analog Signal Converter
  • Link Electronics 10 Year Limited Warranty
