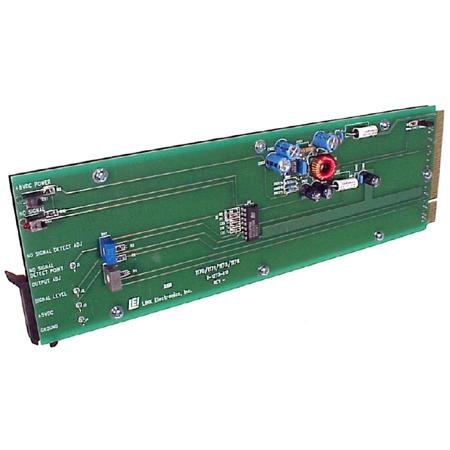

Link Electronics DigiFlex 1175 1x8 SDI Re-clocking Distribution Amplifier with 1075 Rear Cell, Equalization

The Link Electronics DigiFlex 1175 1x8 SDI Re-clocking Distribution Amplifier with 1075 Rear Cell and Equalization is an advanced, high-quality solution for professional audio and video applications. This innovative device not only restores the incoming signal to its proper amplitude but also reshapes it with automatic equalization, re-slicing, and DC restoration.

The DigiFlex 1175 and 1176 models are designed to re-clock the input signal, enabling distribution over longer distance cables of up to 500 feet. This feature makes it an ideal choice for large-scale installations or projects that require extended signal reach. The device comes with eight outputs located on a removable rear cell, offering flexibility and convenience for various setups.

A unique feature of this device is the module fault LED located on the front edge of the module. This LED indicator signals a weak or absent input signal, with adjustable sensitivity to suit user requirements. Another LED indicator on the rear cell shows the presence of an input signal, providing real-time status updates for seamless operation.

The DigiFlex 1175 and 1176 models support composite 143Mb/s or component 270Mb/s standards, ensuring compatibility with a wide range of professional equipment. The 1176 model allows user-adjusted output levels between 600mV and 1100mV, while the 1175 model offers a fixed output level of 800mV.

The compact design of the DigiFlex 1000 series modules allows for mounting eleven modules in the 1000 frame, or ten modules with a redundant power supply. These modules can operate in any configuration within the 1000 frame, whether it's audio or video, digital or analog, generators, or test modules. This versatility makes the DigiFlex 1175 a reliable and durable choice for professionals seeking high-quality signal distribution and re-clocking solutions.
