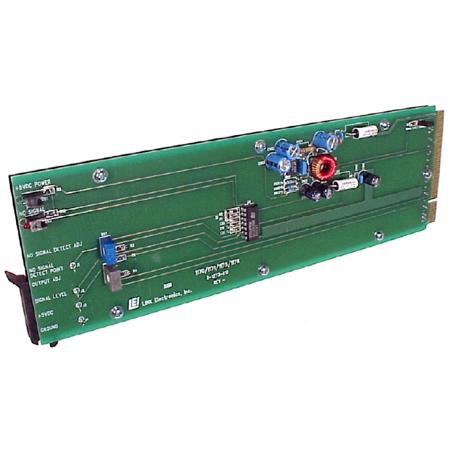

Link Electronics DigiFlex 1176 1x8 SDI Distribution Amplifier with 1076 Rear Cell, Level Adjust

What sets the DigiFlex 1176 1x8 SDI Distribution Amplifier apart is its advanced signal restoration capabilities. This high-performance serial distribution amplifier from Link is designed to restore incoming signals to their proper amplitude, ensuring the highest quality audio and video output.

The DigiFlex 1176 employs automatic equalization, re-slicing, and DC restoration to reshape the signal, providing a clean, clear output. It also features a unique re-clocking function that allows the input signal to be distributed over longer distance cables, up to an impressive 500 feet.

This model comes with eight outputs, conveniently located on a removable rear cell. It also includes a module fault LED on the front edge of the module, which indicates a weak signal or the absence of an input signal. The sensitivity of this LED indicator can be adjusted to suit the user's needs, adding to the device's versatility.

The DigiFlex 1176 is compatible with both composite 143Mb/s and component 270Mb/s standards, making it a flexible choice for various applications. It also features two LED's that display power supply status and signal presence.

The 1176 output level can be user-adjusted between 600mV and 1100 mV, providing additional control over the output. The DigiFlex 1176, along with its counterpart, the 1175, which has a fixed output level of 800mV, are part of the compact 1000 series DigiFlex modules. These modules can be mounted in the 1000 frame, allowing for up to eleven modules or ten modules with a redundant power supply.

The 1000 series modules are designed to operate in any configuration within the 1000 frame, whether it's audio or video, digital or analog, generators, or test modules. This makes the DigiFlex 1176 a versatile and reliable choice for any audio or video setup.

With the backing of Link's 10-year warranty, the DigiFlex 1176 SDI Distribution Amplifier is a robust and reliable solution for your signal distribution needs.
