Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-08-31T20:00:00

Rated 5 out of 5

Great form factor

Compact, fits the Tiny PC perfectly, mounts great.

TECVT

2023-02-02T19:00:00

Rated 5 out of 5

Great Big Screen

This monitor has a nice big screen, and I appreciate having the speakers/mic/webcam all built-in. The enclosure on the back for the TinyPC works out well for having a nice clean desktop. Reminder to users who are not going to use enclosure that you will need to get a display cable as the monitor does not appear to have an HDMI interface. Had the monitor for a few weeks now, and I really love it!!

AJ M.

2022-12-20T19:00:00

Rated 5 out of 5

Highly recommended

In our office these are the go to monitors. Great sound quality and the all in one value is fantastic.

PNFarms

2022-12-15T19:00:00

Rated 5 out of 5

Great monitor and all in one replacement

We love the TIO monitors and PCs. The monitor has a nice clear screen with excellent color. The built in webcam, speaker, and microphone all work well. The biggest advantage for us is that it appears as an all in one, but has the ability to swap PCs easily and keep things neat. Only real change is if we could rotate the webcam around further so we could use it to capture customer pics into our software instead of a separate device.

TGettle

2022-12-14T19:00:00

Rated 5 out of 5

Nice quality monitor

Nice high quality monitor. The brightness is perfect for a work setting and webcam had good resolution.

Andrzej N.

2022-12-14T19:00:00

Rated 4 out of 5

Speakers

Speakers could be better..........................

Norm3

2022-11-25T19:00:00

Rated 5 out of 5

Easily upgradable All-In-One combination!

Great monitor, it can hold the tiny PC without any display cables of any cables at all. Just slide the tiny PC to the back of this monitor and you are connected. It is a perfect all-in-one PC with easily accessible upgradable capability.

hubsew

2022-11-15T19:00:00

Rated 4 out of 5

A Great Companion for a Tiny Owner

I've had a Lenovo Tiny M700 for quite a few years now and was ready for a larger monitor. I was surprised to stumble onto this Tiny-in-One monitor. My existing computer fit right in with no trouble. I admit that I thought the monitor looked a bit clunky in the photos on the website, but someone how it looked much better in person. It doesn't seem much larger than my existing 22-inch monitor because it is so much more efficient with the border frame around the monitor. I have one less power cord under the desk as the monitor supplies power to the computer. I have one less USB cable because of the built in camera. The camera is not the best, but it is good enough for a while. I admit that I bought a monitor with a built in camera years ago and while the monitor is still fine, the camera is no longer adequate in this day of zoom calls. If it had a slightly better camera, this monitor would get five stars.

Alfetta159

2022-10-24T20:00:00

Rated 5 out of 5

Perfect Mate

This is the perfect companion monitor to my M90 tiny computer. It already has the webcam and speaker attached. Once put together (very easy) it is now an AIO. Love it so far. Price was very reasonable. I use it for work, so not a gaming monitor.

Karen R.

2022-09-24T20:00:00

Rated 2 out of 5

Monitor docking station

The design of the Pc docking station on the back of the monitor forces the unit to rely on one shared power cord.

Lando 3.

2022-09-05T20:00:00

Rated 4 out of 5

ThinkCentre TIO24Gen 4 23.8-inch

ThinkCentre TIO24Gen 4 23.8-inch great monitor look like an all in one machine

Thido

2022-07-16T20:00:00

Rated 5 out of 5

Super happy with this Monitor

Perfect! Tiny PC has a permanent home & everything works as expected. Good quality item.

JillDS

2022-07-12T20:00:00

Rated 5 out of 5

Makes IT life easier

Love these monitors, easy to move computers in and out of. Great for managing hardware. Webcam and speakers are decent

DaveGuenther

2022-07-07T20:00:00

Rated 5 out of 5

Save space and costs with TIO monitors

We switched all our work PC's, as they needed replacement, to TIO's with Lenovo Tiny PC's. The low profile, height-adjustable, high-quality monitor and built-in adjustable web cam saves money and desktop space. As well, the PC has the ability to add a second monitor via DP or HDMI.

Jason G.

2022-03-02T19:00:00

Rated 4 out of 5

ThinkCentre Tiny-in-One 24 Inch Monitor

Has multiple features like speaker and webcam with it unlike other desktops.

Harry10

2022-02-11T19:00:00

Rated 5 out of 5

great qual

solid monitor, more than adequate, h8igh quality lenovo monitor as usual

just1993

2021-03-22T20:00:00

Rated 4 out of 5

Convert Your Tiny p340 to an AIO

The main reason to purchase this monitor is to convert your Tiny PC to an all-in-one. My p340 Tiny desktop fits and works perfectly. This monitor adds a built-in webcam and speakers to your system. There is even a slot on the monitor stand for your phone! The only negative is that it only works with the integrated graphics card. If like me you have the NVIDIA® Quadro® graphics card installed, you won't be able to use it unless you take out the computer and connect with a cable in TIO mode. If you want to use the monitor in AIO mode with your discrete graphics card then this is not the monitor for you. Otherwise, this is a great monitor for your p340 Tiny desktop.

Ben O.

2021-03-01T19:00:00

Rated 2 out of 5

Poor Product Description

As a monitor, it's fine and does the job. However, it wasn't clear to me that an additional "Tiny" device is needed for the camera to function. This product is not clearly described. I would return but we no longer have the packaging.

NewChris

2021-03-01T19:00:00

Rated 5 out of 5

Perfect self contained solution.

Perfect self contained solution for powerful space saving device.

Omar V.

2021-02-14T19:00:00

Rated 5 out of 5

Nice all-in-one setup

This was very helpful to clean up my desk. It does a decent job with video conferencing. You can probably get a higher quality image or sound production from separate components, but this fits our needs very well for company office work.

Jeff_L

2021-02-03T19:00:00

Rated 3 out of 5

Monitor

Webcam is not working when connected to lab top and tested

Robertxs

2021-01-28T19:00:00

Rated 5 out of 5

Great Monitor

Great monitor includes camera and microphone. I really like the way the tiny computer slides into the back of the monitor. Very neat setup with only one power cord and no cables needed between computer and monitor. If you use a wireless keyboard and mouse the desktop is free of cables.

nelhad

2021-01-21T19:00:00

Rated 4 out of 5

Excellent design

First: bought this alongside the M75q Gen2. It is great to reduce desk clutter and have a powerful desktop that takes up so little space. The included webcam (with privacy shutter, microphone, and speaker makes working from home in the age of video calls simple. Pros: - Mounts easily with the provided desktop. - It is built like a tank and is heavy and should hold up to abuse it seems. - It rotates to have landscape/horizontal mode, tilt, spin, etc. - Picture is clear and bright. I'm not a gamer, so it probably won't give you the amazing graphics you want, but this plenty fine for office & development work. - Does not block other ports from the mounted desktop in the rear, other than 1 USB (for webcam/speaker), 1 DisplayPort, and the power. - It also has USB IN for hooking up a flash drive/mouse/etc on the side of the speaker, when mounted alongside the PC in the monitor. - It has USB OUT and DisplayPort IN as well. So if you don't have the PC mounted in the back, you can still use this monitor and webcam/speaker with an external PC. - Webcam has a privacy shutter. It tilts forward/back for a good angle. - When used with the mounted PC, just one cable supplies all the necessary power for both the monitor and PC. Cons: - The internal speaker is garbage, so don't expect great audio from it with deep bass and excellent highs... Music just does not sound good on it. Don't get me wrong -- audio & calls work fine on it, though sometimes with deep/low voiced speakers you'll get some crackling. You'll just definitely want a separate set of speakers if you intend to watch movies, listen to music, etc, on this. - Occasionally on calls, others have said that my microphone is very quiet, even with the microphone on its max setting.

VSFN

2021-01-15T19:00:00

Rated 5 out of 5

Good all in one setup

Built in speakers are adequate for video chat and voice calls.

User1234567891234

2021-01-10T19:00:00

Rated 5 out of 5

ECSTATIC

This is the BEST!! It is neat, the PC fits into the back of the monitor, there is only 1 wire; I love it

DLeeM

2021-01-07T19:00:00

Rated 5 out of 5

Overall, very happy

I'm happy with the quality of the webcam, internal speaker, and display. I like the form-factor of the monitor as well as how easy it was to install. The monitor significantly reduces my cable management problems. Overall, given the features, I think the price is a good value for what you get.

AlanS3

2021-01-05T19:00:00

Rated 2 out of 5

klunky connection w/laptop

I purchased/used this monitor to connect to a ThinkPad X1 Carbon. To use the touch feature of the monitor, it requires BOTH a display port and large USB wired connection (already klunky). You cannot adjust the camera! If you want to use the integrated (decent) camera, you have to be ok with WIDE and badly colored video capture quality. You cannot adjust this in Lenovo Vantage as it will only pick up your laptop camera. Should be an easy software fix, but it's not there. The display looks nice (crisp), but do not buy if using with a laptop. Customer service to try to help resolve this issues was NON-EXISTENT. No one knew anything about it (I talked to at least 4 agents).

Jojojojojojojojo

2021-01-02T19:00:00

Rated 2 out of 5

Needs a newer computer to operate

I wrote and asked if this monitor would plugin and run on my 8-year-old Dell desktop computer with Windows 10. They stated that it would. However, it would not, even after purchasing nearly $100 in adaptors and cables. The supplied CD would not load the driver because the monitor would not turn on to follow the instructions. I tried to load using the old monitor, however, it would not do so. I had to buy a new desktop, now it works, somewhat.

1923Star

2020-12-30T19:00:00

Rated 1 out of 5

Disappointed all around

A few difficulties with the service and the device. Webcam didn't work, not able to operate in a wifi network- tech support was annoying, tedious and not helpful. Worst experience-everything was returned.

Kelli

2020-12-15T19:00:00

Rated 5 out of 5

Excellent addition to complete a Desktop Solution

We picked this Monitor combo up after purchasing a PC for our son. He needed a small compact / footprint with lots of monitor real estate and this was the answer. With a small pc unit, wireless keyboard and mouse combined with the matching monitor its an excellent solution to completing your system. Honestly if you do not capitalize on the features offered here with the integrated bracket to hold the processing unit out of view and the cable management, your really missing out on a well thought out design for a great desktop pc solution.

Robert T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

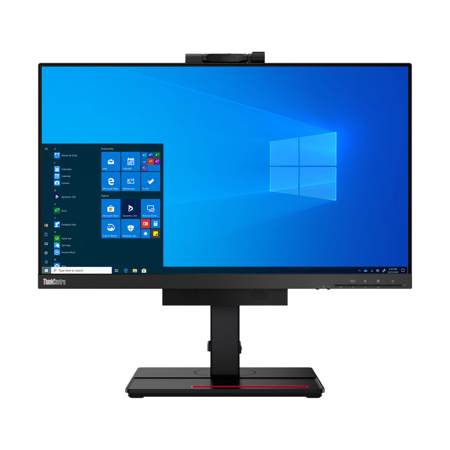

Lenovo ThinkCentre TIO 24 Gen 4 Specifications

Performance

Performance

Jump to...
  • Display Size

    23.8" (60.45cm)

  • View Area

    20.75 x 11.67" (527 x 296.5mm)

  • Panel

    In-Plane Switching

  • Backlight

    WLED

  • Aspect Ratio

    16:9

  • Resolution

    1920 x 1080

  • Pixel Pitch

    0.2745 x 0.2745mm

  • Dot / Pixel Per Inch

    92.6 dpi

  • View Angle (H / V)

    178 Degree / 178 Degree

  • Response Time

    4 ms (Extreme mode) / 6 ms (Typical mode) / 14 ms (Off mode)

  • Color Support

    16.7 Million

  • Refresh Rate

    60Hz

  • Brightness

    250 nits

  • Contrast Ratio

    1000:1

  • Color Gamut

    72%

  • Anti-glare

    Yes

  • Curvature

    None

  • Camera

    1080p camera

  • Microphone

    Dual Microphone

  • Speakers

    2W x 2, Stereo speakers

  • Power Consumption (Typical / Maximum)

    15W / 27W

  • Power Adapter

    90W 88%

  • Touchscreen

    None

  • Smart System

    None

  • Stand

    Tilt, Swivel, Pivot, Height Adjust Stand

  • Side Bezel Width

    2mm

  • Mounting

    Supports VESA mount 100mm

  • ThinkCentre M Series Support

    Tiny Support

Connectivity

Jump to...
  • USB Port

    USB 3.1 Gen 1 Type-A (only available when a Tiny is installed or a PC is connected)

  • Video Connector

    1x DP 1.2

  • Network Connectivity

    None

Certifications

Jump to...
  • Environmental Certification

    ENERGY STAR Certified, TCO 8.0, TCO Edge 2.0, EPEAT Silver, RoHS

  • Ergonomic Certification

    TUV Rheinland Low Blue Light, TUV Rheinland Flicker Free, TUV Rheinland Eye Comfort

  • Sync Technology

    None

Software

Jump to...
  • Operating System

    Support Windows 7, Windows 10

Physical

Jump to...
  • Color

    Black

  • Dimensions (H x W x D)

    With Stand: 21.25 x 9.07 x 23.5" (539.8 x 230.4 x 596.9 mm)

  • Weight

    Including Stand: 14.68 lbs (6.66kg)

  • UPC Code

    194778282031

About Lenovo ThinkCentre TIO 24 Gen 4

FEATURED REVIEWS

Good all in one setup

By User1234567891234

Built in speakers are adequate for video chat and voice calls.

Excellent addition to complete a Desktop Solution

By Robert T.

We picked this Monitor combo up after purchasing a PC for our son. He needed a small compact / footprint with lots of monitor real estate and this was the answer. With a small pc unit, wireless keyboard and mouse combined with the matching monitor its an excellent solution to completing your system. Honestly if you do not capitalize on the features offered here with the integrated bracket to hold the processing unit out of view and the cable management, your really missing out on a well tho...

View full Review

The TIO24 Gen 4 is compatible with Gen 2 and up ThinkCentre M Series Tiny PCs, Nano, and Thin Clients. Simply tuck the model of your choice into the back of the display, and within seconds you'll have a modular solution-not to mention deployment cost savings. You'll even enjoy improved performance from your PC units as TIO24 Gen 4 is equipped with a new back cover that improves heat dissipation.

With its three-sided borderless 23.8 inch FHD display, the TIO24 Gen 4 monitor is a crowd pleaser. It keeps your work area neat and tidy with a higher lift height, saving 18% more space than the previous generation, as well as tilt, pivot, and swivel to maximize comfort. Even store your mobile phone in the convenient phone holder, while the side USB-A 3.2 port provides a speedy connection for any peripherals you need to utilize. It's equipped with an improved 1080p webcam with optional RGBIR, which provides brighter resolution even in poorly lit rooms. It's also equipped with a dual microphone for VOIP so your colleagues can hear you clearly.

Purposeful design
The TIO Gen 4 offers an enhanced computing experience through improved thermal design. We redesigned the back thermal cover to achieve better heat dissipation when paired with Tiny desktops, which allows users to achieve optimal performance and productivity.

Relentless innovation
We are inspired by our customers and what they want from our devices. It shows in the fact that we pioneered the industry in TIO devices. This innovative combination allows businesses to upgrade monitors and PCs separately to save budget and offers users an even more clutter-free, space-saving design.

Trusted quality
The TIO Gen 4 is designed for performance and durability in any environment. These monitors endure extreme tests to ensure they can withstand vibration, drops, electrostatic discharge, heat, humidity, and more.

Efficient Upgrades
The TIO Gen 4 is perfect for large enterprises, government organizations, health care systems, and educational institutions who require powerful desktop performance coupled with upgrade efficiency. Because TIO allows you to purchase PCs and monitors separately, you can refresh either at a time that's best for your budget. The TIO Gen 4 comes in screen size, including 23.8 inches, that work with the latest generation of Tiny PCs as well as any Tiny going back to the second generation. Installation is easy. Just lift the back cover, insert the Tiny, and plug in the power cord. Upgrades are just as fast.

Space Savings
With an 18% smaller footprint than the previous generation, the TIO Gen 4 takes up even less desk space. As always, TIO Gen 4 offers much better cable management than the combination of a tower or small form factor PC plus monitor(s). When bundled with a Tiny, the TIO Gen 4 only uses one power cord total, while larger PCs with monitors can require two or more power cords. Additionally, the TIO Gen 4 can be used as a second, space saving display.

Enhanced User Experience
The TIO Gen 4 is designed with people in mind. The new stand features height adjustment up to 150 mm, which offers better ergonomics for taller users whether seated or standing. Eye Comfort Certification assures users of less eye strain and fatigue. And because our phones are always within reach, the TIO Gen 4 features a new cell phone holder integrated into the base.

Better Communications
In today's world of virtual meetings, the TIO 24 Gen 4 is your best asset with up to RGBIR or 1080p webcam and dual mics. The webcam on all TIO Gen 4 sizes rotates for the best view of the user. And of course, security is top of mind, especially when communications are involved. The TIO Gen 4 also features a ThinkShutter camera cover to provide better privacy and security when the webcam is not in use.

Lenovo ThinkCentre TIO 24 Gen 4 Features

  • Modular AIO by TIO+TINY
  • 23.8" FHD / In-Plane Switching technology / 3-side borderless panel
  • VOIP support
  • It's equipped with an improved 1080p webcam with optional RGBIR
  • The TIO Gen 4 offers an enhanced computing experience through improved thermal design
  • 250 nits Maximum Brightness
  • 1000:1 Contrast Ratio and 60Hz Refresh Rate
  • 178 Degree / 178 Degree Viewing Angle

Product Documents

User Manual

Key Features

  • Modular AIO by TIO+TINY
  • 23.8" FHD / In-Plane Switching technology / 3-side borderless panel
  • VOIP support
  • It's equipped with an improved 1080p webcam with optional RGBIR
  • The TIO Gen 4 offers an enhanced computing experience through improved thermal design
  • 250 nits Maximum Brightness

What's in the box:

  • Lenovo ThinkCentre Tiny-In-One 24 Gen 4 23.8" 16:9 Full HD IPS WLED LCD Monitor (Black)
  • Detachable Stand
  • Power Adapter
  • Power Cord
  • Driver CD
  • User Manual
  • Lenovo 3 Year Limited Warranty
