We have dozens of the M90n-1 tiny PC and they have performed well over the last 5 years. We began to replace this this year and found the ThinkCentre M90q Tiny Gen 3 to be a great replacement as well as a significant upgrade. The packaging is more robust and the processing improvement is substantial. I highly recommend this PC.
Yrrol
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
Intel Core i5-12500, 6C (6P + 0E) / 12T, P-core 3.0 / 4.6GHz, 18MB
Integrated Intel UHD Graphics 770
Intel Q670 Chipset
1x 8GB SO-DIMM DDR5-4800
Two DDR5 SO-DIMM slots, dual-channel capable
Up to 64GB DDR5-4800
256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Up to three drives, 1x 2.5" HDD + 2x M.2 SSD
2.5" HDD up to 1TB
M.2 SSD up to 2TB each
No card reader
None
High Definition (HD) Audio, Realtek ALC256VB codec
2Wx1
135W 89% Adapter
USB Traditional Keyboard, Black, English
USB Calliope Mouse, Black
One PCIe 4.0 x8, low-profile
Two M.2 PCIe Gen 4x4 slots (for SSD)
One M.2 slot (for WLAN)
Vertical Stand
None
None
None
None
None
Tiny (1L)
Integrated 100/1000M
Intel Wi-Fi 6E AX211, 11ax 2x2 + BT5.1, vPro
1x USB-C 3.2 Gen 2 (support data transfer)
1x USB 3.2 Gen 2
1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
1x headphone / microphone combo jack (3.5mm)
None
2x USB 3.2 Gen 1 (one supports Smart Power On)
2x USB 3.2 Gen 2
1x HDMI 2.1 TMDS
1x DisplayPort 1.4
1x Ethernet (RJ-45)
2x DP 1.2
None
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
No fingerprint reader
Kensington Security Slot, 3 x 7mm
Chassis Intrusion Switch
Intel vPro Enterprise
ENERGY STAR 8.0
EPEAT Silver Registered
ErP Lot 3
RoHS compliant
TCO Certified 9.0
MIL-STD-810H military test passed
Windows 11 Pro, English
None
Black
With rubber feet: 7.05 x 7.2 x 1.44" (179 x 182.9 x 36.5mm)
2.76 lbs (1.25kg)
196379570180
A Significant Upgrade to the M90n-1 Series
By Yrrol
We have dozens of the M90n-1 tiny PC and they have performed well over the last 5 years. We began to replace this this year and found the ThinkCentre M90q Tiny Gen 3 to be a great replacement as well as a significant upgrade. The packaging is more robust and the processing improvement is substantial. I highly recommend this PC.

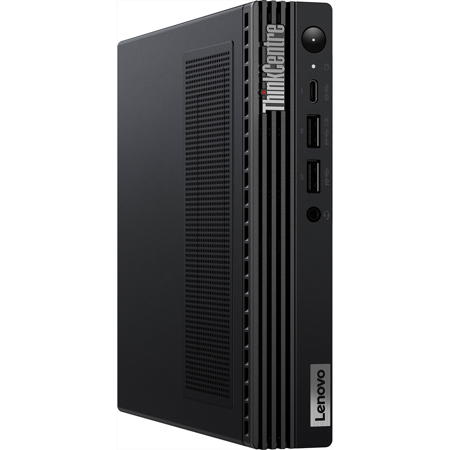

If you're seeking a compact yet powerful computing solution, look no further than the ThinkCentre M90q Gen 3 Tiny Desktop Computer. This sleek, black desktop is powered by an Intel Core i5-12500 3.0GHz processor, part of the 12th Gen Alder Lake family, renowned for its high-performance capabilities and efficient power consumption.
This high-performance desktop is not only stylish but also designed for optimum manageability. It boasts built-in driver support for older OS versions and a self-healing BIOS, ensuring seamless deployment, upgrades, and management. The inclusion of a PCIe expansion slot and an additional ethernet punch-out port further enhances its functionality.
The ThinkCentre M90q Gen 3 stands out for its toolless access to the SSD and memory module, making expansion and maintenance a breeze. It's designed for customization, allowing you to configure it to suit your workflow. With an abundance of enhanced IO ports, it easily connects with industry-specific equipment and legacy peripherals.
For those seeking a multi-display setup, this desktop can support up to four displays, enhancing your productivity. It also features Smart Power On, enabling you to power up the desktop with a simple keyboard shortcut.
The ThinkCentre M90q Gen 3 is not just about performance; it's also about durability. It's MIL-STD certified, having passed rigorous tests against real-world benchmarks for toughness, including temperature, pressure, humidity, vibration, and more.
The desktop also incorporates Lenovo's ThinkShield security, combining industry-leading hardware, software, services, and processes to protect your data and business. The Intel vPro platform offers below-the-OS protection, while the Trusted Platform Module (TPM) 2.0 chip encrypts your passwords. BIOS-based Smart USB Protection prevents unauthorized users from accessing your files, ensuring complete security.
In terms of cooling, the desktop features ICE 5.0 Cooling (Intelligent Cooling Engine), which maintains optimal temperatures for high-performance computing while controlling power consumption.
Whether you're setting it up on a desk, a ThinkCentre Vertical Stand, a wall, or bundling it with a Tiny-in-One (TIO), the ThinkCentre M90q Gen 3 Tiny Desktop Computer is a compact, stylish, and powerful solution for all your computing needs.
