What processor does the ThinkCentre M90q Gen 3 Tiny Desktop Computer have?

The ThinkCentre M90q Gen 3 Tiny Desktop Computer is powered by an Intel Core i7-12700 2.1GHz processor, which is part of the 12th generation of Intel processors.

What are the manageability features of the ThinkCentre M90q Gen 3 Tiny Desktop Computer?

The ThinkCentre M90q Gen 3 Tiny Desktop Computer is easy to deploy, upgrade, and manage. It has built-in driver support for older OS versions, a self-healing BIOS, a PCIe expansion slot, and an additional ethernet punch-out port.

Can the ThinkCentre M90q Gen 3 Tiny Desktop Computer be customized?

Yes, the ThinkCentre M90q Gen 3 Tiny Desktop Computer is designed for customization. It can be configured to optimize workflows and easily connects with industry-specific equipment and legacy peripherals through enhanced IO ports.

What security features does the ThinkCentre M90q Gen 3 Tiny Desktop Computer have?

The ThinkCentre M90q Gen 3 Tiny Desktop Computer is equipped with ThinkShield, an end-to-end security solution. It also has a Trusted Platform Module (TPM) 2.0 chip that encrypts passwords and BIOS-based Smart USB Protection to prevent unauthorized access.

What cooling system does the ThinkCentre M90q Gen 3 Tiny Desktop Computer use?

The ThinkCentre M90q Gen 3 Tiny Desktop Computer uses the Intelligent Cooling Engine (ICE) 5.0. This system ensures optimal temperatures for high-performance computing while carefully controlling power consumption.

Reviews about this item

Review Summary

2024-07-01T20:00:00

Rated 5 out of 5

A Significant Upgrade to the M90n-1 Series

We have dozens of the M90n-1 tiny PC and they have performed well over the last 5 years. We began to replace this this year and found the ThinkCentre M90q Tiny Gen 3 to be a great replacement as well as a significant upgrade. The packaging is more robust and the processing improvement is substantial. I highly recommend this PC.

Yrrol

2023-05-06T20:00:00

Rated 4 out of 5

TINY but powerful desktop replacement

Lacking a dedicated GPU this system is better suited for tasks that don't require moderate to intense graphics however out of the box the unit is able to run three displays via its trio of onboard Display Port ports. Design allows for installation of internal 2.5" SATA drive, as well as second M.2 drive unit. Secondary memory slot allows for expansion up to 40GB total (8+32) without having to replace factory installed memory. System performance is snappy. Included keyboard and mouse are functional, the former is has a squishy feeling owing to its rubber dome switch design.

OMM 0.

2022-11-10T19:00:00

Rated 5 out of 5

Great machine with great port options!

Strong, reliable machine. The USB and video out options are more-than-adequate!

JSSMITH

2022-08-21T20:00:00

Rated 5 out of 5

It rocks. Well Built, Powerful, & Fast.

Great machine. Ubuntu 22.04 ran perfectly OOTB. Running Home Assistant and other services, and everything is lightning fast and rock solid. Highly recommended.

Tolorin

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

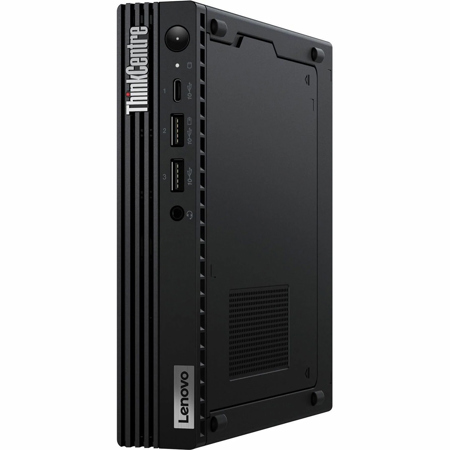

Lenovo ThinkCentre M90q Gen 3 Specifications

Performance

Performance

Jump to...
  • Processor

    Intel Core i7-12700, 12C (8P + 4E) / 20T, Max Turbo up to 4.9GHz, P-core 2.1 / 4.8GHz, E-core 1.6 / 3.6GHz, 25MB

  • Graphics

    Integrated Intel UHD Graphics 770

  • Chipset

    Intel Q670 Chipset

  • Memory

    1x 16GB SO-DIMM DDR5-4800

  • Memory Slots

    Two DDR5 SO-DIMM slots, dual-channel capable

  • Max Memory

    Up to 64GB DDR5-4800

  • Storage

    512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0

  • Storage Support

    Up to three drives, 1x 2.5" HDD + 2x M.2 SSD
    2.5" HDD up to 1TB
    M.2 SSD up to 2TB each

  • Card Reader

    No card reader

  • Optical

    None

  • Audio Chip

    High Definition (HD) Audio, Realtek ALC256VB codec

  • Speakers

    2Wx1

  • Power Supply

    230W 89% Adapter

  • Keyboard

    USB Calliope Keyboard, Black, English

  • Mouse

    USB Calliope Mouse, Black

  • Expansion Slots

    One PCIe 4.0 x8, low-profile
    Two M.2 PCIe Gen 4x4 slots (for SSD)
    One M.2 slot (for WLAN)

  • Stand

    Vertical Stand

  • Adapter Cage

    None

  • Toolless Chassis Screw

    None

  • Dust Filter

    None

  • Mounting

    None

  • IO Box

    None

  • Form Factor

    Tiny (1L)

Connectivity

Jump to...
  • Ethernet

    Integrated 100/1000M

  • WLAN + Bluetooth

    Intel Wi-Fi 6 AX201, 11ax 2x2 + BT5.1

  • Front Ports

    1x USB-C 3.2 Gen 2 (support data transfer)
    1x USB 3.2 Gen 2
    1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
    1x headphone / microphone combo jack (3.5mm)

  • Optional Front Ports (configured)

    None

  • Rear Ports

    2x USB 3.2 Gen 1 (one supports Smart Power On)
    2x USB 3.2 Gen 2
    1x HDMI 2.1 TMDS
    1x DisplayPort 1.4
    1x Ethernet (RJ-45)

  • Optional Rear Ports (configured)

    2x DP 1.2

  • Monitor Cable

    None

Security & Privacy

Jump to...
  • Security Chip

    Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

  • Fingerprint Reader

    No fingerprint reader

  • Physical Locks

    Kensington Security Slot, 3 x 7mm

  • Chassis Intrusion Switch

    Chassis Intrusion Switch

Manageability

Jump to...
  • System Management

    Non-vPro

Certifications

Jump to...
  • Green Certifications

    ENERGY STAR 8.0
    EPEAT Silver Registered
    ErP Lot 3
    RoHS compliant
    TCO Certified 9.0

  • Mil-Spec Test

    MIL-STD-810H military test passed

Software

Jump to...
  • Operating System

    Windows 11 Pro, English

  • Bundled Software

    None

Physical

Jump to...
  • Color

    Black

  • Dimensions (W x D x H)

    With rubber feet: 7.05 x 7.2 x 1.44" (179 x 182.9 x 36.5mm)

  • Weight

    2.76 lbs (1.25kg)

  • UPC Code

    197529942659

About Lenovo ThinkCentre M90q Gen 3

FEATURED REVIEWS

A Significant Upgrade to the M90n-1 Series

By Yrrol

We have dozens of the M90n-1 tiny PC and they have performed well over the last 5 years. We began to replace this this year and found the ThinkCentre M90q Tiny Gen 3 to be a great replacement as well as a significant upgrade. The packaging is more robust and the processing improvement is substantial. I highly recommend this PC.

Great machine with great port options!

By JSSMITH

Strong, reliable machine. The USB and video out options are more-than-adequate!

From its powerful performance to its compact design, the ThinkCentre M90q Gen 3 Tiny Desktop Computer is a high-performance machine that's built for efficiency and reliability. Powered by an Intel Core i7-12700 2.1GHz processor, this compact powerhouse is part of the 12th generation of Intel processors, ensuring it can handle demanding tasks with ease.

The ThinkCentre M90q Gen 3 is not just about power, it's also designed for convenience and manageability. It's easy to deploy, upgrade, and manage, thanks to features like built-in driver support for older OS versions and a self-healing BIOS. The inclusion of a PCIe expansion slot and an additional ethernet punch-out port further enhances its versatility.

This tiny desktop computer is also designed for customization. It can be configured to optimize workflows, and it easily connects with industry-specific equipment and legacy peripherals through an abundance of enhanced IO ports. With the ability to add up to four displays, you can increase functionality and productivity.

The ThinkCentre M90q Gen 3 is loaded with practical features like Smart Power On, which allows you to turn on the desktop with a simple keyboard shortcut. It's also designed to fit anywhere, whether on a desk, a ThinkCentre Vertical Stand, up on a wall, or bundled with a Tiny-in-One (TIO).

The Intelligent Cooling Engine (ICE) 5.0 ensures your ThinkCentre maintains optimal temperatures for high-performance computing while carefully controlling power consumption. The M90q Gen 3 tiny desktop is also built to last, with MIL-STD certification against multiple real-world benchmarks for toughness and durability.

Security is a top priority for Lenovo, and the ThinkCentre M90q Gen 3 is no exception. It's equipped with ThinkShield, an end-to-end security solution that combines industry-leading hardware, software, services, and processes to protect your data and business. The Intel platform provides below-the-OS protection, and each ThinkCentre device is shipped with a Trusted Platform Module (TPM) 2.0 chip which encrypts your passwords, while BIOS-based Smart USB Protection prevents unauthorized users from accessing your files.

In conclusion, the ThinkCentre M90q Gen 3 Tiny Desktop Computer is a fast, reliable, and high-performance machine that's designed to meet your computing needs while fitting into any space.

Lenovo ThinkCentre M90q Gen 3 Features

  • Tiny desktop compact size with reduced footprint, perfect for users with limited desk space
  • Features Latest Intel Core i7-12700 2.1GHz processor delivers outstanding performance
  • 16GB DDR5 RAM Memory Provides Enhanced multitasking and Improved performance
  • 512GB SSD gives significantly faster speed and improved overall system responsiveness
  • Efficiently manage multi-tasking with Windows 11 Pro, also provide performance & stability to your device
  • Powerful Intel UHD graphics 770 delivering stunning visuals and smooth performance
  • 7x USB, 1x DisplayPort & 1x HDMI ports that enhance connectivity, functionality and versatility
  • USB Calliope Keyboard enabling efficient typing suitable for various workspaces
  • 2.76 lbs Desktop that save space and can move effortlessly

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Powerful Intel Core i7-12700 2.1GHz processor for high-performance computing
  • Compact design with easy deployment and upgrade features for optimal manageability
  • Customizable configurations with enhanced IO ports for industry-specific equipment and peripherals
  • Supports up to four displays for increased functionality and productivity
  • Intelligent Cooling Engine (ICE) 5.0 for optimal temperature and power control
  • End-to-end ThinkShield security with Trusted Platform Module (TPM) 2.0 chip for data protection

What's in the box:

  • Lenovo ThinkCentre M90q Gen 3 Tiny Desktop Computer (Black)
  • Keyboard
  • Mouse
  • Power Adapter
  • Lenovo 3 Year Limited Warranty
