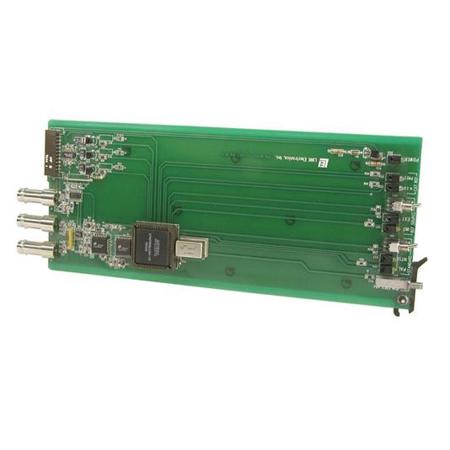

Link Electronics Gen-Lock to Digital Blackburst Module, Digital Input & 2x Buffered Outputs

SKU: LE812OPD MFR: 812-OP/D
Earn VIP Reward Points

Key Features

  • Gen-Lock module ensures stable video sync with digital blackburst for broadcast quality.
  • Digital input processing maintains signal integrity, crucial for professional video setups.
  • Dual buffered outputs provide reliable signal distribution, enhancing system versatility.
  • SMPTE compliant outputs guarantee compatibility with industry-standard video equipment.
  • Achieve superior video signal stability with precise gen-lock functionality in your studio.
  • Minimize jitter with advanced tech, ensuring clean video output for critical applications.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Gen-Lock Module Specifications

  • Input Video: Input coupling

    Single-ended AC coupled

  • Input Video: Video Level

    800mV +/- 10%

  • Input Video: Impedance

    75Ohms +/- 1% source terminated

  • Output Video: Impedance

    75Ohms +/- 1% source terminated (on BNC #2 & #3)

  • Output Video: Number of Outputs

    2 (on BNC #2 & #3)

  • Output Video: Standards

    SMPTE: 259M-C; 270Mb/s, 525/625 Component (on BNC #2 & #3)

  • Output Video: Connector

    BNC (on BNC #2 & #3)

  • Output Video: Return Loss

    >25dB (on BNC #2 & #3)

  • Output Video: Signal Level

    800mV +/- 10% (on BNC #2 & #3)

  • Output Video: DC Offset

    0V +/- 0.1V (on BNC #2 & #3)

  • Output Video: Rise Time

    600pS (20 to 80% Amplitude) (on BNC #2 & #3)

  • Output Video: Fall Time

    500pS (20 to 80% Amplitude) (on BNC #2 & #3)

  • Output Video: Low frequency jitter

    0.08 unit intervals (on BNC #2 & #3)

  • Output Video: Alignment jitter

    0.16 unit intervals (on BNC #2 & #3)

  • Temperature

    Ambient: 0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10% to 90% non-condensing

  • Power

    3.8 Watts

  • Front Panel Led Indicators

    Power: Green/ power is on
    Video presence: Green/video present Red/no video
    H-Lock: Green/horizontal is locked to incoming H/Red horizontal is unlocked
    EXT: Green/module is in AUTO mode (SW2 placed in AUTO mode)
    INT: Yellow/module is in INT mode (SW2 placed in INT.mode)
    NTSC: Green/SW1 is selecting NTSC
    PAL: Yellow/SW1 is selecting PAL

  • Dimensions (L x W)

    10 x 4.27" / 254.00 x 108.46mm

  • Weight

    5.5oz / 155.92g

About Link Electronics Gen-Lock Module

Discover the precision and reliability of the 812-OP/D Digital Gen-Lock to Blackburst Module, a critical component for broadcast and video production professionals who require seamless synchronization with external sources. This advanced module is designed to accept a digital blackburst signal, ensuring that all connected modules within the system are perfectly gen-locked to the reference in slot number two.

The 812-OP/D module is engineered to achieve a high level of stability by stripping the horizontal sync from the incoming blackburst signal and performing a phase and frequency lock to a highly stable 27 MHz Voltage-Controlled Crystal Oscillator (VCXO). The module's phase-lock-loop is equipped with an intuitive LED indicator, which illuminates green to signal a successful horizontal lock and turns red to indicate the absence of a lock.

At the heart of the 812-OP/D's functionality is a complex programmable logic device that not only generates all the necessary timing pulses for the other modules but also processes stripped vertical sync and field identification pulses. This meticulous processing ensures that the output pulses are perfectly timed and phased with the incoming video signal.

Additionally, the 812-OP/D module boasts a video presence detector, which plays a pivotal role in determining whether the module operates in genlock or free-run mode. The bicolor LED serves as a video presence indicator, glowing green when video is detected and turning red when absent. In the event of no video input, the module seamlessly transitions to a free-run frequency condition, with a front panel control available to adjust the VCXO's DC voltage, thereby altering the frequency of the 27 MHz oscillator.

The module offers flexible reference source selection through three distinct methods: automatic switching to an internal reference source in the absence of video, manual switching via the front panel AUTO/INT control, or by applying video with the AUTO/INT switch set to AUTO mode for proper genlock operation. When operating on its internal oscillator, the module's front panel yellow LED indicator lights up, signifying that it is free-running.

Furthermore, the 812-OP/D integrates seamlessly with the 812-OP/C genlock module and the PCO-818 automatic pulse change-over modules, which can function independently or in synchronized operation. For enhanced reliability, two PCO-818 change-over chassis can be interlinked, allowing all modules to switch simultaneously in the event of a failure in the master generator.

Incorporate the 812-OP/D Digital Gen-Lock to Blackburst Module into your setup for a robust and synchronized video production environment, ensuring that every frame is in perfect harmony with your external reference sources.

Link Electronics Gen-Lock Module Features

  • High-stability genlock synchronization with external digital blackburst sources
  • LED indicators for phase-lock-loop status and video presence detection
  • Advanced programmable logic device for accurate timing pulse generation
  • Flexible reference source selection with auto-switching and manual control options
  • Seamless integration with other genlock modules and automatic pulse change-over units
  • Front panel control for fine-tuning the VCXO's frequency in free-run mode

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Gen-Lock module ensures stable video sync with digital blackburst for broadcast quality.
  • Digital input processing maintains signal integrity, crucial for professional video setups.
  • Dual buffered outputs provide reliable signal distribution, enhancing system versatility.
  • SMPTE compliant outputs guarantee compatibility with industry-standard video equipment.
  • Achieve superior video signal stability with precise gen-lock functionality in your studio.
  • Minimize jitter with advanced tech, ensuring clean video output for critical applications.

What's in the box:

  • Link ELectronics Gen-Lock to Digital Blackburst Module
  • Link Electronics 10 Year Limited Warranty
