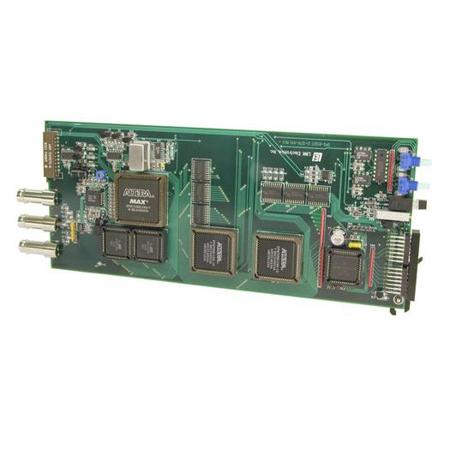

Link Electronics 812-OP/F SD SDI Test Signal Generator

SKU: LE812OPF MFR: 812-OP/F
Earn VIP Reward Points

Key Features

  • Ensure optimal sound quality with this SD SDI test signal generator for audio clarity.
  • Versatile SMPTE compliance: Supports 259M-C, 270Mb/s, and 525/625 component standards.
  • Enjoy ease of use with intuitive horizontal & vertical phasing controls; infinite window.
  • Durable design: Operates reliably from 0 to 50 degrees C, ensuring consistent performance.
  • Low noise output: Minimizes jitter with low frequency at 0.08 unit intervals for clean signals.
  • Excellent value: Features 3 serial video outputs via BNC with >25dB return loss.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics 812-OP/F Specifications

  • Number of Serial Video Outputs

    3

  • Serial Video Outputs: Standards

    SMPTE: 259M-C, 270Mb/s, 525/625 Component

  • Serial Video Outputs: Connector

    BNC

  • Serial Video Outputs: Impedance

    75Ohms terminated into a 1% load

  • Serial Video Outputs: Return Loss

    >25dB

  • Serial Video Outputs: Signal Level

    800mV +/- 10%

  • Serial Video Outputs: DC Offset

    0V +/- 0.1V

  • Serial Video Outputs: Rise Time

    600pS (20 to 80% Amplitude)

  • Serial Video Outputs: Fall Time

    500pS (20 to 80% Amplitude)

  • Serial Video Outputs: Low freq. jitter

    0.08 unit intervals

  • Serial Video Outputs: Alignment jitter

    0.16 unit intervals

  • Horizontal Phasing Controls

    Infinite Window
    Resolution: 37nS/ Increment

  • Vertical Phasing Controls

    Infinite Window
    Resolution: 1 line or 63.5 uS/ Increment

  • Reference Inputs: Signal Type

    Horizontal Blanking, Vertical Blanking, Field Identification

  • Front Panel LED Indicators: Power

    Green/In the pattern select switch

  • Front Panel LED Indicators: H-Lock

    Green/horizontal is locked to incoming H/Red horizontal is unlocked

  • Front Panel LED Indicators: NTSC

    Green/SW1 is selecting NTSC

  • Front Panel LED Indicators: PAL

    Yellow/SW1 is selecting PAL

  • Power

    4.2W

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10 to 90% non-condensing

  • Dimensions (L x W)

    10 x 4.27" / 254.00 x 108.46mm

  • Weight

    8oz / 226.80g

About Link Electronics 812-OP/F

Take your video and audio production to the next level with the sophisticated SPG-812 (OP/F) SD SDI Test Signal Generator, a cutting-edge addition to the Genflex family of modules. This advanced digital test set module is designed for professionals seeking precision and reliability in their test signal generation. With the ability to select from sixteen distinct digital video test patterns, the SPG-812 (OP/F) offers versatility and ease of use, whether through its intuitive front panel switch or the remote control unit, the 812TRC.

The SPG-812 (OP/F) seamlessly integrates into your existing setup, allowing for genlock synchronization with incoming video when paired with either an analog SPG-812 (OP/C) or a digital SPG-812 (OP/D) genlock module in slot #2 of the SPG-812 chassis. This module is responsible for distributing timing pulses across the motherboard bus, ensuring that all counters within the complex programmable logic devices are perfectly timed with an external reference.

Designed for flexibility, the SPG-812 (OP/F) can be installed in any slot of the chassis, except for those designated for the digital/analog audio test set and power supply. When occupying the genlock slot #1, it acts as the master, dictating the timing pulses for the motherboard and synchronizing all slaved modules to it. Note that in this position, the SPG-812 (OP/F) relies solely on its internal time base or free run mode, as it cannot genlock to external video.

In free run mode, the frequency of the VCXO is finely adjustable via a front panel control, ensuring that your test signals are always on point. Each output module supports both 525/60 (NTSC) and 625/50 (PAL) operations, with three outputs per module and individual infinite timing adjustments for unparalleled control.

The SPG-812 (OP/F) also features a dual audio tone generator capable of producing Silent, 0dB, -10dB, and -20dB levels, adding another layer of testing capability. The 812-OP/F plug-in module delivers 16 pristine SDI serial digital (SDI) test signals, including 100% and 75% color bars, SMPTE color bars, various step patterns, ramps, pulse and bar, field square wave, SDI pathological pattern, multiburst, line sweep, and solid color fields.

For uninterrupted operation, the PCO-818 automatic pulse change-over modules offer both independent and synchronized operation. Link two PCO-818 change-over chassis to ensure that all modules switch simultaneously in the event of a failure in the master generator, providing you with a fail-safe mechanism for continuous performance.

The SPG-812 (OP/F) SD SDI Test Signal Generator is the epitome of high-tech testing equipment, designed for professionals who demand precision, flexibility, and reliability in their video and audio production environments.

Link Electronics 812-OP/F Features

  • Advanced SD SDI Test Signal Generator with 16 selectable digital video test patterns
  • User-friendly interface with front panel switch and remote control for easy operation
  • Compatible with NTSC and PAL systems, offering three outputs with individual timing adjustments
  • Dual audio tone generator for comprehensive audio testing
  • Genlock synchronization capabilities for precise timing with external reference
  • Fail-safe operation with PCO-818 automatic pulse change-over modules for uninterrupted performance

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure optimal sound quality with this SD SDI test signal generator for audio clarity.
  • Versatile SMPTE compliance: Supports 259M-C, 270Mb/s, and 525/625 component standards.
  • Enjoy ease of use with intuitive horizontal & vertical phasing controls; infinite window.
  • Durable design: Operates reliably from 0 to 50 degrees C, ensuring consistent performance.
  • Low noise output: Minimizes jitter with low frequency at 0.08 unit intervals for clean signals.
  • Excellent value: Features 3 serial video outputs via BNC with >25dB return loss.

What's in the box:

  • Link ELectronics 812-OP/F SD SDI Test Signal Generator
  • Link Electronics 10 Year Limited Warranty
