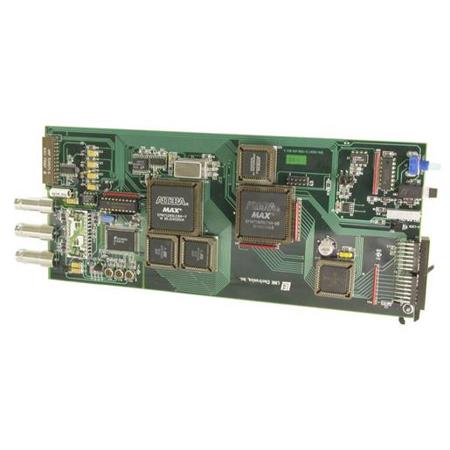

Link Electronics 812-OP/G Analog Test Signal Generator

SKU: LE812OPG MFR: 812-OP/G
Earn VIP Reward Points

Key Features

  • Generate precise analog video signals with this reliable test signal generator.
  • Ensure video quality with -70dB signal-to-noise ratio for clear, accurate output.
  • Test NTSC/PAL video systems using selectable standards for versatile applications.
  • Analyze video signals with low differential phase (0.5 deg) and gain (0.9%).
  • Achieve accurate luminance testing with a rise time of 140ns +/-20ns.
  • Simplify signal analysis using component, composite, & RGB analog video outputs.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics 812-OP/G Specifications

  • Analog Video Outputs: Formats

    Composite video and S-video (Y/C): BNC Connector Shared with Composite Video
    Component analog video (SMPTE Y, Pb, Pr): BNC Connectors
    Red, Green, Blue (RGB): BNC Connectors
    Red, Green + Sync, Blue (RGsB): BNC Connectors

  • Video Standard

    NTSC / PAL Selectable

  • Connector

    75Ohms BNC

  • Signal-to-Noise Ratio

    -70dB, A Weighted

  • Output Return Loss

    -40dB at 3.5MHz

  • Differential Phase

    0.5 deg., Typical

  • Differential Gain

    0.9%, Typical

  • Luminance Rise Time

    140ns +/-20ns

  • Group Delay

    +/-5ns

  • Frequency Response

    0.1dB to 5.5MHz

  • Generator Bit Resolution

    10Bit

  • Generator Sample Rate

    13.5MHz Luminance, 6.75MHz Chroma

  • Horizontal Phasing Controls

    Infinite Window
    Resolution: 37nS/ Increment

  • Vertical Phasing Controls

    Infinite Window
    Resolution: 1 line or 63.5 uS/ Increment

  • Reference Inputs: Signal Type

    Horizontal Blanking, Vertical Blanking, Field Identification

  • Front Panel LED Indicators: Power

    Green/In the pattern select switch

  • Front Panel LED Indicators: H-Lock

    Green/horizontal is locked to incoming H/Red horizontal is unlocked

  • Front Panel LED Indicators: NTSC

    Green/SW1 is selecting NTSC

  • Front Panel LED Indicators: PAL

    Yellow/SW1 is selecting PAL

  • Power

    4.2W

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10 to 90% non-condensing

  • Dimensions (L x W)

    10 x 4.27" / 254.00 x 108.46mm

  • Weight

    8oz / 226.80g

About Link Electronics 812-OP/G

While the SPG-812 Analog Test Signal Generator, also known as 812AT or OP/G, is a crucial component of the GenFlex product lineup, it stands out for its advanced features and reliable performance. This high-quality test set module from Link Electronics offers the flexibility to choose from sixteen different video test patterns. These selections can be made either directly from the front panel switch or remotely via the SPG-812TRC control unit.

The SPG-812 Analog Test Signal Generator is capable of producing patterns in four distinct formats: Composite video plus a Y/C pair, SMPTE Component video: Y-Pr-Pb, Red, Green and Blue (RGB), and Green + Sync, Blue and Red. All patterns are created at a 10-bit resolution, utilizing high-performance hybrid post-filters with integrated output amplifiers. The device supports both NTSC and PAL video standards, making it a versatile tool for a wide range of electronic testing needs.

When genlocking to incoming video, the SPG-812 chassis can accommodate either an analog (812AG or OP/C) or a digital genlock module (812DG or OP/D) in the bottom slot adjacent to the power supply. The Genlock module provides the necessary timing pulses on the motherboard buss, enabling each subsequent module to lock to a single reference.

The SPG-812 Analog Test Signal Generator offers sophisticated "infinite window" timing of horizontal and vertical, as well as 360-degree subcarrier phasing. All timing information is securely stored in battery backup RAM within the unit's onboard microcontroller. This durable test set module can be installed in any slot within the SPG-812 chassis, except for the slot reserved for the audio module.

The 812-OP/G plug-in module provides 16 analog test signals, including 100% color bars, SMPTE color bars, 5-Step modulated stair step, and more. It uses a single 2-bit mechanical encoder to control all module functions, including system timing and pattern selection. An eight-character alpha-numeric display offers a user-friendly menu of options for each module parameter.

In conclusion, the SPG-812 Analog Test Signal Generator is a reliable, advanced, and user-friendly solution for generating test signals in the electronics industry. Its high-quality construction and sophisticated features make it a standout choice for professionals seeking a dependable test pattern generator.

Link Electronics 812-OP/G Features

  • High-quality analog test signal generator from reputable brand, Link Electronics
  • Offers 16 distinct video test patterns, selectable via front panel switch or remote control
  • Supports both NTSC and PAL video standards for versatile use
  • Features advanced "infinite window" timing of horizontal and vertical, plus 360-degree subcarrier phasing
  • Equipped with an eight-character alpha-numeric display for user-friendly operation
  • Durable construction suitable for professional use in the electronics industry

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Generate precise analog video signals with this reliable test signal generator.
  • Ensure video quality with -70dB signal-to-noise ratio for clear, accurate output.
  • Test NTSC/PAL video systems using selectable standards for versatile applications.
  • Analyze video signals with low differential phase (0.5 deg) and gain (0.9%).
  • Achieve accurate luminance testing with a rise time of 140ns +/-20ns.
  • Simplify signal analysis using component, composite, & RGB analog video outputs.

What's in the box:

  • Link ELectronics 812-OP/G Analog Test Signal Generator
  • Link Electronics 10 Year Limited Warranty
