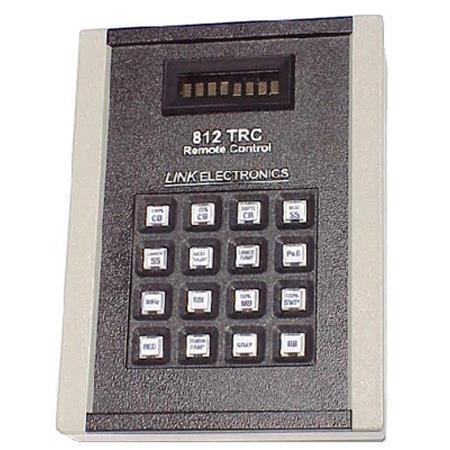

Link Electronics 812TRC Remote Control for OP/F, OP/G, RS-422 Test Modules

SKU: LE812TRC MFR: 812-TRC
Earn VIP Reward Points

Key Features

  • Control OP/F, OP/G modules with the Link Electronics 812TRC remote control unit.
  • Enjoy seamless RS-485 interface connectivity for your audio signal processors setup.
  • Clearly view settings on the bright, 8-character alpha-numeric LED matrix display.
  • Rely on durable, tactile push buttons, tested for 3 million operations!
  • Easily integrate with a 9VDC power input, consuming only 1.35W for efficiency.
  • Operate confidently in diverse conditions, from 0 to 50°C ambient temperature.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics 812TRC Specifications

  • Communications: Interface

    RS-485

  • Communications: Impedance

    110Ohms

  • Communications: Protocol

    9600, n, 8, 1

  • Communications: Connector

    3-Position Terminal Block

  • Display: Format

    8-Character Alpha-Numeric

  • Display: Type

    Light-emitting Diode Matrix

  • Push Buttons

    Tactile, Legend

  • Push Buttons: Contacts

    Stainless Steel Snap-Dome

  • Push Buttons: Estimated Life-span

    3 Million Operation Buttons

  • Power: Input Voltage

    9VDC Nominal

  • Power: Current

    150mA

  • Power

    1.35W

  • Ambient Temperature

    0 to 50 deg. ambient

  • Humidity

    0 to 90% non-condensing

  • Dimensions (H x W x D)

    3.5 x 5 x 7" / 88.90 x 127.00 x 177.80mm

  • Weight

    17.5oz / 496.12g

About Link Electronics 812TRC

Are you looking for a durable and high-tech remote control solution for your OP/F, OP/G, and RS-422 test modules The 812TRC Remote Control is engineered to seamlessly integrate with your SPG-812 digital and analog test set modules, providing a user-friendly and convenient interface for your testing needs.

With its intuitive 4x4 keypad, the 812TRC allows you to effortlessly select from sixteen distinct video test patterns with just a simple button press. This advanced remote control boasts a robust control interface utilizing standard RS-485 drivers and receivers, ensuring reliable communication over distances up to 4000 feet (1220m). This feature is particularly beneficial for professionals who require consistent performance in various working environments.

The 812TRC's compact desktop case is not only space-efficient but also includes an 8-character alpha-numeric status display that provides real-time feedback as you operate the test generator. This immediate visual confirmation of the test signal output enhances the efficiency of your workflow.

Customization is a key advantage of the 812TRC, as it allows for specific modules to be independently controlled via a simple jumper adjustment on the test module. This level of control is essential for users who need to tailor their testing procedures to specific requirements.

The remote control unit comes pre-loaded with a comprehensive array of test signals, including 100% and 75% Color Bars, SMPTE and EBU Color Bars with White Flag, Modulated and Un-Modulated Stair Steps, Modulated and Un-Modulated Ramps, and Pulse & Bar. Additionally, the 812TRC can download custom patterns from the pattern generator module via the RS-485 link, ensuring that any specialized patterns are accessible at the remote control.

To maximize longevity and reliability, the 812TRC is equipped with built-in electrostatic discharge (ESD) protection. The front panel keypad is designed with stainless steel contact domes, each rated for 3 million operations, underscoring the product's commitment to durability.

The 812TRC Remote Control is a vital component of the GenFlex family of products, designed to offer a blend of high-tech convenience and reliable performance. Whether you're in a broadcast studio, research facility, or any setting requiring precise video test pattern generation, the 812TRC is the specialized solution that professionals trust.

Link Electronics 812TRC Features

  • High-tech remote control designed specifically for OP/F, OP/G, and RS-422 test modules
  • User-friendly 4x4 keypad for easy selection of 16 different video test patterns
  • Reliable communication over distances up to 4000 feet with standard RS-485 drivers and receivers
  • Compact desktop case with an 8-character alpha-numeric status display for real-time feedback
  • Customizable control of specific modules for tailored testing procedures
  • Built-in electrostatic discharge (ESD) protection and durable stainless steel contact domes for long-lasting use

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Control OP/F, OP/G modules with the Link Electronics 812TRC remote control unit.
  • Enjoy seamless RS-485 interface connectivity for your audio signal processors setup.
  • Clearly view settings on the bright, 8-character alpha-numeric LED matrix display.
  • Rely on durable, tactile push buttons, tested for 3 million operations!
  • Easily integrate with a 9VDC power input, consuming only 1.35W for efficiency.
  • Operate confidently in diverse conditions, from 0 to 50°C ambient temperature.

What's in the box:

  • Link ELectronics 812TRC Remote Control
  • Link Electronics 10 Year Limited Warranty
