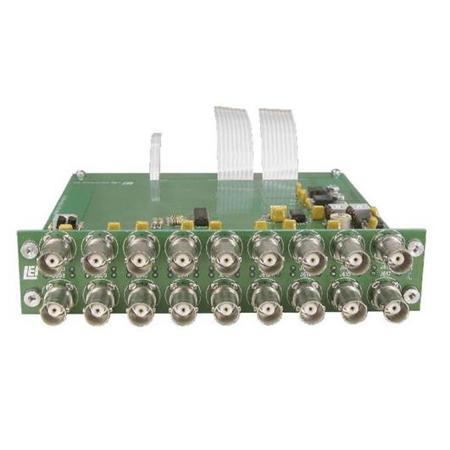

Link Electronics 816-OP/A 16x1 Analog Video Switching Matrix

Under the umbrella of sophisticated video management solutions, the 816-OP/A 16x1 Analog Video Switching Matrix stands out as an advanced, high-tech piece of equipment designed for professional video applications. This state-of-the-art switching matrix is an essential component for those requiring a seamless and efficient method to manage multiple analog video sources.

The 816-OP/A is a specialized analog video plug-in board that, when combined with the AVS-816 chassis, forms a video-only switcher capable of handling up to 16 input sources. This innovative system is ideal for users looking to create a custom switcher format, offering the flexibility to select between analog or digital configurations for both video and audio signals.

For audio, the system can be tailored to support AES or Analog formats, with additional options for BNC unbalanced or 3-pin Weco balanced connectors in the case of AES audio. This versatility ensures that the switching matrix can adapt to a variety of professional audio-visual setups, from control rooms to security systems.

The 816-OP/A Analog Video Switching Matrix is part of a larger suite that includes options for SD/SDI and HD/SDI video switching, such as the 816-OP/C and 816-OP/HD, respectively. This allows users to choose the perfect configuration for their specific needs, whether it's for analog, standard definition, or high-definition video switching.

Complementing the hardware, software is provided to enable control of up to 32 switchers from a single computer, streamlining the management of complex video systems. For those requiring remote operation, the PSR-816 remote control is available, offering additional convenience and control.

The plug-in options for the AVS-816 series are comprehensive, including:
- AVS-816, the chassis with power supply and motherboard
- 816-OP/A, the Analog video matrix with two outputs
- 816-OP/B, the Analog audio matrix with two outputs
- 816-OP/C, the SD SDI video matrix with one SD SDI and one analog output
- 816-OP/D, the AES audio matrix with one AES and one analog output
- 816-OP/E, the AES rear panel for Weco 3-pin connectors
- 816-OP/F, the AES rear panel for BNC connectors
- 816-OP/G, the GPI option
- 816-OP/HD, the HD/SD SDI video matrix with two outputs

For detailed specifications and to understand how the AVS-816/SA analog switcher or AVS-816/SD for SD/SDI system switcher can fit into your video management system, please refer to the data sheets provided. The 816-OP/A 16x1 Analog Video Switching Matrix is engineered to meet the demands of professional environments where precision and reliability are paramount.
