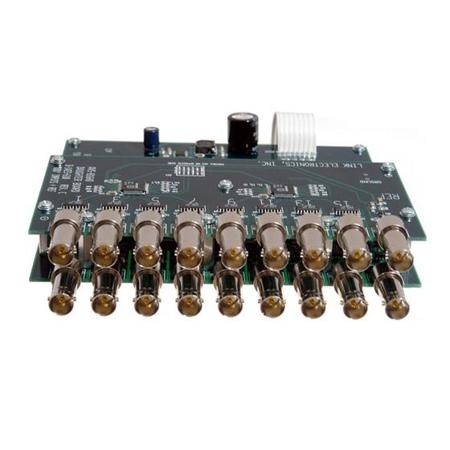

Link Electronics 816-OP/HD 16x1 HD/SD-SDI Video Switching Matrix

SKU: LE816OPHD MFR: 816-OP/HD
Earn VIP Reward Points

Key Features

  • Seamless HD/SD-SDI video switching with this 16x1 matrix for professional setups.
  • Ensure a reliable connection with automatic equalization up to >30dB on SDI outputs.
  • Enjoy multi-device compatibility, supporting both Component 270Mb/s and 1.485Gb/s.
  • Easy setup with AC-coupled SDI video inputs and single HD/SDI output.
  • Maintain high resolution video quality with >18dB return loss on all SDI ports.
  • Compact design (1.37 x 6.25 x 7") makes it a good price for broadcast environments.
