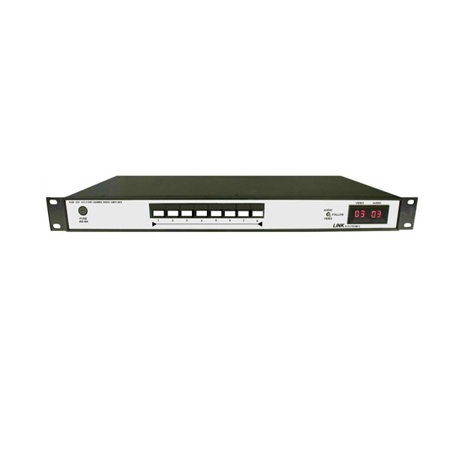

Link Electronics ASW-824 8x1 1RU Four Channel Audio Switcher with Buttons

SKU: LEASW824 MFR: ASW-824
Earn VIP Reward Points

Key Features

  • Easily manage audio with the Link Electronics audio switcher, featuring simple button controls.
  • This 8x1 audio switcher offers balanced differential input for pristine sound quality, always reliable.
  • Enjoy superior audio clarity with a frequency response of +0.02dB from 20Hz to 20KHz, low latency.
  • Perfect for professional setups, this audio component has >100dB A Wtd signal-to-noise ratio.
  • The ASW-824 ensures minimal distortion with <0.004% THD at 20KHz, delivering clean audio output.
  • This affordable audio solution provides >95dB crosstalk rejection at 20KHz for clear audio channels.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics ASW-824 Specifications

  • Number of Inputs

    32, Each button selects four channels of audio

  • Input: Impedance

    20kOhms, Looping

  • Input: Configuration

    Balanced Differential

  • Input: Max Level

    +24dBu

  • Number of Outputs

    Four

  • Output: Level

    +24dBu

  • Output: Impedance

    66Ohms +/-5%

  • Output: Frequency Response

    +0.02dB, 20Hz to 20KHz

  • Output: Insertion Gain

    +/-0.05dB

  • Output: Slew Rate

    >30V/, us Balanced

  • Output: Signal-to-Noise

    >100dB A Wtd +8dBu

  • Output: THD

    <0.004% at 20KHz

  • Output: Crosstalk

    95dB at 20KHz

  • Output: DC Offset

    <10mV

  • Output: Common Mode Rejection

    >80dB at 20KHz

  • Output Isolation

    >100dB at 20KHz

  • Power: Input

    120 / 240VAC+/-10%

  • Power

    7W

  • Ambient Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    0 to 90% non-condensing

  • Dimensions (H x W x D)

    1.75 x 19 x 8.7" / 44.45 x 482.6 x 220.98mm

  • Weight

    6.5lbs / 2.95kg

About Link Electronics ASW-824

You can rely on the ASW-824 8x1 1RU Four Channel Audio Switcher with Buttons for professional-grade audio switching needs. This advanced audio switcher is designed for the discerning user who demands high-quality and durable audio equipment.

The ASW-824 boasts high-impedance balanced input circuits that effectively reduce loading effects and noise on incoming signals, ensuring crystal clear audio every time. With a low output impedance of 66Ohms, it can provide a maximum level of +24dBu, offering superior audio output quality.

The user-friendly design of the ASW-824 includes printed circuit spring terminal blocks for both input and output connections. These terminal blocks offer reliable clamping action for secure and reliable operation, thanks to a force amplifying hinge motion.

For seamless integration with your existing setup, the ASW-824 features a nine-pin female D connector for RS-232 control, which is standard in all units. This provides a serial interface to a computer or modem, enhancing its versatility.

The ASW-824 stands out with its eight high-quality key switches on the front panel. These push buttons allow for vibration-free operation, with each button selecting four channels of audio. A 7-segment LED readout on the front panel displays the source audio number selected, making it easy to monitor your audio routing.

Designed for both standalone and interfaced operation, the ASW-824 can be used with additional switchers as multiple source routers. You can control multiple switchers with a single remote control panel, model PSR-824, for added convenience.

The ASW-824 is an audio-only switcher that combines digital switching logic with high-performance audio circuitry. This forms the foundation for the next generation of audio routing switchers, making it a valuable addition to any professional audio setup.

Link Electronics ASW-824 Features

  • RS-232
  • 32 Inputs
  • Balanced Differential
  • Output Impedance, 66Ohms
  • Digital Switching
  • One Rack Unit Cabinet
  • 7 Seg LED Reads Source

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Easily manage audio with the Link Electronics audio switcher, featuring simple button controls.
  • This 8x1 audio switcher offers balanced differential input for pristine sound quality, always reliable.
  • Enjoy superior audio clarity with a frequency response of +0.02dB from 20Hz to 20KHz, low latency.
  • Perfect for professional setups, this audio component has >100dB A Wtd signal-to-noise ratio.
  • The ASW-824 ensures minimal distortion with <0.004% THD at 20KHz, delivering clean audio output.
  • This affordable audio solution provides >95dB crosstalk rejection at 20KHz for clear audio channels.

What's in the box:

  • Link ELectronics ASW-824 8x1 1RU Four Channel Audio Switcher with Buttons
  • Power Cord
  • Link Electronics 10 Year Limited Warranty
