Link Electronics AVS-816/SA 16x1 1RU Analog Video Switcher with Audio Follow

SKU: LEAVS816SA MFR: AVS-816/SA
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 16 analog video sources with this reliable video switcher.
  • Enjoy pristine audio with audio-follow functionality, ensuring perfect synchronization.
  • This affordable 1RU video switcher is perfect for small studios needing high performance.
  • Easily manage multiple video feeds with a user-friendly interface and simple setup.
  • Maintain signal integrity with low latency, ideal for live broadcasts and critical monitoring.
  • Benefit from wide compatibility, supporting various analog video devices and equipment.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics AVS-816/SA Specifications

  • Number of Analog Video Inputs

    16

  • Analog Video Inputs: Impedance

    75Ohms +/-1%

  • Analog Video Inputs: Configuration

    Single-ended

  • Analog Video Inputs: Level

    1Vpp +/-3dB

  • Number of Analog Video Outputs

    1

  • Analog Video Outputs: Level

    Unity Gain+/-1%

  • Analog Video Outputs: Impedance

    75Ohms +/-1%

  • Analog Video Outputs: Frequency Response

    +/-0.5dB to 15MHz
    3dB to 30MHz

  • Analog Video Outputs: Differential Phase

    <0.1 deg.

  • Analog Video Outputs: Differential Gain

    <0.1%

  • Analog Video Outputs: Tilt

    <0.5%

  • Analog Video Outputs: S/N Ratio

    >70dB

  • Analog Video Outputs: Propagation Delay

    161nS +/-0.2nS

  • Analog Video Outputs: Crosstalk

    >60dB, Worst Case

  • Number of Analog Audio Inputs

    16 Stereo

  • Analog Audio Inputs: Impedance

    20kOhms, bridging

  • Analog Audio Inputs: Configuration

    Balanced Diff

  • Analog Audio Inputs: Maximum Level

    +24dBu

  • Number of Analog Audio Outputs

    One, stereo 3 pin conn.

  • Analog Audio Outputs: Level

    +24dBu Max.

  • Analog Audio Outputs: Impedance

    66Ohms +/-5%

  • Analog Audio Outputs: Freq. Resp

    +/-0.02dB, 20 to 20KHz

  • Analog Audio Outputs: Insertion Gain

    +/-0.05dB

  • Analog Audio Outputs: Slew Rate

    >30V / MuS Balanced

  • Analog Audio Outputs: S/N Ratio

    >100dB A WTD +8dBu

  • Analog Audio Outputs: THD

    <0.004% at 20KHz

  • Analog Audio Outputs: Crosstalk

    95dB at 20KHz

  • Analog Audio Outputs: DC Offset

    <10mV

  • Analog Audio Outputs: CMR

    >80dB at 2KHz

  • Analog Audio Output: Isolation

    >100dB at 20KHz

  • Power Input

    120 / 240V AC +/-10% 50 / 60Hz

  • Power

    8 VAR

  • Ambient Temperature

    0 to 50 deg.

  • Humidity

    0 to 90% non-condensing

  • Dimensions (H x W x D)

    1.75 x 19 x 8.7" / 44.45 x 482.6 x 220.98mm

  • Weight

    6.8lbs / 3.08kg

About Link Electronics AVS-816/SA

Where professional video and audio management is a necessity, the AVS-816/SA 16x1 1RU Analog Video Switcher with Audio Follow by Link Electronics stands as an advanced and reliable solution. This high-quality switcher is designed with a wide bandwidth for video/audio vertical interval switching, catering to the needs of video professionals.

The AVS-816/SA boasts a sophisticated, compact modular design, capable of handling both video and audio in the analog domain. It features sixteen channels of video and stereo audio, providing ample capacity for managing multiple sources. The unit allows for a mix of digital and analog switching modules for both video and audio, offering complete system flexibility and efficient routing of multiple video and audio signals.

The non-looping inputs of this video switcher deliver outstanding return loss performance. For component digital applications, an optional analog monitoring output is available, enhancing its versatility. The unit also features a single switch on the front panel for selecting audio and video break-away, with dual LEDs on the source selection and follow switch indicating follow or break-away status.

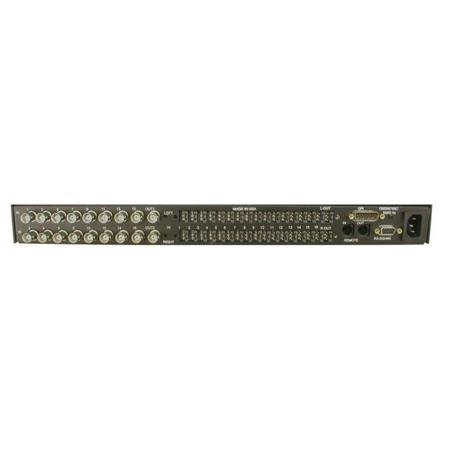

The AVS-816/SA is equipped with 3-pin Weco connectors for audio inputs, which can be detached individually, facilitating pre-wiring before connection to the switcher. The digital audio I/O is designed with full transformer isolation to eliminate the risk of ground loop interference.

Switching is accomplished during the vertical interval using the vertical sync derived from the video at the output stage. Similarly, digital audio switching occurs during the audio sample preamble. The AVS-816/SA can be controlled by a serial data feed of either RS-232 or RS-422/485 interface standards, selectable by a simple internal DIP switch. It also supports control by a remote control panel using the common RJ-11 modular connector and the RS-485 interface standard.

For automated system applications, an optional GPI interface is available. The serial communication protocol is compatible with existing Link video and audio switchers and remote control panels. To ensure seamless integration into existing systems, the AVS-816/SA can be preset to respond to specific instruction sets. This makes it an ideal choice for video surveillance or security systems requiring efficient management of multiple camera feeds.

Link Electronics AVS-816/SA Features

  • RS-232/RS-422
  • 16 Video Inputs
  • 16 Audio Inputs
  • Vertical Interval
  • Analog Video
  • Analog Audio
  • Includes 816 OP/A
  • Includes 816 OP/B
  • GPI Control
  • Two Video Outputs
  • One Rack Unit Cabinet
  • One Stereo Audio Output
  • Audio & Video Break-away
  • Controls Up to 32 Switchers
  • Individual I/O Audio Connection
  • Windows Based Control Software

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamlessly switch between 16 analog video sources with this reliable video switcher.
  • Enjoy pristine audio with audio-follow functionality, ensuring perfect synchronization.
  • This affordable 1RU video switcher is perfect for small studios needing high performance.
  • Easily manage multiple video feeds with a user-friendly interface and simple setup.
  • Maintain signal integrity with low latency, ideal for live broadcasts and critical monitoring.
  • Benefit from wide compatibility, supporting various analog video devices and equipment.

What's in the box:

  • Link ELectronics AVS-816/SA 16x1 1RU Analog Video Switcher with Audio Follow
  • Link Electronics 10 Year Limited Warranty
