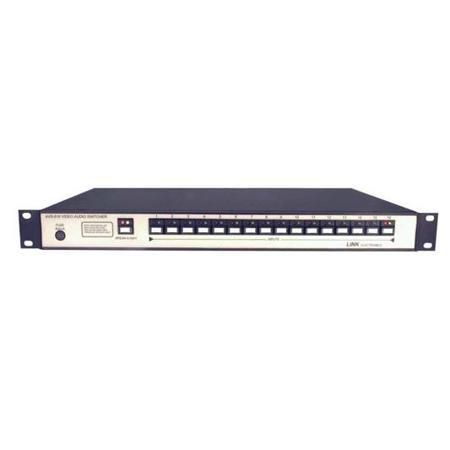

Link Electronics AVS-816/SD 16x2 1RU SD SDI Video Switcher with AES Audio Follow (One SDI Output)

SKU: LEAVS816SD MFR: AVS-816/SD
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 16 SD SDI video sources with this reliable video switcher.
  • Enjoy AES audio follow functionality, ensuring perfect audio sync with your video feeds.
  • This Link Electronics video switcher offers low latency, keeping your streams smooth and professional.
  • The AVS-816/SD video switcher supports component 270MB/s for high-quality video input.
  • Simplify your setup with this 1RU design, perfect for rack-mounted video switching solutions.
  • Trust in the 10-year warranty for long-term reliability with your SDI video components.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics AVS-816/SD Specifications

  • Digital Video Input: Standard

    Component 270MB/s

  • Number of Digital Video Input

    16

  • Digital Video Input: Impedance

    75Ohms, 1%

  • Digital Video Input: Configuration

    Single-Ended, AC Coupled

  • Digital Video Input: Return Loss

    >18dB

  • Number of Digital Video Output

    One, Digital
    One, Analog for Monitoring

  • Digital Video Output: Level

    800mV +/-10%

  • Digital Video Output: Impedance

    75Ohms, +/-1%

  • Digital Video Output: Return Loss

    >18dB

  • Digital Video Output: Rise/Fall Time

    1ns +/- 250ps

  • Digital Video Output: Overshoot

    <10% of Amplitude

  • Digital Video Output: Equalization

    Automatic up to >30dB

  • Digital Video Output: Propagation Delay

    10ns

  • Digital Video Output: I/P Cable Length

    250m / 820.21' (Maximum)

  • Number of Digital Audio Input

    16

  • Digital Audio Input: Interface

    AES3-1992

  • Digital Audio Input: Connector

    3 Pin Term. Plug-in

  • Digital Audio Input: Format

    Bi-Phase Mark Encoded

  • Digital Audio Input: Impedance

    110Ohms +/- 1%

  • Digital Audio Input: Coupling

    Transformer

  • Digital Audio Input: Level

    4.2Vpp Typical

  • Digital Audio Input: Sample Freq. Range

    30 to 50KHz

  • Number of Digital Audio Output

    One, Digital on BNC
    One, Analog for Monitoring, 3 pin connector

  • Digital Audio Output: Interface

    AES3-1992

  • Digital Audio Output: Connectors

    3 Pin Plug-in Term Block

  • Digital Audio Output: Format

    Bi-Phase Mark Encoded

  • Digital Audio Output: Impedance

    110Ohms +/- 1%

  • Digital Audio Output: Coupling

    Transformer

  • Digital Audio Output: Level

    4.2Vp-p Typical

  • Power Input

    120 / 240V AC +/- 10% 50 / 60Hz

  • Power

    8 VAR

  • Ambient Temperature

    0 to 50 deg.

  • Humidity

    0 to 90% non-condensing

  • Dimensions (H x W x D)

    1.75 x 19 x 8.7" / 44.45 x 482.6 x 220.98mm

  • Weight

    6.8lbs / 3.08kg

About Link Electronics AVS-816/SD

It's time to introduce the AVS-816/SD, a high-performance SD SDI Video Switcher with AES audio follow. This device is a wide bandwidth video/audio vertical interval switcher, meticulously designed for video professionals. It boasts a compact, modular design that enables it to manage both video and audio in the analog domain, making it a versatile tool for any audio-visual setup.

The AVS-816/SD is equipped with sixteen channels of video and stereo audio, providing a robust platform for managing multiple signals. It supports digital and analog switching modules for both video and audio, which can be mixed in any combination, offering unparalleled system flexibility. The nonlooping inputs ensure superior return loss performance, enhancing the overall quality of your output.

For those working with component digital applications, the AVS-816/SD offers an optional analog monitoring output. It also features a single switch on the front panel for selecting audio and video break-away, with dual LEDs on the source selection and follow switch indicating follow or break-away status.

The AVS-816/SD is a cost-effective solution for routing or delegating multiple video and audio signals. It uses standard BNC connectors for the AES audio inputs, with the option of ordering Weco 3-pin connectors. The digital audio I/O is fully transformer isolated to eliminate any potential ground loop interference.

Switching is achieved during the vertical interval using the vertical sync derived from the video at the output stage. Similarly, digital audio switching occurs during the audio sample preamble. The AVS-816/SD can be controlled by either RS-232 or RS-422/485 interface standards, selectable by a simple internal DIP switch. Up to 32 switchers can be managed by the computer software.

For those seeking remote control, an optional panel is available that uses the common RJ-11 modular connector and the RS-485 interface standard. For automated system applications, an optional GPI interface is also available. The AVS-816/SD is compatible with existing Link video and audio switchers and remote control panels, making it an excellent choice for integration into existing systems.

Link Electronics AVS-816/SD Features

  • RS-232/RS-422
  • 16 Video Inputs
  • 16 Audio Inputs
  • Vertical Interval
  • Analog Video
  • Analog Audio
  • Includes 816 OP/C
  • Includes 816 OP/C + OPF
  • GPI Control
  • Two Video Output
  • One Rack Unit Cabinet
  • One Stereo Audio Output
  • Audio & Video Break-away
  • Controls Up to 32 Switchers
  • Individual I/O Audio Connection
  • Windows Based Control Software

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamlessly switch between 16 SD SDI video sources with this reliable video switcher.
  • Enjoy AES audio follow functionality, ensuring perfect audio sync with your video feeds.
  • This Link Electronics video switcher offers low latency, keeping your streams smooth and professional.
  • The AVS-816/SD video switcher supports component 270MB/s for high-quality video input.
  • Simplify your setup with this 1RU design, perfect for rack-mounted video switching solutions.
  • Trust in the 10-year warranty for long-term reliability with your SDI video components.

What's in the box:

  • Link ELectronics AVS-816/SD 16x2 1RU SD SDI Video Switcher with AES Audio Follow
  • Link Electronics 10 Year Limited Warranty
