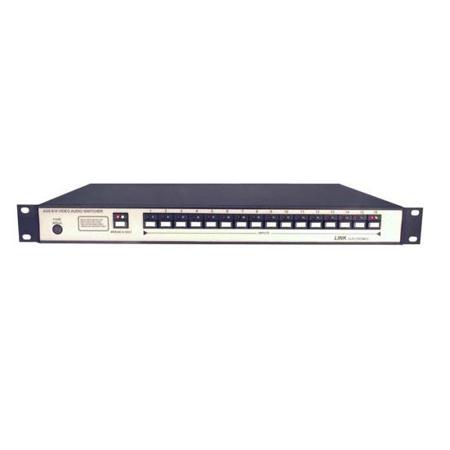

Link Electronics AVS-816/SDA 16x2 1RU SD SDI Video Switcher with Analog Stereo Audio

SKU: LEAVS816SDA MFR: AVS-816/SDA
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 16 SD SDI video sources with this reliable video switcher.
  • Enjoy pristine audio with balanced analog stereo audio inputs and outputs included.
  • This affordable video switcher is perfect for small studios seeking high performance.
  • Ensure low latency video switching for live broadcasts and critical monitoring setups.
  • The Link Electronics AVS-816/SDA offers easy setup in a standard 1RU rack space.
  • Experience good compatibility with various SD SDI devices using this video component.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics AVS-816/SDA Specifications

  • SD SDI Video Input: Standard

    270Mb/s

  • Number of SD SDI Video Input

    16

  • SD SDI Video Input: Impedance

    75Ohms, 1%

  • SD SDI Video Input: Configuration

    S/E, AC Coupled

  • SD SDI Video Input: Return Loss

    >18dB

  • Number of Video Output SDI

    One, SD SDI

  • Video Output SDI: Level

    800mV +/-10%

  • Video Output SDI: Impedance

    75Ohms, +/-1%

  • Video Output SDI: Return Loss

    >18dB

  • Video Output SDI: Rise/Fall Time

    1ns +/- 250ps

  • Video Output SDI: Overshoot

    <10% of Amplitude

  • Video Output SDI: Propagation Delay

    10ns

  • Video Output SDI: Input Cable Length

    250m / 820.21' (Maximum)

  • Video Output SDI: Interface

    AES-3id 75Ohms

  • Video Output SDI: Connector

    BNC

  • Analog Audio Input: Type

    Stereo Balanced

  • Number of Analog Audio Input

    16

  • Analog Audio Input: Connector

    3 Pin Term. Plug-in

  • Analog Audio Input: Format

    Bi-Phase Mark Encoded

  • Analog Audio Input: Sample Freq. Range

    30 to 50KHz

  • Number of Analog Audio Output

    Two

  • Analog Audio Output: Interface

    AES3-1992

  • Analog Audio Output: Connectors

    3 Pin Plug-in Term Block

  • Analog Audio Output: Format

    Bi-Phase Mark Encoded

  • Analog Audio Output: Impedance

    20kOhms, bridging

  • Analog Audio Output: Coupling

    Transformer

  • Analog Audio Output: Level

    4.2Vp-p Typical

  • Dimensions (H x W x D)

    1.75 x 19 x 8.7" / 44.45 x 482.6 x 220.98mm

  • Weight

    6.8lbs / 3.08kg

About Link Electronics AVS-816/SDA

After extensive research and development, Link Electronics presents the AVS-816/SDA, a sophisticated 16x2 1RU SD SDI Video Switcher with Analog Stereo Audio. This advanced piece of equipment is designed with the professional video and audio industry in mind, offering a versatile solution for live events, broadcasting, and post-production studios.

The AVS-816/SDA is a high-quality SDI video switcher that seamlessly integrates both video and audio in the analog domain. It boasts a wide bandwidth and vertical interval switching, ensuring outstanding return loss performance. This efficient unit is capable of handling up to sixteen channels of video and stereo audio, providing complete system flexibility.

The compact modular design of the AVS-816/SDA allows for a mix of digital and analog switching modules for both video and audio in any combination. This feature enhances the unit's adaptability, making it a reliable choice for professionals seeking to route or delegate multiple video and audio signals economically.

The unit's non-looping inputs and optional analog monitoring output for component digital applications further enhance its functionality. The stereo audio inputs utilize 3-Pin Weco connectors, ensuring balanced analog audio. Additionally, the digital audio I/O is fully transformer isolated to eliminate the possibility of ground loop interference.

Switching is accomplished during the vertical interval using the vertical sync derived from the video at the output stage. Similarly, digital audio switching occurs during the audio sample preamble. The AVS-816/SDA can be controlled by either RS-232 or RS-422/485 interface standards, selectable by a simple internal DIP switch, and can be integrated into existing systems.

The AVS-816/SDA is compatible with existing Link video and audio switchers and remote control panels, making it an ideal choice for professionals seeking a seamless, high-quality audio and video switching solution.

Link Electronics AVS-816/SDA Features

  • RS-232/RS-422
  • 16 SDI Video Inputs
  • 16 AES Audio Inputs
  • Vertical Interval Switching
  • Includes 816 OP/C
  • Includes 816 OP/C + OP/F
  • One Rack Unit Chassis
  • Audio & Video Break-away
  • GPI Control
  • One SDI Video Output
  • One AES Audio Output
  • One Analog Video Output
  • One Analog Audio Output
  • Controls Up to 32 Switchers
  • Individual I/O Audio Connectors
  • Windows Based Control Software

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Seamlessly switch between 16 SD SDI video sources with this reliable video switcher.
  • Enjoy pristine audio with balanced analog stereo audio inputs and outputs included.
  • This affordable video switcher is perfect for small studios seeking high performance.
  • Ensure low latency video switching for live broadcasts and critical monitoring setups.
  • The Link Electronics AVS-816/SDA offers easy setup in a standard 1RU rack space.
  • Experience good compatibility with various SD SDI devices using this video component.

What's in the box:

  • Link ELectronics AVS-816/SDA 16x2 1RU SD SDI Video Switcher with Analog Stereo Audio
  • Link Electronics 10 Year Limited Warranty
