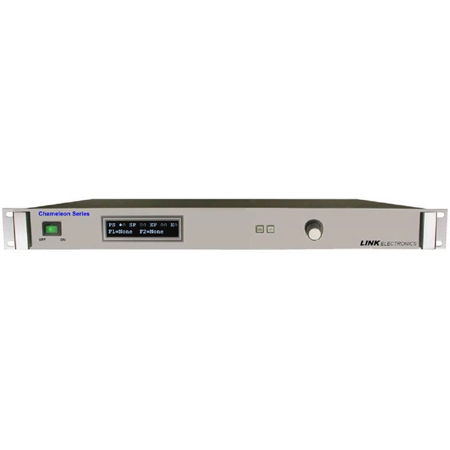

Link Electronics Captioning Bridge & Encoder with 3GB/HD/SD-SDI Inputs

SKU: LECBE493 MFR: CBE-493
Earn VIP Reward Points

Key Features

  • Ensure reliable streaming with this Link Electronics captioning bridge & encoder.
  • Achieve high video quality with 3GB/HD/SD-SDI inputs for professional broadcasts.
  • Enjoy easy setup with a user-friendly VFD display and rotary knob navigation.
  • Minimize latency using this encoder, perfect for live events and critical monitoring.
  • Benefit from good compatibility with SMPTE standards 259M, 292M, and 424M.
  • Get affordable price and peace of mind with a Link Electronics 10-year warranty.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics CBE-493 Specifications

  • Input: Connectors

    2 BNCs 75 Ohm

  • Input: Format

    270 Mb/s, 1.48 Gb/s, 2.97 Gb/s

  • Input: SMPTE Standards

    259 M, 292 M, and 424 M

  • Input: DC Offset

    0.5V max

  • Input: Signal Level

    800mv +/-10%

  • Output: Connector

    2 BNCs 75 Ohm

  • Output: Format

    Follows SDI Encoder Input

  • Output: Signal Level

    800mVp-p +/-10%

  • Output: DC Offset

    +/-100mV

  • Output: Rise Time

    200pS, Nominal

  • Output: Overshoot

    <10%

  • Output: Timing Jitter

    <1.0U

  • Output: Wideband Jitter

    <0.2UI

  • Output: 3GB/HD Propagation Delay

    2.481 microsecond

  • Output: SD Propagation Delay

    6.593 microsecond

  • Menu and Encoder Readout

    VFD Display

  • Escape Button

    Momentary Switch with LED

  • Enter Button

    Momentary Switch with LED

  • Menu Navigation

    Rotary Knob

  • Serial Ports

    Two RS-232 DE-9 (DB9) One Male, One Female

  • Modem

    Optional External(s)

  • Ethernet

    One, RJ-45 Connector, IEEE

  • Input Power

    External +5 VDC Power Supply (Optional Dual)

  • Compliance

    Designed to Meet UL Approval

  • Temperature

    0 Degree to 50 Degree C (ambient)

  • Humidity

    10% to 90% non-codensing

  • Dimensions (H x W x D)

    1.75 x 19 x 10.5" (44.45 x 482.6 x 266.7 mm)

  • Weight

    4.75 lbs (2.15 kg)

About Link Electronics CBE-493

You'll experience advanced technology at its finest with the CBE-493 Captioning Bridge & Encoder, a high-tech device designed to provide superior captioning solutions for your audio and video needs. This state-of-the-art encoder, manufactured by the reputable Link Electronics, is equipped with 3GB/HD/SD-SDI inputs, offering you the flexibility to work with a variety of equipment and formats.

The CBE-493 is a sophisticated 3GB/HD/SD-SDI closed caption encoder that accepts 3GB/HD/SD-SDI transport streams and delivers three closed caption encoded outputs. The SDI outputs are re-clocked, enhancing the SDI output eye pattern and outperforming most re-clocking Distribution Amplifiers (DA). This innovative device ensures the seamless passage of ANC data, including audio, to the output.

This high-tech encoder bridges captions between streams, reading the caption data from the bridge input video and inserting it into the encoder input video. It transcodes CEA-608 captions to CEA-708 captions, wrapping both into a Caption Data Packet (CDP) that is embedded into the encoder output. With three selectable bridge modes, the CBE-493 can encode captions from a captioner or teleprompter and then return to the selected bridge mode once the captioner disconnects.

The CBE-493 also features a GPI remote, referred to as a "Legalizer", that allows you to select the number of lines to be lifted, addressing the FCC mandate that captions should not overlay certain on-screen elements. This encoder is also IP captioning ready, a preferred method for live captioning due to the elimination of less reliable plain old telephone (POTs) lines.

Equipped with four communication ports, including two serial RS-232 ports with adjustable baud rates and two ports tunneled to the Ethernet connector, the CBE-493 offers the ability to connect up to four captioners simultaneously. This feature is particularly useful for live captioning over extended periods.

In summary, the CBE-493 Captioning Bridge & Encoder is an advanced, high-tech solution for your captioning needs, offering innovative features and superior performance that set it apart in the market.

Link Electronics CBE-493 Features

  • 3GD/HD/SD SDI
  • Bridges Captions From One Stream to Another
  • Re-clocked Output
  • GPI Remote "Legalizer"
  • 2 CEA-708 Services Converted from 608
  • Field Upgradeable
  • VANC Line Selection
  • Decodes CC1-CC4 or S1-S6
  • Caption Data Recovery
  • Optional Dual Supplies
  • IP Captioning
  • Power off Bypass
  • 4 Port Communications 2 Serial IP
  • IP to Serial Rerouting

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure reliable streaming with this Link Electronics captioning bridge & encoder.
  • Achieve high video quality with 3GB/HD/SD-SDI inputs for professional broadcasts.
  • Enjoy easy setup with a user-friendly VFD display and rotary knob navigation.
  • Minimize latency using this encoder, perfect for live events and critical monitoring.
  • Benefit from good compatibility with SMPTE standards 259M, 292M, and 424M.
  • Get affordable price and peace of mind with a Link Electronics 10-year warranty.

What's in the box:

  • Captioning Bridge & Encoder
  • Link Electronics 10 Year Limited Warranty
