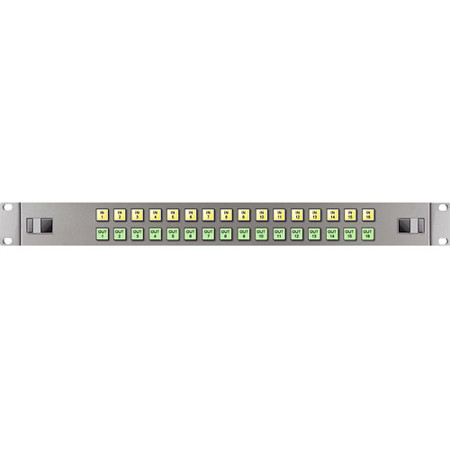

Link Electronics 16x16 X-Y AFV Control Panel, 1 RU

Just imagine the convenience and control at your fingertips with the 16x16 X-Y AFV Control Panel, 1 RU. This high-quality, user-friendly control panel is designed for both local and remote operations, offering versatility and adaptability in a variety of applications.

When utilized as a remote control panel, it pairs seamlessly with the optional CR100 cradle assembly, which comes equipped with a built-in 115V/230V input power supply and an Ethernet interface. The installation process is straightforward, thanks to the coax-based 10Base2 Ethernet network that supports up to 32 panels and a total cable length of 300 feet.

For those requiring longer distances or more panels, the 16x16 X-Y AFV Control Panel, 1 RU can be expanded using standard Ethernet LAN 'Hub' units, extending the panel network to a remarkable 256 panels.

Operating the X-Y panels is a breeze. Simply select your desired destination (output), and the source (input) buttons will tally, allowing you to choose the input for that destination. Any 'locked' outputs are clearly indicated by a flashing output lamp when a locked destination is selected.

The CP1616As are sleek, 1RU panels that can be used as remote control panels for the router when combined with the optional CR100 cradle assembly. These panels are compatible with any INNOVATION Series 16x16 router. When used as a single bus panel, a DIP switch in the remote panel cradle selects the output that is controlled by each single bus panel.

In essence, the 16x16 X-Y AFV Control Panel, 1 RU is a durable, reliable, and stylish solution for controlling your 16x16 matrix switcher, providing easy access to various functions and features.
