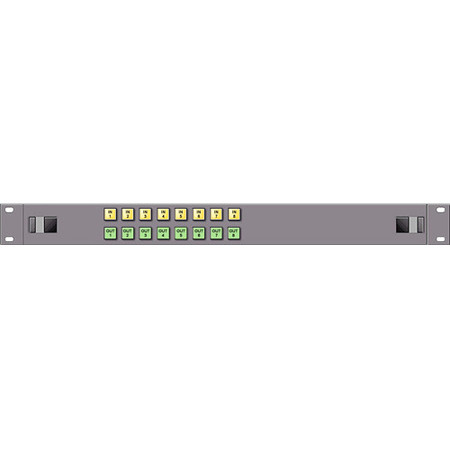

Link Electronics 8x8 X-Y AFV Control Panel, 1RU

SKU: LECP818A MFR: CP818A
Earn VIP Reward Points

Key Features

  • Effortlessly manage your video routing with this Link Electronics control panel.
  • Enjoy seamless control of your 8x8 X-Y AFV video switcher setup in a compact 1RU design.
  • Achieve precise audio-follow-video switching using this reliable control accessory.
  • Simplify your broadcast workflow with intuitive controls for efficient video distribution.
  • Experience enhanced control over your video signals with this user-friendly panel.
  • Upgrade your video switching system with Link Electronics' trusted control solutions.
See More Product Details
Special Order?Estimated to Ship: 09/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

About Link Electronics AFV Control Panel

Just imagine the convenience and control at your fingertips with the 8x8 X-Y AFV Control Panel, 1RU. This high-quality control panel, manufactured by the reputable Link Electronics, is designed to be either a local or remote control panel, providing you with flexibility based on your unique needs.

When utilized as a remote control panel, it pairs seamlessly with the optional cradle assembly, model CR100. This assembly boasts a built-in 115V/230V input power supply and an Ethernet interface, enhancing the panel's functionality and connectivity.

The 8x8 X-Y AFV Control Panel, 1RU features a single bus panel, which, when combined with a DIP switch in the remote panel cradle, allows for precise control over the output selected by that specific single bus panel. This user-friendly feature simplifies the management of your audio and video equipment.

The panel's installation is straightforward, thanks to its coax-based 10Base2 Ethernet network. This network supports up to 32 panels and a total cable length of 300 feet, making it an ideal choice for various professional settings. For larger setups requiring longer distances or more panels, standard Ethernet LAN 'Hub' units can be used to expand the panel network to a staggering 256 panels.

Operating as an X-Y panel is intuitive. Simply select the desired destination (output), and the source (input) buttons will tally, allowing you to choose the preferred input for that destination. The panel also features a 'lock' indicator, with the output lamp flashing when a locked output is selected, adding another layer of control and security.

The CP818A and CP818B panels, as illustrated, use a common set of switches for both audio and video (AFV). The CP818A is compatible with either the XL818A or XL818C routers, while the CP818B, which includes Video and Audio breakaway pushbuttons, is primarily designed for the XL818C.

In essence, the 8x8 X-Y AFV Control Panel, 1RU is a durable, reliable, and versatile solution for managing your professional audio and video equipment.

Link Electronics AFV Control Panel Features

  • Versatile 8x8 X-Y AFV Control Panel, 1RU for professional AV management
  • Compatible with optional CR100 cradle for remote control capabilities
  • Supports coax-based 10Base2 and Ethernet LAN 'Hub' networks for extended setups
  • User-friendly interface with intuitive X-Y panel operation and locking indicators
  • Durable design by Link Electronics for long-term reliability in various settings
  • Common switch set for audio and video with breakaway buttons on CP818B model
