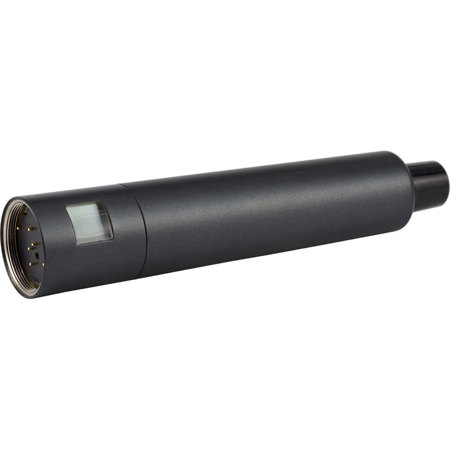

Lectrosonics HHa Digital Hybrid Wireless Handheld Transmitter, Frequency Band A1 (470.100-537.575MHz)

An innovative solution for diverse wireless microphone needs, the HHa Digital Hybrid Wireless Handheld Transmitter, Frequency Band A1 (470.100-537.575MHz) is an exceptional tool for live performances, broadcasting, AV rentals, and houses of worship. This handheld transmitter is designed to deliver superior audio quality with a wide frequency response and dynamic range in its native 400 Series mode.

The HHa transmitter is equipped with advanced features, including compatibility modes for Lectrosonics 200 Series, 100 Series, and IFB receivers, as well as systems from other leading manufacturers. With 25 or 100 kHz tuning steps, it offers up to 3072 selectable frequencies across a 76 MHz tuning range, ensuring precise tuning for optimal performance.

The HHa transmitter employs revolutionary Digital Hybrid Wireless Technology, which combines digital audio with an analog FM radio link. This patented design encodes 24-bit digital audio information into an analog format for transmission, then decodes it at the receiver to restore the original digital audio. This process eliminates compandor artifacts and delivers an audio frequency response flat to 20 kHz.

Standard thread-on capsules are used in the HHa transmitter, including the HHC cardioid condenser capsule offered by Lectrosonics. It also accommodates thread-on capsules from other manufacturers with a 1.25" opening and 28 thread pitch, such as EV, Shure, Heil Sound, Telefunken, and more.

The HHa transmitter is powered by AA batteries and allows users to select RF power at 50 and 100 mW, depending on the requirements of the situation. The lower RF power setting enhances battery life, while the higher power setting offers greater range and resistance to dropouts.

The HHa transmitter also features an IR (Infrared) Port for fast setup with receivers, a mute and talkback function, and a membrane switch and LCD interface for easy operation. The talkback function sends a signal to the Venue receiver when actuated, allowing the audio to be switched to a second output for talkback, cueing, or other purposes.

In summary, the HHa Digital Hybrid Wireless Handheld Transmitter, Frequency Band A1 (470.100-537.575MHz) is a versatile, high-quality solution for a variety of wireless microphone applications.
