Link ELectronics IEC-750 1x8 Composite Video Distribution Amplifier
See all Link Electronics items

Link Electronics IEC-750 1x8 Composite Video Distribution Amplifier, Switchable Dual 1x4 Output

SKU: LEIEC750

This item is no longer available.

Recommended Alternatives

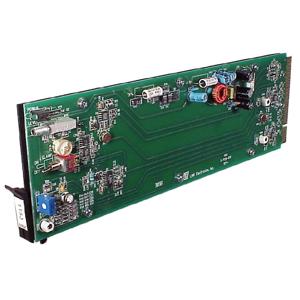

Link Electronics DigiFlex 1151: Picture 1 regular
