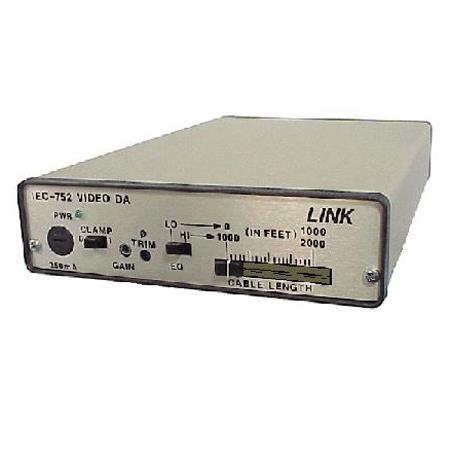

Link Electronics IEC-752 1x6 Composite Video Distribution Amplifier with 2000' EQ & Clamp

From the forefront of engineering innovation comes the IEC-752 1x6 Composite Video Distribution Amplifier, a standout performer in the broadcast industry. This versatile video amplifier is designed to deliver transparent transmission with an impressive bandwidth equal to 35 MHz, ensuring high-quality video output.

The IEC-752 is equipped with a standard differential amplifier on the input, providing over 80 dB of common mode rejection, a feature that significantly enhances the clarity and quality of your video signals. This video distribution amplifier can be conveniently mounted in the PRT-700 rack tray, with up to three IEC-752 units fitting comfortably. For a neat and professional setup, PRT-705 blank panels can be used to cover any unused spaces.

One of the key features of the IEC-752 is its built-in switch on the front panel, which allows users to easily select feedback clamp on and off. This feature provides greater control over the video signal, ensuring optimal performance. The amplifier also comes with a gain control of +/-3dB, offering flexibility in adjusting the signal strength.

The IEC-752 also boasts a unique cable equalization feature, controlled by a slider on the front panel. This feature allows for the adjustment of up to 1000 feet of coax cable loss, ensuring the best possible signal quality. When the EQ switch is activated, an additional 1000ft are added, providing even greater flexibility in managing cable loss.

To further enhance its versatility, the IEC-752 includes a delay trim on the front panel, allowing for the matching of signal propagation delays. With a delay adjustment range of six (6) degrees, this feature ensures that your video signals are perfectly synchronized, providing a seamless viewing experience.

In conclusion, the IEC-752 1x6 Composite Video Distribution Amplifier is a state-of-the-art device that combines versatility, high performance, and user-friendly features, making it an essential tool in the broadcast industry.
