Link Electronics IEC-786 Closed Caption Decoder, Text, F1 & F2 Compatible

The IEC-786 is a high performance Closed Caption Decoder for the NTSC system. It is capable of processing and displaying all standard line 21 closed caption format transmissions. This includes the codes specified by the FCC Report and Order on General Docket No. 91-1 and EIA-608 recommended practices for Captions, Text and XDS in field 2. Nine standard data channels are supported by the IEC-786: Caption channels 1 through 4 (CC1- CC4), Text modes 1 through 4 (T1 through T4) and Extended Data Services (XDS). The various operating modes are selectable from four front panel switches. Designed with the professional user in mind, the IEC-786 processes composite baseband video.

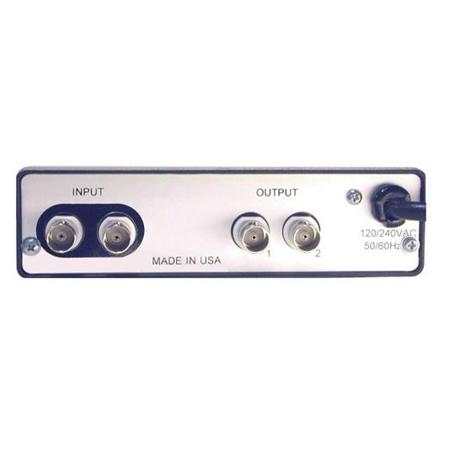

It features a high impedance looping input and two composite video outputs. A complementary differential input amplifier assures high common mode rejection while its phase-linear keyer cleanly inserts decoded characters into the video image. Differential gain and phase are well within 0.1% and 0.1deg. respectively. Packaged in LINK's compact 700 Series chassis, the IEC-786 is both rugged and reliable. If desired, it may be rack mounted along side two other 700 Series units of any mix. In addition, the IEC-786 is backed by a standard 10-year warranty. High performance, flexibility and economy are equally represented in the IEC-786 Closed Caption Decoder.
