Link Electronics IEC-788 2-field Closed Caption Decoder, NTSC PAL, Composite (BNC), Y/C

SKU: LEIEC788 MFR: IEC-788
Earn VIP Reward Points

Key Features

  • Ensure accurate closed captioning with this NTSC/PAL video decoder for broadcast needs.
  • Enjoy wide compatibility with composite (BNC) and Y/C inputs for diverse video sources.
  • Get reliable streaming with stable video output, featuring unity gain and 75 Ohm impedance.
  • Experience high video quality with low differential gain (0.001) & phase (0.10 deg.) outputs.
  • This easy to use decoder supports both NTSC and PAL formats for global video applications.
  • Maintain secure transmission with >60dB hum & noise reduction, ensuring clean video signals.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics IEC-788 Specifications

  • Composite Input: Video Level

    1.0Vpp +/-6dB

  • Composite Input: Impedance

    >18KOhms Looping

  • Composite Input: Connector

    BNC

  • Composite Input: Maximum DC on Inputs

    +/-6.0VDC

  • Composite Input: Common Mode Range

    5Vpp

  • Composite Input: CMRR at 60Hz

    >50dB

  • Composite Outputs: Number

    2x

  • Composite Outputs: Connector

    BNC

  • Composite Outputs: Level

    Unity Gain

  • Composite Outputs: Character Video

    90 IRE Units

  • Composite Outputs: Character Background

    10 IRE Units

  • Composite Outputs: Impedance

    75Ohms +/-1%

  • Composite Outputs: Frequency Response

    +/-0.1dB at 15MHz
    -0.5dB at 17MHz
    -1.0dB at 18.5MHz
    -3.0dB at 26MHz

  • Composite Outputs: Differential Gain

    0.001

  • Composite Outputs: Differential Phase

    0.10 deg.

  • Composite Outputs: Propagation Delay

    19nS +/-3ns

  • Composite Outputs: Hum and Noise

    >60dB to 5 MHz
    >40dB above 5MHz

  • Composite Outputs: DC Offset

    <2mV, Clamped

  • Composite Outputs: Line Rate Tilt

    <0.1%

  • Composite Outputs: Field Rate Tilt

    <0.1%

  • S-Video Input: Y Level

    1 Vpp +/-6dB

  • S-Video Input: C Level

    0.6 Vpp Nominal

  • S-Video Input: Impedance

    75Ohms +/-1%

  • S-Video Input: Connector

    Four Pin Mini Din

  • S-Video output: Number

    Two, one 4 Pin Mini Din & One BNC pair (Y & C)

  • S-Video output: Y Level

    1 Vpp +/-6dB

  • S-Video output: C Level

    0.6 Vpp Nominal

  • Temperature

    Ambient: 0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10%/90% non-condensing

  • Power

    9.5 VAR

  • AC Voltage

    120/240 VAC+/-10%, 50/60Hz

  • Dimensions (H x W x D)

    1 x 5.5 x 9.25" / 25.40 x 139.70 x 234.95mm

  • Weight

    2.6lbs / 1.18kg

About Link Electronics IEC-788

After extensive research and development, the IEC-788 2-field Closed Caption Decoder emerges as a high-performance solution for NTSC/PAL systems. This advanced device is engineered to process and display all standard closed caption formats, including those outlined by the FCC Report and Order on General Docket No. 91-1 and EIA-608 recommended practices for Captions, Text, and XDS.

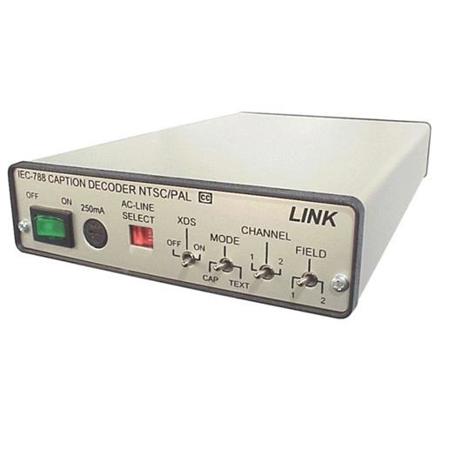

The IEC-788 Closed Caption Decoder supports nine standard data channels, including Caption channels 1 through 4 (CC1-CC4), Text modes 1 through 4 (T1 through T4), and Extended Data Services (XDS). This versatility is further enhanced by the ability to select various operating modes via four front panel switches.

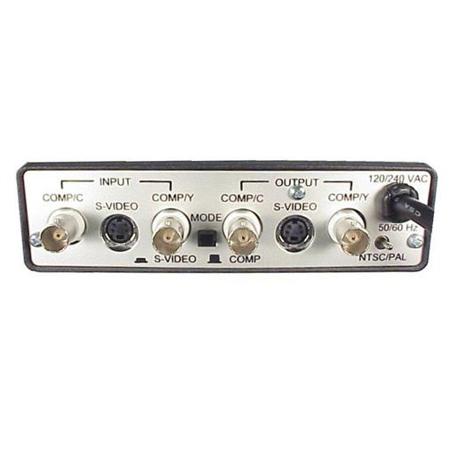

Housed in LINK's compact 700 Series chassis, the IEC-788 is designed for durability and reliability. It can be conveniently rack-mounted alongside two other 700 Series units of any mix for optimal space utilization. The device features a rear panel switch for selecting between PAL or NTSC, and a front panel switch for choosing between 115 or 230VAC.

The IEC-788 Closed Caption Decoder is designed with the professional user in mind, processing both composite baseband video and S-Video. The composite video input features high impedance looping, while the S-Video operates at standard levels. The device's complementary differential input amplifier ensures high common mode rejection, and its phase-linear keyer seamlessly inserts decoded characters into the video image. With differential gain and phase well within 0.1% and 0.1½ respectively, the IEC-788 stands as a testament to precision and quality.

In summary, the IEC-788 2-field Closed Caption Decoder is a high-performance, flexible, and economical solution for all your NTSC/PAL system needs.

Link Electronics IEC-788 Features

  • Field 1 & Field 2
  • Captions
  • Text
  • XDS
  • EIA-608 Extended Character Set
  • PAL/NTSC
  • S-Video Input & Output
  • Baseband Video Input & Output
  • Differential Input
  • Rack Mountable (Optional Tray)

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure accurate closed captioning with this NTSC/PAL video decoder for broadcast needs.
  • Enjoy wide compatibility with composite (BNC) and Y/C inputs for diverse video sources.
  • Get reliable streaming with stable video output, featuring unity gain and 75 Ohm impedance.
  • Experience high video quality with low differential gain (0.001) & phase (0.10 deg.) outputs.
  • This easy to use decoder supports both NTSC and PAL formats for global video applications.
  • Maintain secure transmission with >60dB hum & noise reduction, ensuring clean video signals.

What's in the box:

  • Link ELectronics IEC-788 2-field Closed Caption Decoder
  • Link Electronics 10 Year Limited Warranty
