Link Electronics IEC-788 2-Field Closed Caption Decoder with Remote and Single Ended Input, NTSC PAL, Composite (BNC), Y/C

SKU: LEIEC788RSE MFR: IEC-788/R/SE
Earn VIP Reward Points

Key Features

  • Ensure accurate closed captioning with this 2-field NTSC/PAL decoder for all your video needs.
  • Enjoy seamless integration with composite (BNC) and Y/C inputs for versatile video decoding setups.
  • Get crystal-clear captions: Character video at 90 IRE units, background at 10 IRE units for readability.
  • Maintain signal integrity with >50dB CMRR at 60Hz, ensuring clean video even with common mode range issues.
  • Experience near-lossless video quality with a frequency response of +/-0.1dB at 15MHz output.
  • Rely on stable performance with <2mV DC offset and minimal line/field rate tilt for broadcast applications.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics IEC-788 Specifications

  • Composite Input: Video Level

    1.0Vpp +/-6dB

  • Composite Input: Impedance

    >18KOhms Looping

  • Composite Input: Connector

    BNC

  • Composite Input: Maximum DC on Inputs

    +/-6.0VDC

  • Composite Input: Common Mode Range

    5Vpp

  • Composite Input: CMRR at 60Hz

    >50dB

  • Composite Outputs: Number

    2x

  • Composite Outputs: Connector

    BNC

  • Composite Outputs: Level

    Unity Gain

  • Composite Outputs: Character Video

    90 IRE Units

  • Composite Outputs: Character Background

    10 IRE Units

  • Composite Outputs: Impedance

    75Ohms +/-1%

  • Composite Outputs: Frequency Response

    +/-0.1dB at 15MHz
    -0.5dB at 17MHz
    -1.0dB at 18.5MHz
    -3.0dB at 26MHz

  • Composite Outputs: Differential Gain

    0.001

  • Composite Outputs: Differential Phase

    0.10 deg.

  • Composite Outputs: Propagation Delay

    19nS +/-3ns

  • Composite Outputs: Hum and Noise

    >60dB to 5 MHz
    >40dB above 5MHz

  • Composite Outputs: DC Offset

    <2mV, Clamped

  • Composite Outputs: Line Rate Tilt

    <0.1%

  • Composite Outputs: Field Rate Tilt

    <0.1%

  • S-Video Input: Y Level

    1 Vpp +/-6dB

  • S-Video Input: C Level

    0.6 Vpp Nominal

  • S-Video Input: Impedance

    75Ohms +/-1%

  • S-Video Input: Connector

    Four Pin Mini Din

  • S-Video output: Number

    Two, one 4 Pin Mini Din & One BNC pair (Y & C)

  • S-Video output: Y Level

    1 Vpp +/-6dB

  • S-Video output: C Level

    0.6 Vpp Nominal

  • Temperature

    Ambient: 0 to 50 deg. C / 32 to 122 deg. F

  • Humidity

    10%/90% non-condensing

  • Power

    9.5 VAR

  • AC Voltage

    120/240 VAC+/-10%, 50/60Hz

  • Dimensions (H x W x D)

    1 x 5.5 x 9.25" / 25.40 x 139.70 x 234.95mm

  • Weight

    2.6lbs / 1.18kg

About Link Electronics IEC-788

Just unveiled, the IEC-788 Closed Caption Decoder emerges as an advanced solution for professional video setups requiring high-tech closed captioning capabilities. This sophisticated device is engineered to seamlessly process and display all standard closed caption formats, adhering to the stringent codes specified by the FCC Report and Order on General Docket No. 91-1, as well as the EIA-608 recommended practices for Captions, Text, and XDS.

The IEC-788 supports nine standard data channels, including Caption channels 1 through 4 (CC1-CC4), Text modes 1 through 4 (T1-T4), and Extended Data Services (XDS), ensuring comprehensive coverage for a variety of broadcasting needs. Users will appreciate the innovative design that allows for easy selection of operating modes via four front panel switches, enhancing the user experience with its straightforward interface.

Encased in LINK's compact 700 Series chassis, the IEC-788 boasts a state-of-the-art build that is both rugged and reliable. Its versatility extends to the option of rack mounting, where it can be integrated alongside two other 700 Series units of any combination, optimizing space and streamlining the setup process.

The IEC-788 is designed with the professional user in mind, processing both composite baseband video and S-Video. The high-impedance looping composite video input and standard level S-Video input cater to a range of professional requirements. The device's complementary differential input amplifier ensures high common mode rejection, while its phase-linear keyer expertly inserts decoded characters into the video image without compromising quality. Differential gain and phase are meticulously maintained within 0.1%, reflecting the device's precision engineering.

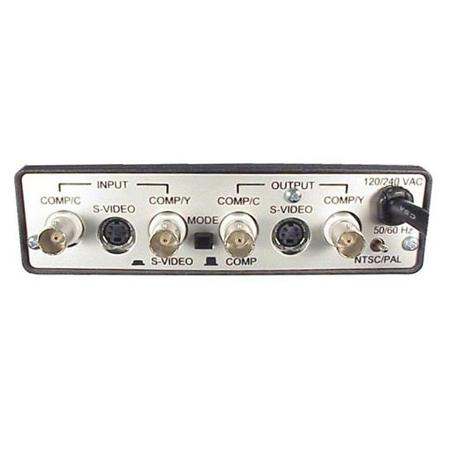

With a rear panel switch that toggles between PAL or NTSC systems and a front panel switch for selecting between 115 or 230VAC, the IEC-788 is a paragon of flexibility, suitable for international use across various video standards. This closed caption decoder is an ideal choice for professionals seeking a versatile, high-quality solution for their closed captioning needs, ensuring accessibility and compliance with broadcasting standards.

Link Electronics IEC-788 Features

  • Field 1 & Field 2
  • Captions
  • Text
  • XDS
  • EIA-608 Extended Character Set
  • PAL/NTSC
  • S-Video Input & Output
  • Baseband Video Input & Output
  • Differential Input
  • Rack Mountable (Optional Tray)

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure accurate closed captioning with this 2-field NTSC/PAL decoder for all your video needs.
  • Enjoy seamless integration with composite (BNC) and Y/C inputs for versatile video decoding setups.
  • Get crystal-clear captions: Character video at 90 IRE units, background at 10 IRE units for readability.
  • Maintain signal integrity with >50dB CMRR at 60Hz, ensuring clean video even with common mode range issues.
  • Experience near-lossless video quality with a frequency response of +/-0.1dB at 15MHz output.
  • Rely on stable performance with <2mV DC offset and minimal line/field rate tilt for broadcast applications.

What's in the box:

  • Link ELectronics IEC-788 2-field Closed Caption Decoder with Remote and Single Ended Input
  • Link Electronics 10 Year Limited Warranty
