Closeout

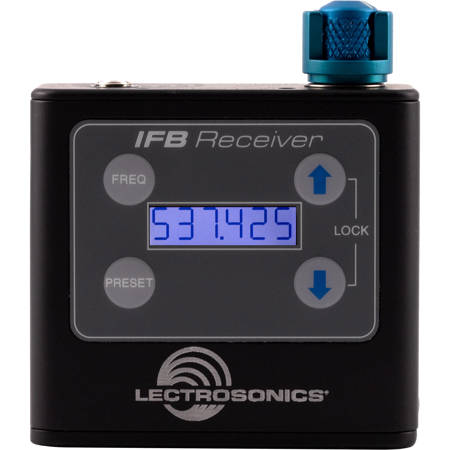

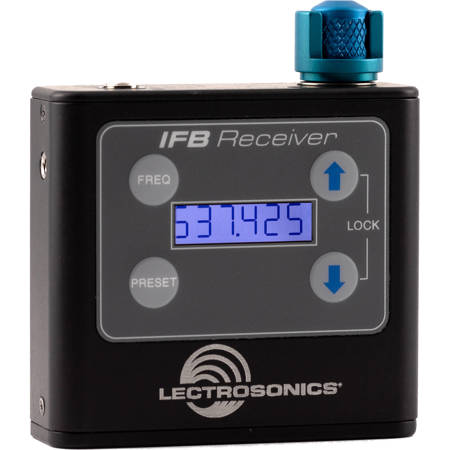

Lectrosonics IFBR1B-B1 UHF Multi-Frequency Belt-Pack IFB Receiver without Charger, 537.600 - 614.375MHz

SKU: LEIFBR1BB1 MFR: IFBR1B-B1
$854.00
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Lectrosonics IFBR1B-B1 receiver.
  • Enjoy reliable wireless connectivity across a wide 537.600 - 614.375 MHz range.
  • The long-lasting battery offers up to 8 hours, perfect for extended use.
  • Preset up to 10 frequencies for quick access during fast-paced events.
  • Compact, lightweight design ensures comfort during long monitoring sessions.
  • Achieve exceptional sound quality with a wide 100 Hz to 10 kHz frequency response.
See More Product Details

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lectrosonics IFBR1B Specifications

  • Operating Frequencies

    Band B1: 537.600 - 614.375 MHz

  • Frequency Selection Steps

    25 kHz or 100 kHz, selectable; VHF: 125 kHz

  • Sensitivity

    1 uv (20 dB SINAD)

  • Signal/Noise ratio

    95 dB A-weighted

  • Squelch quieting

    90 dB

  • AM rejection

    50 dB, 10 uV to 100 mV

  • Modulation acceptance

    +/-20 kHz

  • Spurious rejection

    Greater than 70 dB

  • Operating temperature range

    -4 degree to 113 degree F (-20 to 45 degrees C)

  • Third order intercept

    0 dBm

  • Frequency response

    100 Hz to 10 kHz, (+/-1 dB)

  • Audio output

    1V RMS into 50 ohms minimum

  • Antenna

    Headphone cable

  • Min. headphone impedance

    16.0 Ohms

  • Programmable memory

    10 frequencies can be stored as presets

  • Controls

    Top Panel: Single knob controls Audio Output Level and Power On
    Side Panel: Membrane switches with LCD interface for Frequency Selection and Preset function

  • Indicators

    Multi-color LED indicator for power on and battery status

  • Battery

    LB-50 Li-ion 3.6 V 1000 mAh

  • Battery Life

    8 hours per charge with LB-50 Li-ion battery

  • Current consumption

    120 mA

  • Dimensions

    2.8 x 2.4 x 0.8" (71.1 x 70.0 x 20.3mm)

  • Weight

    3.4 oz (96.39g) (with battery and wire belt clip)

About Lectrosonics IFBR1B

Where high-tech meets practicality, the IFBR1B-B1 UHF Multi-Frequency Belt-Pack IFB Receiver without Charger, operating within the frequency range of 537.600 to 614.375MHz, stands as a testament to advanced audio technology. This state-of-the-art device, designed by the reputable brand Lectrosonics, is a crucial tool for broadcast and motion picture production, facilitating seamless talent cueing and crew communications.

The IFBR1B-B1 is not just a sophisticated piece of equipment, but also an intuitive device that even untrained users can operate with ease. Despite its compact size, it delivers performance on par with all of Lectrosonics' IFB products, showcasing the brand's commitment to quality and reliability.

This innovative IFB receiver employs +/-20 kHz FM deviation for efficient bandwidth use, and features compandor noise reduction circuitry, ensuring an excellent signal-to-noise ratio. Its supersonic Pilot Tone signal controls the audio output squelch, maintaining silence when no transmitter signal is received, thus enhancing the user experience.

The IFBR1B-B1 is equipped with a microprocessor-controlled synthesizer that filters and amplifies the incoming RF signal, mixing it down to the IF frequency. It automatically accommodates a monaural earpiece, ensuring no loss of audio output power or battery life. The headphone cable doubles as the receiving antenna, further demonstrating its innovative design.

This high-tech IFB receiver can drive a wide range of earbuds, headphones, and induction neck loops at substantial levels, compatible with loads from 16 Ohms to 600 Ohms. It features an easy-to-use sliding door for battery installation and operates on a single 3.6 V rechargeable LB50 Li-ion battery, offering approximately eight hours of operation per charge.

The IFBR1B-B1 is housed in a rugged machined aluminum package, ensuring durability and longevity. It includes a wire belt clip for secure mounting on a variety of belts, pockets, and fabrics. A USB port located inside the battery door allows for convenient firmware updates in the field. This multi-frequency belt-pack IFB receiver is a testament to Lectrosonics' commitment to delivering advanced, high-quality audio equipment.

Lectrosonics IFBR1B Features

  • Stores up to 10 frequency presets in memory
  • LCD interface for programming and operation
  • High sensitivity for extended operating range indoors or outdoors
  • USB port for firmware updates
  • Compact, rugged machined aluminum housing
  • Attached battery door
  • 8+ hours battery life with removable LB-50 Li-ion

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience superior audio clarity with this Lectrosonics IFBR1B-B1 receiver.
  • Enjoy reliable wireless connectivity across a wide 537.600 - 614.375 MHz range.
  • The long-lasting battery offers up to 8 hours, perfect for extended use.
  • Preset up to 10 frequencies for quick access during fast-paced events.
  • Compact, lightweight design ensures comfort during long monitoring sessions.
  • Achieve exceptional sound quality with a wide 100 Hz to 10 kHz frequency response.

What's in the box:

  • IFBR1B-B1 UHF Multi-Frequency Belt-Pack IFB Receiver without Charger
  • 3.7 Volt Lithium Ion Battery LB-50
  • Wire Belt Clip
  • Self-Securing Closure Strain Relief
  • User Manual
  • Lectrosonics 1 Year Limited Warranty
