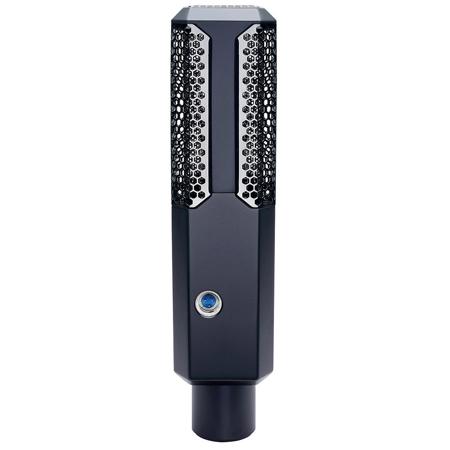

Lewitt LCT-640-TS Dual Output Condenser Microphone

SKU: LELCT640TS

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lewitt LCT-640-TS Specifications

  • Acoustical Operating Principle

    Pressure gradient transducer, externally polarized

  • Diaphragm

    3 micron gold sputtered Mylar

  • Transducer Diameter

    1" (25.4mm)

  • Polar Pattern

    Selectable from Omnidirectional to Figure-8

  • Sensitivity

    28 mV / Pa (31 dBV)

  • Signal / Noise Ratio

    83 dB (A)

  • Equivalent Noise Level

    11 dB (A), cardioid (IEC 61672-1)

  • Dynamic range of FET mic. Amp.

    121 dB (A)

  • Max. SPL for 0.5 % THD

    132 dB, 0 dB pre-attenuation

  • Pre-Attenuation Pad

    -6 dB
    -12 dB
    -18 dB

  • Low-Cut Filter

    40 Hz (12 dB/oct)
    80 Hz (12 dB/oct)
    160 Hz (6 dB/oct)

  • Input Impedance

    120 Meg ohm

  • Rated Load Impedance

    1.0 ohm

  • Supply Voltage

    48 V +/- 4 V (IEC 61938)

  • Current Consumption

    5.5 mA (IEC 61938)

  • Mic Enclosure

    Zinc die cast

  • Connector

    Gold plated 3-pin XLR

  • Dimensions

    6.2 x 2 x 1.4" (158 x 52 x 36mm)

  • Weight

    14.9 oz (425g)

  • UPC Code

    847986000057

3 Accessories for Lewitt LCT-640-TS Dual Output Condenser Microphone

  • All Accessories (3)
  • Studio Isolation Filters (3)

About Lewitt LCT-640-TS

A True Next-Gen Studio Microphone - Freely change the polar pattern in postproduction
Designed and engineered in Austria, the LCT 640 TS will revolutionize the way we think about the recording process. Since the signal of the front and back diaphragm is provided by independent circuitries, any kind of polar pattern can be realized dynamically - even after the recording.

Revolutionary Dual Output Mode
The LCT 640 TS provides the signal of the front and the back capsule separately. In addition to your standard XLR cable plug in the included mini 3-pin XLR and experience all the possibilities of this true next-gen microphone. Use both outputs to capture the whole session instead of committing to a single source.

Change the material you have already recorded dynamically by adjusting the polar pattern, add or subtract room, and even turn your microphone by 180 degrees. Think about all the possibilities!

POLARIZER plug-in - Change pattern in your DAW
After recording with the LCT 640 TS, use our plug-in to change the pattern. Jump back and tweak your material.

Standard multi-pattern mode
Plug in one 3-pin XLR and you have a large diaphragm multi-pattern condenser mic featuring the following polar patterns: omni, wide cardioid, cardioid, supercardioid and figure-8.

Magnetic Pop Filter. Hides nothing, captures everything - except plosives and hisses
This efficient magnetic pop filter will effectively reduce pops and hisses without covering 2/3 of your vocal artists face. The most subtle and convenient way of getting the most out of every single recording.

MS Stereo with one LCT 640 TS? - Definitely!
Usually, mid side stereophony can only be done with two microphones. But now, it is way easier to use one LCT 640 TS. Just point the side of the microphone to the signal source and record both outputs on a stereo track in your DAW. Change the panorama for both signals to adjust the stereo width.

Perfect Match technology - The future of stereo recording
Any two LCT 640 TS will always form a matched pair. Add another one and you will get a "matched triplet", and so on. Every single LCT 640 TS undergoes a series of measurements followed by adjustment of the polarization voltage to achieve exactly the same sensitivity in every microphone.

Clipping History - Innovative features make live easier
It is easily possible to miss if clipping occurred during the recording. Clipping History lets you know if the microphone clipped since it was last turned on.

Low-cut and attenuation - Adapt to every situation
Low-cut: linear, 40 Hz, 80 Hz, 160 Hz
Attenuation: 0 dB, -6 dB, -12 dB, -18 dB

What's in the box:

  • Lewitt LCT-640-TS Microphone
  • LCT 40 Wx Windscreen
  • LCT 40 SHX Shock Mount
  • LCT 50 PSX Magnetic Pop Filter
  • DTP 40 Lb Cushioned Mic Bag
  • Lewitt 2 Year Warranty
