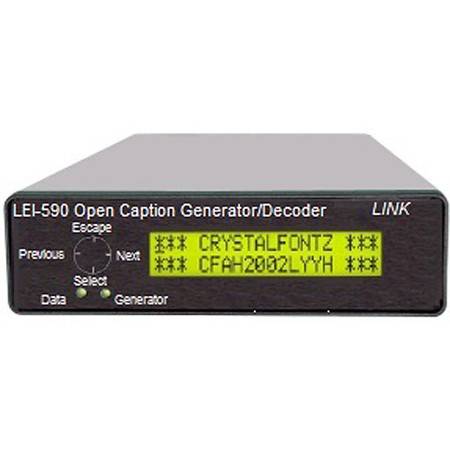

Link Electronics LEI-590 SD/HD-SDI Open Caption Generator and Closed Caption Decoder

SKU: LELEI590 MFR: LEI-590
Earn VIP Reward Points

Key Features

  • Ensure accurate closed captioning with the LEI-590's reliable decoder function.
  • Generate open captions effortlessly using this device's intuitive caption generator.
  • Enjoy seamless integration with SDI workflows thanks to its HD/SD-SDI format support.
  • Perfect for broadcast, this caption generator offers dependable, low-latency performance.
  • Easily recover caption data and upgrade in the field via its convenient Ethernet port.
  • This affordable caption solution enhances accessibility for a diverse viewing audience.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Caption Generator/Decoder Specifications

  • Number of Inputs

    1

  • Input: Connector

    BNC per IEC 61169-8 Annex A

  • Input: Impedance

    75 ohms - terminating

  • Input: Standard Format

    480i, 576i, 720p, 1080i, 1080p

  • Input: Quantization

    10-bits

  • Input: Specified Requirements

    VBI (Line21/22) CC1-4, VANC (334 CDP) CC1-4 & S1-6

  • HD/SD SDI Outputs with open captions

    2

  • Output: Standard

    Follows Input

  • Output: Quantization

    Follows Input

  • Output: Connectors

    BNC per IEC 61169-8 Annex A

  • Output: Impedance

    75 ohms

  • Output: Signal Level

    800mV p-p nominal

  • Output: DC Offset

    0V

  • Output: Rise/Fall Time

    200ps nominal

  • Output: Overshoot

    < 10% of amplitude

  • Output: Return Loss

    > 15dB up to 1.5Gb/s

  • Output: Wideband Jitter

    < 0.2UI

  • General Purpose Interface (GPI) Input

    Mini 3.5 mm Female Connector

  • Ethernet

    Open Caption Generator, Caption Data Recovery & Field Upgrading

  • External Power Supply

    +5 VDC

  • Ambient:

    0 Degree C to 40 Degree C

  • Relative Humidity

    <95% non-condensing

  • Form-Factor

    1RU, 1/3 rack wide, Chassis

  • Dimensions (D x H x W)

    9.25 x 1 x 5.5" (23.50 x 2.54 x 13.97 cm)

  • Weight

    2.25 lbs (1.02 kg)

About Link Electronics Caption Generator/Decoder

A cutting-edge solution for video captioning, the LEI-590 SD/HD-SDI Open Caption Generator and Closed Caption Decoder by Link Electronics is an essential tool for professional video production environments. This high-quality device is designed to seamlessly insert open captions into live events, such as sports games or live video conferences, enhancing accessibility for viewers who are deaf or hard of hearing.

The LEI-590 stands out for its advanced capability to accept standard 608 caption data or text data through an IP interface. It adeptly generates open captions from this data and outputs the video with the captions integrated, ensuring clear communication during any live broadcast. As a versatile HD/SD/SDI closed caption decoder, the LEI-590 is a more cost-effective alternative when only open captions are required, bypassing the need for a separate closed caption encoder/decoder.

This innovative unit preserves all ancillary data (ANC) without alteration, ensuring the integrity of the original video stream. For data recovery, the LEI-590 decodes embedded closed captions from either Vertical Blanking Interval (VBI) lines 21/22 or Vertical Ancillary Data Space (VANC) following the SMPTE 334 Caption Data Packet (CDP) standards. The decoded captions are then "burned" into the outgoing HD/SD-SDI stream as open captions. Additionally, the Ethernet port allows for the export of caption data for monitoring purposes, caption file creation, or encoding into another stream.

The LEI-590 features a user-friendly caption deletion function, enabling the removal of VBI and 708 VANC closed captions from the output video to prevent double decoding. It supports decoding of CC1-CC4 or S1-S6, with minimal latency between open and closed captions. The device's signal processing begins with input SDI video equalization and deserialization to 20-bit parallel data streams. The closed caption data is then used to select characters from a custom on-board character ROM, which are digitally mixed into the video, maintaining the appearance of captions on a standard receiver. The new data stream, complete with visible captions, is re-serialized, re-clocked, and output in the same format as the input transport stream, with no scaling or format conversions.

Furthermore, the LEI-590 can insert V-chip icons onto the active video, reading from Extended Data Services (XDS) for various rating systems and inserting the appropriate icon, with options for constant display, timed display, or GPI control.

Backed by Link Electronics' reputation for durable and reliable audio and video equipment, the LEI-590 is a testament to the brand's commitment to innovation and user-friendly design. With exceptional technical support, including a standard 10-year warranty and 24/7 customer assistance, the LEI-590 meets the high-performance, flexibility, and reliability requirements synonymous with Link Electronics products. This device is an invaluable asset for video production companies, television stations, and any organization seeking to produce video content that is both professional and accessible to a wider audience.

Link Electronics Caption Generator/Decoder Features

  • Generates Open Captions via an IP Interface
  • Decodes CC1-4 or S1-6
  • Caption Data Recovery via an IP Interface
  • 4 Data recovery Modes
  • GPI remote Decoder on/off
  • Changeable Open Caption Attributes
  • Relocates Open Caption on Screen
  • 4 Generator Modes
  • Caption Deletion
  • V-Chip Icon Insertion
  • IP Address Display
  • Field Upgrade-able
  • Power off Bypass
  • VBI or VANC for SD

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure accurate closed captioning with the LEI-590's reliable decoder function.
  • Generate open captions effortlessly using this device's intuitive caption generator.
  • Enjoy seamless integration with SDI workflows thanks to its HD/SD-SDI format support.
  • Perfect for broadcast, this caption generator offers dependable, low-latency performance.
  • Easily recover caption data and upgrade in the field via its convenient Ethernet port.
  • This affordable caption solution enhances accessibility for a diverse viewing audience.

What's in the box:

  • Caption Generator And Decoder
  • Link Electronics 10 Year Limited Warranty
