Link Electronics IP Caption Data & Audio Processor

SKU: LELEI592P MFR: LEI-592P
Earn VIP Reward Points

Key Features

  • Ensure reliable streaming with this IP caption data and audio processor.
  • Experience high video quality using our advanced encoding technology.
  • Enjoy easy integration with your current broadcast equipment setup.
  • Achieve low latency in your live streams for seamless viewer experience.
  • Benefit from good compatibility across various encoder and control systems.
  • Utilize strong security features to protect your valuable broadcast data.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Link Electronics Data & Audio Processor Specifications

  • Rear Panel: Ethernet

    RJ-45 Connection

  • Rear Panel: Stereo Audio

    Mini 3.5 mm Male Connector

  • Rear Panel: RS-232

    Connects to Encoder

  • Rear Panel: AC Connector

    Standard AC connector, 115 to 225 VAC

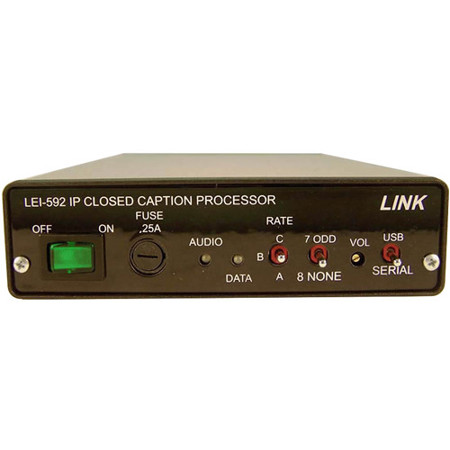

  • Front Panel: Power On/Off

    AC Power On or Off

  • Front Panel: Fuse

    250 mA Rating

  • Front Panel: Audio

    Audio Presence/Clipping Detection

  • Front Panel: Data

    Ethernet Data Sending/Receiving Detection

  • Front Panel: Rate

    9600, 2400, 1200

  • Front Panel: Parity

    7 Odd 1 or 8 None 1

  • Front Panel: Vol

    Audio Volume Level Control

  • Temperature

    0 Degree to 50 DegreeC Ambient

  • Humidity

    10% to 90% non-condensing

  • Power

    4.2 Watts

  • Dimensions (D x H x W)

    9.25 x 1.75 x 5.5" (23.50 x 4.45 x 13.97 cm)

  • Weight

    2.5 lbs (1.13 kg)

About Link Electronics Data & Audio Processor

The Link Electronics LEI-592P IP Caption Data & Audio Processor stands as a testament to the innovative and advanced technology in the realm of closed caption processing. This high-quality unit integrates IP captioning and audio within a single, durable device, eliminating the need for the conventional dual phone line setup. With the LEI-592P, users can bypass the necessity of purchasing a new internet-capable encoder or subscribing to a captioning service, making it a user-friendly and cost-effective solution.

Designed to connect seamlessly to an encoder via a serial RS232 interface, the LEI-592P also accepts analog program audio through a standard 3.5mm stereo mini jack. The processed audio is then transmitted from the unit's Ethernet port, while caption data is concurrently received, facilitating true IP captioning. To ensure smooth operation, the connected gateway router must be configured to forward two designated ports.

The LEI-592P is equipped with intuitive indicators, including a data LED that signals the receipt or transmission of data through the Ethernet, and an audio LED that monitors audio presence and alerts users to potential audio clipping, indicating when input audio levels are excessively high. This feature ensures the delivery of clear, uninterrupted audio for captioning purposes.

Captioners can receive audio on their computers using the complimentary LEI-592P Player, available for download on the Link Electronics website. This software allows for the input of the LEI-592P's IP address and port number, enabling a direct connection to the processor. The player software also provides options for selecting the audio output device, adjusting volume, and can be minimized to run unobtrusively in the background.

The LEI-592P boasts multiple selectable baud rates, including 1200, 2400, and 9600, and supports both 8-N-1 and 7-O-1 type serial data configurations. The audio is sampled at 16 KHz, surpassing the quality of standard Voice over Internet (VoIP) and ensuring that captioners receive superior audio with a latency of less than 200ms, plus internet latency, which can be fine-tuned via the audio player.

For secure and reliable operation, the LEI-592P allows for the configuration of IP address, port numbers, encryption, and password protection through an integrated web page, accessible via any standard web browser. This level of customization and security is essential for professional captioning environments.

The LEI-592P is backed by Link Electronics' exceptional technical support, including a standard 10-year warranty and access to 24/7 customer support. This commitment to service, combined with the processor's adherence to the high-performance, flexibility, and reliability standards of Link Electronics products, makes the LEI-592P an ideal choice for professionals seeking an innovative and user-friendly IP caption data and audio processing solution.

Link Electronics Data & Audio Processor Features

  • Audio and Data transmission
  • Caption over the Internet
  • Audio over the Internet
  • Eliminates Phone Lines
  • Serial input
  • Multiple baud rates
  • Data Send/Receive Detection
  • Volume Control
  • Works with most Closed Caption Encoders
  • Audio Presence/Clipping Detection

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Ensure reliable streaming with this IP caption data and audio processor.
  • Experience high video quality using our advanced encoding technology.
  • Enjoy easy integration with your current broadcast equipment setup.
  • Achieve low latency in your live streams for seamless viewer experience.
  • Benefit from good compatibility across various encoder and control systems.
  • Utilize strong security features to protect your valuable broadcast data.

What's in the box:

  • IP Caption Data & Audio Processor
  • Link Electronics 10 Year Limited Warranty
