27% Off

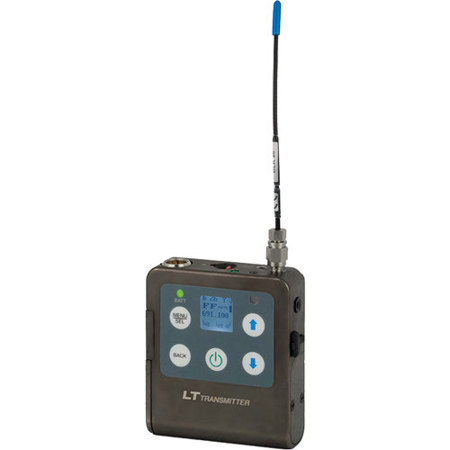

Lectrosonics LT Beltpack Transmitter, B1: 537.600 to 614.375MHz

SKU: LELTB1 MFR: LTB1
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Lectrosonics wireless transmitter.
  • Achieve reliable connectivity with a wide 537.600 to 614.375 MHz frequency range.
  • Enjoy extended battery life, up to 6 hours, using NiMH rechargeable batteries.
  • The LT beltpack transmitter offers ease of use with intuitive LCD interface.
  • Durable design ensures longevity; ideal for demanding audio environments.
  • Selectable RF power output (50 or 100mW) gives optimal wireless microphone range.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lectrosonics LT Specifications

  • Operating Frequencies

    537.600 - 614.375

  • Frequency Selection Steps

    Selectable; 100 kHz or 25 kHz

  • RF Power output

    Selectable: 50 or 100mW

  • Pilot tone

    25 to 32 kHz; 5 kHz deviation (Digital Hybrid mode)

  • Frequency Stability

    +/- 0.002%

  • Deviation

    +/- 75 kHz max. (Digital Hybrid mode)

  • Spurious radiation

    60 dB below carrier

  • Equivalent input noise

    -120 dBV (A-weighted)

  • Input level

    Mic: Nominal 2 mV to 300 mV, before limiting
    Greater than 1V maximum, with limiting
    Instrument: 1M Ohms high level

  • Input impedance

    2 kOhms

  • Input limiter

    DSP controlled, dual envelope "soft" limiter with greater than 30 dB range

  • Gain control range

    44dB; digital control

  • Modulation indicators

    Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation
    LCD bar graph

  • Frequency Response

    90 Hz to 20 kHz (+/-1dB)

  • Low frequency roll-off

    -12 dB/octave; 70 Hz

  • THD

    0.2% (typical)

  • Controls

    Top panel slide switch; programmable as power, mute, talkback or no (off) function
    Side panel membrane switches with LCD interface for power on/off and all setup and configuration controls

  • Audio Input Jack

    Switchcraft 5-pin locking (TA5F)

  • Antenna

    Galvanized steel, flexible wire

  • Battery

    Two AA; alkaline, lithium, NiMH rechargeable

  • Battery Life

    Duracell Quantum: 4.75 hours
    Eneloop 2400 mAH NiMH: 6 hours

  • Dimensions

    2.85 x 2.45 x .75" / 72.39 x 62.23 x 19.05mm

  • Weight

    5.9oz / 167.26g (with alkaline AA batteries)

  • UPC Code

    840014190324

About Lectrosonics LT

Let the Lectrosonics LT Beltpack Transmitter, operating within a wide frequency range of 537.600 to 614.375MHz, revolutionize your audio transmission experience. This high-quality, durable device is designed to deliver professional-grade features in a compact, portable package.

Ideal for a multitude of applications, from video production to theater, stage, and house of worship, this transmitter is compatible with all Digital Hybrid Wireless receivers and even some from other manufacturers. The LT Beltpack Transmitter can be conveniently configured to operate as a "one-touch" device with a single power on/off switch on the top panel, or with full access to all operational parameters using the side panel membrane switches and LCD interface.

The top panel switch can also be configured to provide a mute or talkback function, enhancing its versatility. Frequencies are selectable in 100 kHz or 25 kHz steps, yielding a total of up to 3072 available frequencies across three standard frequency blocks.

The LT Beltpack Transmitter is equipped with an IR port on the membrane panel for automatic setup when paired with an IR-enabled receiver. A USB port on the side panel facilitates easy firmware updates. The servo bias input accepts mic or line level signals with a wide range of gain adjustment in 1 dB steps, and a menu selectable instrument level input is available on the LCD.

Accurate LED indications on the top panel and a bar graph indicator on the LCD allow precise gain adjustments to be made for the maximum signal to noise ratio and minimum distortion. The limiter in the preamp can cleanly handle signal peaks over 30 dB above full modulation, allowing the input gain to be set high enough to achieve the maximum signal to noise ratio with no risk of overload distortion.

The unit is powered by two AA batteries or an optional battery eliminator that replaces the hinged battery door. The housing is machined from a solid aluminum billet, finished with an ultra-hard, black electroless nickel finish called ebENi, ensuring its reliability and durability.

The Lectrosonics LT Beltpack Transmitter employs a patented Digital Hybrid Wireless design that combines 24-bit digital audio with an analog FM radio link to provide outstanding audio quality and the extended operating range of the finest analog wireless systems. This unique design overcomes channel noise in a dramatically different way, digitally encoding the audio in the transmitter and decoding it in the receiver, yet still sending the encoded information via an analog FM wireless link. This proprietary algorithm is not a digital implementation of an analog compandor but a technique that can be accomplished only in the digital domain, even though the audio inputs and outputs are analog signals.

Experience the freedom of wireless audio transmission with the Lectrosonics LT Beltpack Transmitter, a compact, reliable, and high-quality solution for your audio needs.

Lectrosonics LT Features

  • High-quality Lectrosonics LT Beltpack Transmitter with wide frequency range of 537.600 to 614.375MHz
  • Compact, durable design with professional-grade features, ideal for video production, theater, stage, and house of worship
  • Configurable operational settings with "one-touch" power on/off switch and full access to parameters using side panel membrane switches and LCD interface
  • Patented Digital Hybrid Wireless design combining 24-bit digital audio with an analog FM radio link for outstanding audio quality and extended operating range
  • Equipped with IR port for automatic setup with IR-enabled receivers and USB port for easy firmware updates
  • Servo bias input accepting mic or line level signals with wide range of gain adjustment, complemented by accurate LED indications and bar graph indicator on LCD for precise gain adjustments

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior sound quality with this Lectrosonics wireless transmitter.
  • Achieve reliable connectivity with a wide 537.600 to 614.375 MHz frequency range.
  • Enjoy extended battery life, up to 6 hours, using NiMH rechargeable batteries.
  • The LT beltpack transmitter offers ease of use with intuitive LCD interface.
  • Durable design ensures longevity; ideal for demanding audio environments.
  • Selectable RF power output (50 or 100mW) gives optimal wireless microphone range.

What's in the box:

  • Lectrosonics Belt Pack Transmitter with Instrumental Input
  • 2x AA & Alkaline & Lithium & NiMH Rechargeable Batteries
  • Lectrosonics 1 Year Limited Warranty
