Lectrosonics MTCR Miniature Time Code Recorder with M152/5P Lavalier Microphone

SKU: LEMTCR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What file format does the MTCR Miniature Time Code Recorder with M152/5P Lavalier Microphone record in?

The MTCR records in the industry-standard .wav (BWF) file format, ensuring compatibility with virtually any audio or video editing software.

Can the MTCR recorder be used as a backup audio source?

Yes, the MTCR recorder can be tethered to a camera to serve as a source for high-quality or backup audio recordings.

What kind of microphones can be connected to the MTCR recorder?

The MTCR is equipped with an industry-standard TA5M jack that accepts both mic and line-level signals, and provides bias voltage to power a wide array of electret lavalier microphones.

How user-friendly is the MTCR recorder?

The MTCR features a user-friendly interface with a keypad and LCD for straightforward setup and adjustment.

Is the MTCR recorder durable?

Yes, the MTCR recorder is housed in a robust aluminum billet for enhanced durability, making it suitable for field production.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lectrosonics MTCR Specifications

Recording

Recording

Jump to...
  • Storage media

    microSDHC memory card

  • File format

    .wav files (BWF - Broadcast Wave File)

  • A/D converter

    24-bit

  • Sampling rate

    48 kHz

  • Recording modes/Bit rate

    HD mono mode: 24 bit - 144 kbytes/s
    32 bit - 192 kbytes/s
    Split gain mode: 24 bit - 288 kbytes/s
    32 bit - 384 kbytes/s

  • Type

    Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones

  • Input level

    Dynamic mic: 0.5 mV to 50 mV
    Electret mic: Nominal 2 mV to 300 mV
    Line level: 17 mV to 1.7 V

  • Input connector

    TA5M 5-pin male

Headphone Jack

Jump to...
  • Connector

    3.5 mm mini jack; TRS

  • Maximum level

    -3 dBu (575 mV RMS)

Audio Performance

Jump to...
  • Frequency response

    20 Hz to 20 kHz; +0.5/-1.5 dB

  • Dynamic range

    110 dB (A), before limiting

  • Distortion

    < 0.035%

Timecode

Jump to...
  • Connector

    5-pin LEMO

  • Signal voltage

    0.5 Vp-p to 5Vp-p

  • Input impedance

    10 k Ohms

  • Format

    SMPTE 12M - 1999 compliant

Battery Power/Life

Jump to...
  • Power consumption

    300 mW

  • Battery type

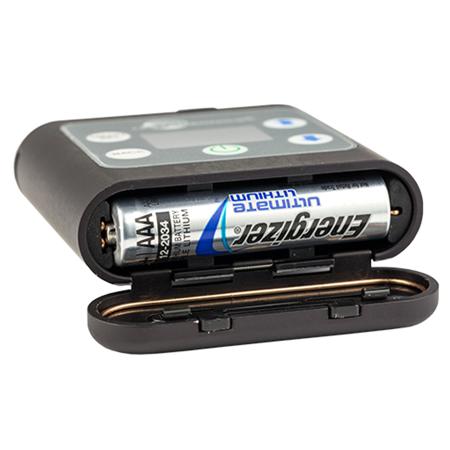

    AAA Lithium non-rechargeable (recommended)

  • AAA Lithium

    6.5 hours typical

Environment

Jump to...
  • Operating temperature range

    -5 to 122 Degree F (-20 to 50 Degree C)

Physical

Jump to...
  • Dimensions (H x W x D)

    2.37 x 2.14 x 0.67" (60 x 54 x 17mm)

  • Weight

    2.5 oz (71g) with AAA Lithium battery

About Lectrosonics MTCR

Let the Lectrosonics MTCR Miniature Time Code Recorder with M152/5P Lavalier Microphone revolutionize your audio recording experience in film and video production. This compact and durable device is engineered to capture professional-grade audio, perfectly synchronized with timecode, even when wireless microphones are impractical or the subject is out of range.

The MTCR's diminutive size makes it virtually invisible, allowing for discreet placement within garments and costumes, or as a hidden "plant" microphone to record ambient or location-specific sounds. Its innovative design ensures that, once synced with timecode at the start of production, the audio track can be seamlessly and accurately integrated into the video timeline.

Crafted for compatibility, the MTCR records in the industry-standard .wav (BWF) file format, ensuring easy integration with virtually any audio or video editing software. For scenarios demanding a direct connection, the recorder can be tethered to a camera, serving as a source for high-quality or backup audio recordings.

Equipped with the industry-standard TA5M jack, the MTCR accepts both mic and line-level signals, and provides bias voltage to power a broad array of electret lavalier microphones. This high-quality input connection is fully compatible with microphones pre-wired for use with Lectrosonics' professional wireless microphone transmitters, offering versatility and ease of use.

The user-friendly interface, featuring a keypad and LCD, allows for straightforward setup and adjustment, while the robust aluminum billet housing, a hallmark of Lectrosonics' mechanical design, ensures the recorder withstands the rigors of field production. Choose the MTCR Miniature Time Code Recorder with M152/5P Lavalier Microphone for an innovative, high-quality audio recording solution that is both user-friendly and reliable.

Lectrosonics MTCR Features

  • Professional quality digital audio recordings in Broadcast Wave Format
  • Ultra compact size for easy concealment
  • Records to microSDHC memory cards
  • Wide range input gain adjustment for mic to line level signals
  • Time code jam/sync from external source
  • Standard Lectrosonics TA5M input jack
  • Lectrosonics "servo bias" input preamp
  • Solid machined aluminum construction
  • Over six hours of operation on a single AAA lithium battery

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Equipped with industry-standard TA5M jack, accepting both mic and line-level signals
  • User-friendly setup and adjustment interface featuring a keypad and LCD
  • Robust aluminum billet housing for enhanced durability in field production

What's in the box:

  • MTCR Miniature Time Code Recorder
  • M152/5P Lavalier Microphone
  • AAA Alkaline Battery
  • MicroSDHC Memory Card
  • Beltclip
  • User Manual
  • Lectrosonics 1 Year Limited Warranty
