Review Summary
Intel Core Ultra 5 225 3.3GHz, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache
AI PC
Integrated Intel AI Boost, up to 13 TOPS
Integrated Intel Graphics
Intel Q870 Chipset
1x 16GB UDIMM DDR5-5600
Four DDR5 UDIMM slots, dual-channel capable
Up to 128GB DDR5
512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD
3.5" HDD up to 2TB
2.5" HDD bay is only for customer self upgrade
M.2 SSD up to 2TB each
No
No Card Reader
DVD +/-RW
High Definition (HD) Audio, Realtek ALC623-CG codec
1x 1W
260W 90%
USB Traditional Keyboard, Black, English
USB Calliope Mouse, Black
2nd M.2 Bracket + 2.5" HDD Bracket
One PCIe 4.0 x16, low-profile, length <= 155mm, height <= 70mm
Two PCIe 3.0 x1, low-profile, length <= 155mm, height <= 70mm
Three M.2 slots (one for WLAN, two for SSD)
Vertical Stand
No
Pen Not Supported
SFF (8.2L)
Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
WWAN Not Supported
Integrated 100/1000M
1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On and USB Always On
1x HDMI 2.1 TMDS
2x DisplayPort 1.4a (HBR3, DSC)
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
No fingerprint reader
Kensington Security Slot, 3 x 7mm, Padlock Loop
No
No
No
Non-vPro
ENERGY STAR 9.0, TCO Certified 10, ErP Lot 3, GREENGUARD, RoHS compliant
MIL-STD-810H military test passed (Low Pressure (Altitude), High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
Windows 11 Pro
Black
China
3.6 x 11.8 x 13.4" (92.5 x 299.7 x 339.5mm)
11.2 lbs (5.1kg)
199271462270
Compact Power, Limitless Efficiency
Drives Business Performance & Productivity

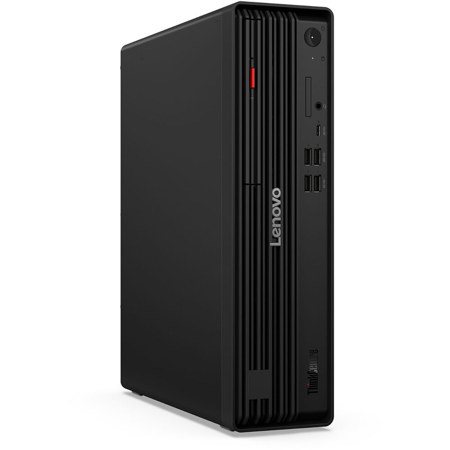

Powered by Intel Core Ultra 5 225 processor, the ThinkCentre M70s Gen 6 small form factor (SFF) PC is ideal for running complex software, multitasking with multiple applications, or streaming high-definition content.
Enhanced Productivity & Creativity
AI Support for Efficient Workflow
Lenovo AI Now is an AI assistant enhancing productivity and creativity, delivering personalized experiences. It leverages AI features like knowledge management, document summarization, and device control, prioritizing data privacy, and security.
Expand Your Visual Space
Seamlessly Connect to External Monitors
Take multitasking to the next level with triple display capability - 2 display ports and 1 HDMI port. Experience brilliant visual clarity - spread out your projects, track multiple activities, and boost efficiency with a setup that keeps everything in view and at your fingertips.
All The Ports, All The Possibilities
Stream, Charge & Connect With Ease
Maximize connectivity with the ThinkCentre M70s Gen 6 SFF PC's four rear USB ports, delivering high-speed data transfers, seamless video streaming, and efficient device charging. Connect multiple peripherals while keeping your workspace organized.
Streamline Power, Boost Productivity
Accelerate Your Tasks at Blazing Speeds
Elevate your workflow with seamless device charging and blazing-fast connectivity. The ThinkCentre M70s Gen 6 SFF PC simplifies your day with high-speed data transfer ports, ensuring your peripherals and devices stay powered whenever you need them.
Adaptability That Matches Your Goals
Tackle Demanding Tasks With More Storage
Experience unmatched speed and flexibility with dual slots to expand storage. Boot in seconds, load applications instantly, and transfer files at lightning speed. Stay ahead of growing demands, equipping you to tackle data-heavy tasks effortlessly.
Privacy and Protection
Security Like Your Business Depends On It
Enjoy maximum security with ThinkShield - including Trusted Platform Module (TPM) for hardware solutions and self-healing BIOS to restore earlier system settings. Secure your PC physically with the padlock loop, optional chassis e-lock, and more.
