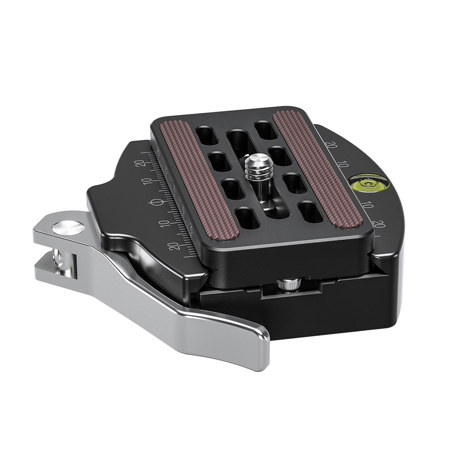

Leofoto LR-70 Lever Release Clamp with QP-70N Quick Release Plate

The Leofoto LR-70 is constructed from solid aircraft grade aluminum and hard anodized for the maximum strength and durability. This clamp features a lever release for quick and easy attach/detach and adjustments.

Additionally, the clamp features a side-mounted width adjustment mechanism, operated by inserting an Allen wrench to precisely adjust the clamp's opening for different Arca-Swiss standards.

The convenience of switching cameras and supports with the throw of a lever is even higher. The time savings afforded by the quick attachment can sometimes make a time-priority image capture possible. Low Profile: The lever does not protrude above or below the top or bottom of the clamp, and, in the closed position, the lever closely hugs the contours of the clamp.

New designed locking system
Composed of 3 sets of tightly overlapped domes and 1 pc brass washer, which is super strong and durable. The clamp can hold 25kg when the lever is fully locked. Extra width of jaw for preventing the lever from twisting and hiding the lever partially for better look.

Faster and easier installing and removing
The locking lever has a full range of motion, but essentially stops (pressure reduces) in three positions - open, half-way and locked. With the lever in the half-way position, the clamp is tight enough so that the plate cannot be lifted directly out of the top of the clamp, but the plate freely slides within the clamp for adjustment purposes. Note that in this position, the plate will slide completely out of the clamp if safety stop screws are not installed in the plate.
