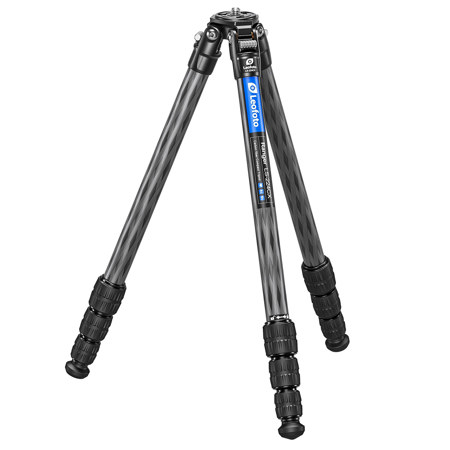

Leofoto LS-224CX Ranger 4-Section Carbon Fiber Tripod with LH-25 Ball Head

SKU: LEOLS224CXLH MFR: LS-224CX+LH-25
Earn VIP Reward Points

Key Features

  • Achieve stable, vibration-free shots with this durable carbon fiber tripod, perfect for sharp images.
  • Its lightweight, portable design makes this travel tripod an ideal companion for any adventure.
  • Enjoy quick setup and adjustments, ensuring you never miss a moment with this efficient camera tripod.
  • Experience versatile height options, adapting effortlessly to various shooting environments and creative angles.
  • Benefit from smooth adjustments with the included LH-25 ball head, enhancing your photographic precision.
  • Capture breathtaking landscapes or detailed close-ups with this reliable and sturdy Leofoto tripod.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Leofoto LS-224CX+LH-25 Specifications

General

General

Jump to...
  • Color

    Black

  • Load Capacity

    13.2 lbs (6kg)

  • Maximum Working Height

    44.8" (113.7cm)

  • Center Column

    No

  • Minimum Working Height

    5.8" (147mm)

  • Closed Length

    18.62" (473mm)

  • Accessory Mounting

    1x 1/4"-20 Female Thread

  • Bubble Level

    No

  • Detachable Monopod

    No

  • Country of Origin

    China

  • Head Mount Type

    3/8"-16 Male

  • Primary Material

    Carbon Fiber

  • Leg Lock

    Twist Lock

  • Leg Sections

    4

  • Independent Leg Spread

    Yes

  • Leg Positions

    Locking 3 Positions And Continuously Adjustable

  • Leg Tube Diameter

    Leg 1: 0.87" (22mm)
    Leg 2: 0.75" (19mm)
    Leg 3: 0.63" (16mm)
    Leg 4: 0.51" (13mm)

Pan & Tilt

Jump to...
  • Drag Control

    No

  • Independent Pan Lock

    No

  • Independent Tilt Lock

    No

  • Vertical Tilt

    90 Degree

Physical Details

Jump to...
  • Weight

    1.98 lbs (898.1g)

  • Dimensions

    Head: Base Diameter: 1.4" (36mm)

  • UPC Code

    6940828314092

About Leofoto LS-224CX+LH-25

The brand new version of the Ranger Series, the Leofoto LS-224CX Carbon Fiber Tripod improves upon the classic Leofoto Ranger Series tripods with the latest technology. This model features angle stops have also been improved to be more ergonomic. This new angle stop design allows for one handed operation for convenience. This tripod features a convertible mounting stud which can change to either 1/4th or 3/8th and there is a 1/4th accessory mounting socket on the bottom of the fixed apex/platform. (Apex/platform diameter is around 45mm/1.77in)

• Arca-Compatible LH-25 Low-Profile Ball Head with PU-25 QR Plate
• Three Angle Stops: 23-, 55-, and 85 Degree
• 1/4"-20 threaded Accessory Socket for Monitor, Microphone, LED light or More
• Removable Ballast Hook
• Interchangeable Feet (1/4")

Leofoto tripods features 10x carbon fiber tubes that make the tripod lightweight while maintaining a strong load capacity. The 6061 aluminum parts are CNC machined and hard anodized, making the surface tough against scratching and scuffing. The twist leg lock system is quickly deployed with a simple quarter turn. With the tripod's three variable leg angles, it allows you to splay the legs completely out, so the support can drop to a very low minimum height.

The included Leofoto DC-222C Carbon Fiber Add-On Column is an adjustable, two-section center column extension for tripods and monopods. Made up of two lightweight yet durable 10-layer carbon fiber, the DC-222C adds from 7.8 to 12.5" in height and is suitable for use with supports that have a load capacity of up to 17.6 lb. The column base has a diameter of 1.14" and an integrated 3/8"-16 threaded socket, and the top platform features a spring-loaded 3/8"-16 threaded tip that can be slid down to reveal a 1/4"-20 threaded tip, making it compatible with virtually any tripod head.

Made of aluminum with an anodized finish for durability, the Leofoto LH-25 Mini Ball Head uses a screw-knob clamp and features a compact design, which makes it easy to travel with and use.

Leofoto LS-224CX+LH-25 Features

  • Arca-compatible LH-25 ball head with PU-25 quick release plate
  • 10x carbon fiber with CNC-machined 6061 aluminum construction
  • One-handed angle stops with 23 Degree, 55 Degree and 85 Degree leg positions
  • DC-222C carbon fiber center column adds 7.8 to 12.5" height
  • Convertible 1/4" & 3/8" mount with 1/4"-20 accessory socket

Key Features

  • Achieve stable, vibration-free shots with this durable carbon fiber tripod, perfect for sharp images.
  • Its lightweight, portable design makes this travel tripod an ideal companion for any adventure.
  • Enjoy quick setup and adjustments, ensuring you never miss a moment with this efficient camera tripod.
  • Experience versatile height options, adapting effortlessly to various shooting environments and creative angles.
  • Benefit from smooth adjustments with the included LH-25 ball head, enhancing your photographic precision.
  • Capture breathtaking landscapes or detailed close-ups with this reliable and sturdy Leofoto tripod.

What's in the box:

  • Leofoto LS-224CX Ranger 4-Section Carbon Fiber Tripod
  • LH-25 Ball Head
  • Quick Release Plate
  • DC-222C Carbon Fiber Add-On Column
  • Carrying Case
  • 3/8" to 1/4" Bushing Reducer
  • Leofoto Lifetime Limited Warranty
