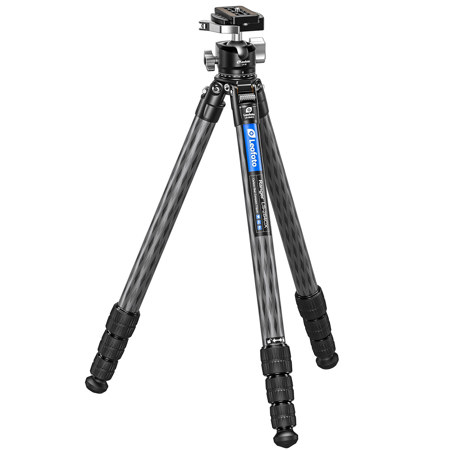

Leofoto LS-284C X Ranger 4-Section Carbon Fiber Tripod with LH-30LR Ball Head

SKU: LEOLS284CXLH MFR: LS-284CX+LH-30LR
Earn VIP Reward Points

Key Features

  • Capture stable, steady shots with this durable carbon fiber tripod, perfect for sharp photos.
  • Enjoy quick setup and smooth adjustments with the included LH-30LR ball head for effortless framing.
  • Its lightweight, portable design makes this 4-section tripod an ideal companion for travel photography.
  • Achieve versatile height options, from 6.3" to 67.72", for diverse photographic perspectives.
  • Rely on the robust 22 lbs load capacity, securely supporting your camera gear with confidence.
  • Experience professional-grade stability for all your photography adventures, from landscapes to portraits.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Leofoto LS-284CX+LH-30LR Specifications

General

General

Jump to...
  • Color

    Black

  • Load Capacity

    22 lbs (10kg)

  • Maximum Working Height

    67.72" (172cm)

  • Center Column

    Yes

  • Max Height without Center Column

    55.1" (1400mm)

  • Max Height with Center Column

    67.72" (172cm)

  • Minimum Working Height

    6.3" (160mm)

  • Closed Length

    22.05" (56cm)

  • Accessory Mounting

    1x 1/4"-20 Female Thread

  • Bubble Level

    No

  • Detachable Monopod

    No

  • Country of Origin

    China

  • Head Mount Type

    3/8"-16 Male

  • Primary Material

    Carbon Fiber

  • Leg Lock

    Twist Lock

  • Leg Sections

    4

  • Independent Leg Spread

    Yes

  • Leg Positions

    3 Positions

  • Leg Tube Diameter

    Leg 1: 1.1" (28mm)
    Leg 2: 0.98" (25mm)
    Leg 3: 0.87" (22mm)
    Leg 4: 0.75" (19mm)

Pan & Tilt

Jump to...
  • Drag Control

    Yes

  • Independent Pan Lock

    Yes

  • Independent Tilt Lock

    Yes

  • Vertical Tilt

    90 Degree

  • Lateral Tilt

    No

Physical Details

Jump to...
  • Weight

    3.22 lbs (1.46kg)

  • Dimensions

    Base (Dia. x H): 1.85 x 2.9" (4.70 x 7.4cm)

  • UPC Code

    6940828311251

About Leofoto LS-284CX+LH-30LR

The brand new version of the Ranger Series, the Leofoto LS-284CX Carbon Fiber Tripod improves upon the classic Leofoto Ranger Series tripods with the latest technology. This model features angle stops have also been improved to be more ergonomic. This new angle stop design allows for one handed operation for convenience. The Ranger Series has always been known for it's simplicity and compact size and weight.

• Three Angle Positions: 23-, 55-, and 85 Degree
• 1/4"-20 threaded Accessory Socket for Monitor, Microphone, LED light or More
• Interchangeable Feet (3/8")
• Improved Ergonomic Angle Stops
• 1/4"-20 threaded Accessory Socket
• Rubber Feet (3/8") and Interchangeable Spikes

Leofoto tripods feature light weight carbon fiber tubes to reduce weight while maintaining a high load capacity. The T6-6061 grade aluminum hardware is CNC machined and hard anodized, creating a durable and scratch resistant setup. The standard twist leg lock system can be quickly deployed with a quarter turn. With the tripod's variable leg angle positions, the tripod can be completely spread out, so the support can drop to a very low minimum height.

The included Leofoto DC-282C Carbon Fiber Add-On Column is an adjustable, two-section center column extension for tripods and monopods. Made up of two lightweight yet durable 10-layer carbon fiber, the DC-282C adds from 7.8 to 12.5" in height and is suitable for use with supports that have a load capacity of up to 35.2 lb. The column base has a diameter of 1.5" and an integrated 3/8"-16 threaded socket, and the top platform features a spring-loaded 3/8"-16 threaded tip that can be slid down to reveal a 1/4"-20 threaded tip, making it compatible with virtually any tripod head.

The Leofoto LH-30LR Lever-Release Ball Head is a great support solution in a small form factor for all general photography, and will give you fast and accurate control and solid support of your camera or lens. Aiming and horizon leveling can be accomplished as one instinctive motion, and rigid lockup takes just a quick twist of one control. Since the ball head profile is smaller and lacks the protruding handles, they are also much easier to carry and pack. These are no-nonsense heads with robust capacity, offering minimal weight and elegant simplicity.

They excel as ground-level macro tools, but also as super light heads for backpacking, travel, and table top use. The head features a single ball locking knob while the panning base has a separate lock and is laser-engraved in 2.5-degree increments from 0-360 degrees for accurate repeatability. What differentiates the LH-LR is the lever release clamp which allows quick attach and de-attach versus a knob clamp that allows for maximum clamping force.

Leofoto LS-284CX+LH-30LR Features

  • LH-30LR lever-release ball head for fast, secure camera mounting
  • DC-282C carbon fiber center column adds 7.8 to 12.5" height
  • Three leg angles: 23 Degree, 55 Degree and 85 Degree with ergonomic angle stops
  • Lightweight carbon fiber with CNC-machined T6-6061 aluminum
  • 1/4"-20 accessory socket and interchangeable 3/8" feet & spikes

Key Features

  • Capture stable, steady shots with this durable carbon fiber tripod, perfect for sharp photos.
  • Enjoy quick setup and smooth adjustments with the included LH-30LR ball head for effortless framing.
  • Its lightweight, portable design makes this 4-section tripod an ideal companion for travel photography.
  • Achieve versatile height options, from 6.3" to 67.72", for diverse photographic perspectives.
  • Rely on the robust 22 lbs load capacity, securely supporting your camera gear with confidence.
  • Experience professional-grade stability for all your photography adventures, from landscapes to portraits.

What's in the box:

  • Leofoto LS-284C X Ranger 4-Section Carbon Fiber Tripod with Ball Head
  • LH-30LR Ball Head
  • Quick Release Plate
  • DC-282C Carbon Fiber Add-On Column
  • Carrying Case
  • Leofoto Lifetime Limited Warranty
